Description:

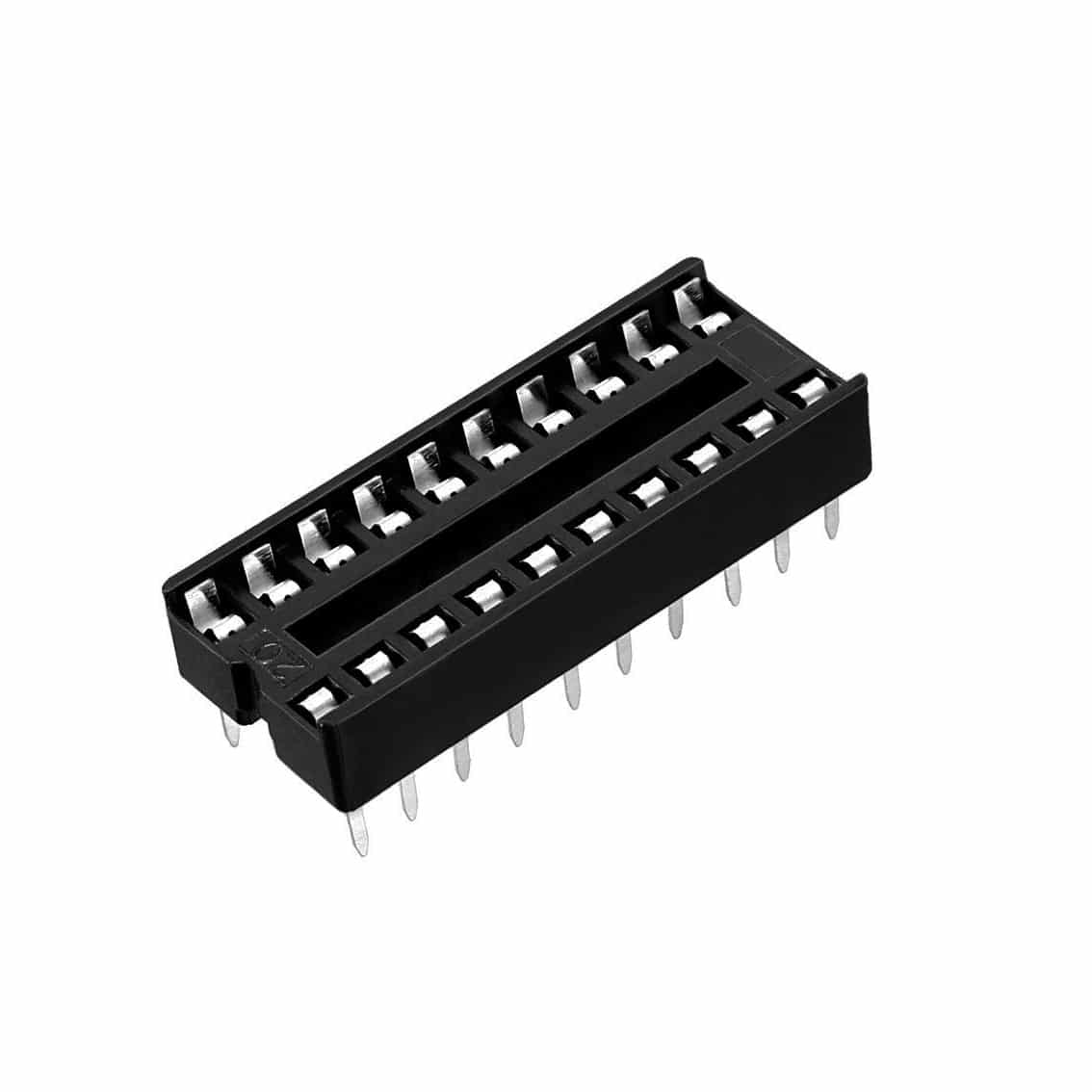

The 20 Pin 0.3 Inch DIL IC Socket – Pack of 5 provides a practical and protective solution for mounting dual in-line package (DIL) ICs with 20 pins. Designed with a standard 0.3 inch (7.62 mm) row spacing and 2.54 mm pin pitch, these sockets are ideal for use with through-hole PCBs and breadboards. They allow for easy insertion and removal of ICs, which reduces the risk of heat damage during soldering and enables quick replacement or prototyping adjustments.
Built using thermally stable and durable plastic housing, the sockets are fitted with tin- or gold-plated phosphor bronze contacts to ensure long-lasting conductivity and corrosion resistance. These sockets are frequently used in educational kits, hobby electronics, and professional PCB assemblies where flexibility and IC protection are key. This 5-pack provides a cost-effective way to enhance circuit reliability and simplify maintenance.
Specifications:
- Pin Count: 20 pins
- Socket Type: Dual In-Line (DIL)
- Row Spacing: 7.62 mm (0.3 inch)
- Pin Pitch: 2.54 mm
- Mounting Type: Through-Hole
- Contact Material: Phosphor Bronze
- Contact Plating: Tin or Gold (varies by batch)
- Housing Material: Thermoplastic/PBT UL94V-0
- Insertion Force: Low or standard (depending on manufacturer)
- Operating Temperature: -40°C to +105°C
- Pack Size: 5 sockets
Features:
- Provides removable mounting for 20-pin DIP ICs
- Protects ICs from soldering heat and mechanical damage
- Standard pitch compatible with most prototyping boards
- Reliable electrical contact with plated phosphor bronze pins
- Ideal for circuit development, testing, and repairs
Contents:
- 5 x 20 Pin 0.3 Inch DIL IC Sockets
