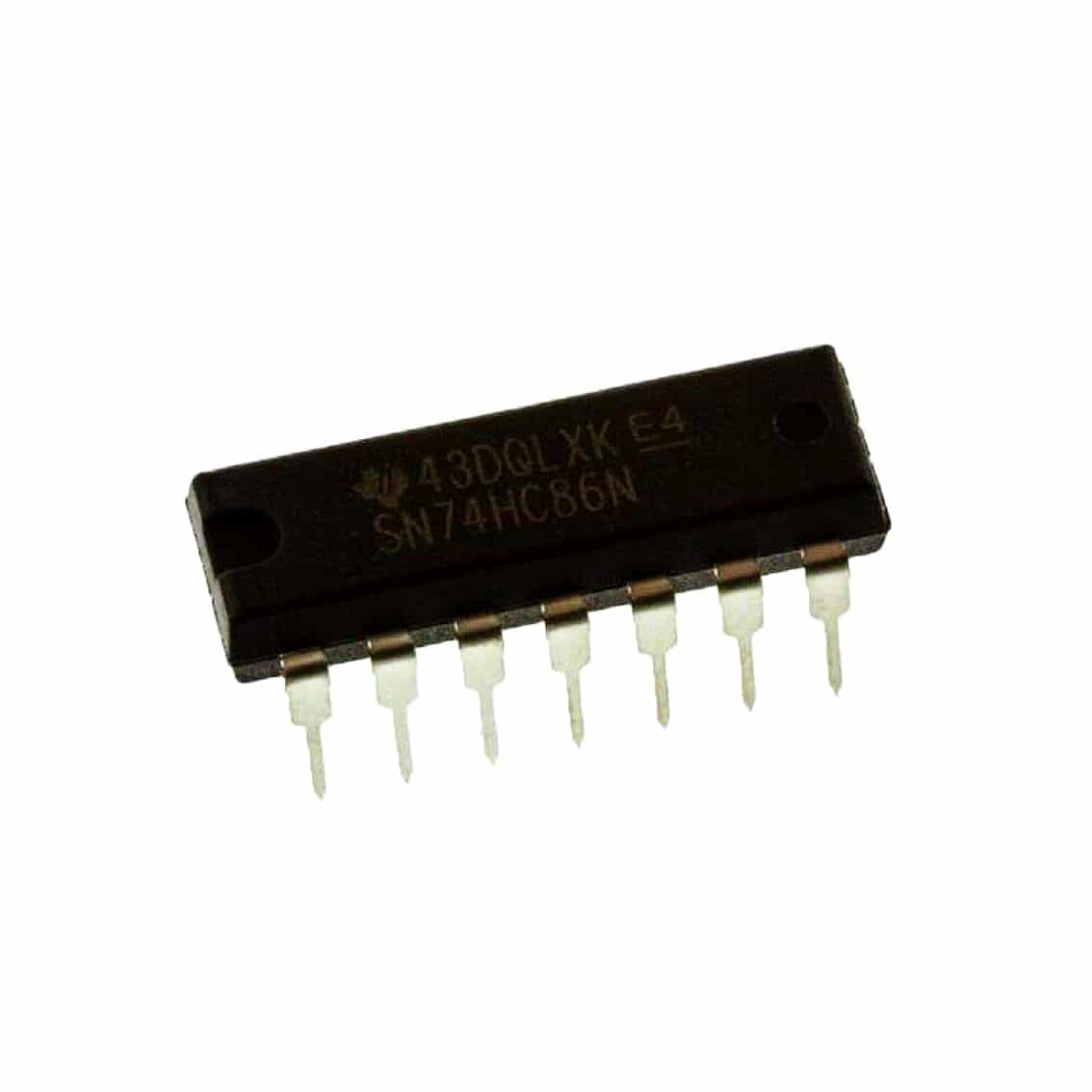

SN74HC86N Quad Exclusive or Gate IC – Pack of 5

39 people have recently viewed this product!

SN74HC86N Quad Exclusive or Gate IC – Pack of 5

Pack of 5 SN74HC86N ICs with four 2-input XOR gates per chip. DIP14 format, ideal for digital logic circuits, prototyping, and educational use.

$14.95

Order Within –

All stock located in Australia.

Availability: 26 in stock

EXPRESS SHIPPING Available.

SKU: PHI1001429

Description:

The SN74HC86N is a high-speed CMOS logic IC containing four independent 2-input Exclusive-OR (XOR) gates in a DIP14 package. As a member of the 74HC family, it delivers fast switching times, low power consumption, and compatibility with TTL and CMOS logic levels. It’s a versatile component in digital logic circuits where parity checks, control logic, or bitwise comparisons are required.

Each chip is housed in a standard through-hole DIP package, making it suitable for breadboarding, prototyping, and educational applications. This pack of 5 is ideal for electronics enthusiasts, schools, and embedded developers looking for dependable and easy-to-use logic gate ICs.

Specifications:

  • Logic Type: Quad 2-input XOR (Exclusive-OR) gate
  • IC Family: 74HC
  • Package Type: DIP-14 (Dual In-Line Package)
  • Number of Gates: 4
  • Input Type: CMOS
  • Output Type: CMOS
  • Supply Voltage Range: 2V – 6V
  • Typical Propagation Delay: ~18 ns at 5V
  • Operating Temperature: -40°C to +85°C
  • Mounting Type: Through-hole

Features:

  • Four XOR gates in a single DIP14 IC
  • High-speed CMOS logic with low power drain
  • TTL-compatible inputs for flexible interfacing
  • Standard dual in-line package for easy prototyping
  • Perfect for digital circuits and logic training kits

Contents:

  • 5 x SN74HC86N XOR Gate ICs (DIP14)
Weight 0.004 kg
Dimensions 70 × 15 × 45 mm
Brand

Type

Operating Voltage

Package / Case

Mounting Type

Pins

14
