0.28 Inch Blue Digital DC Voltmeter – 2.5V – 30V Range

22 people have recently viewed this product!

0.28 Inch Blue Digital DC Voltmeter – 2.5V – 30V Range

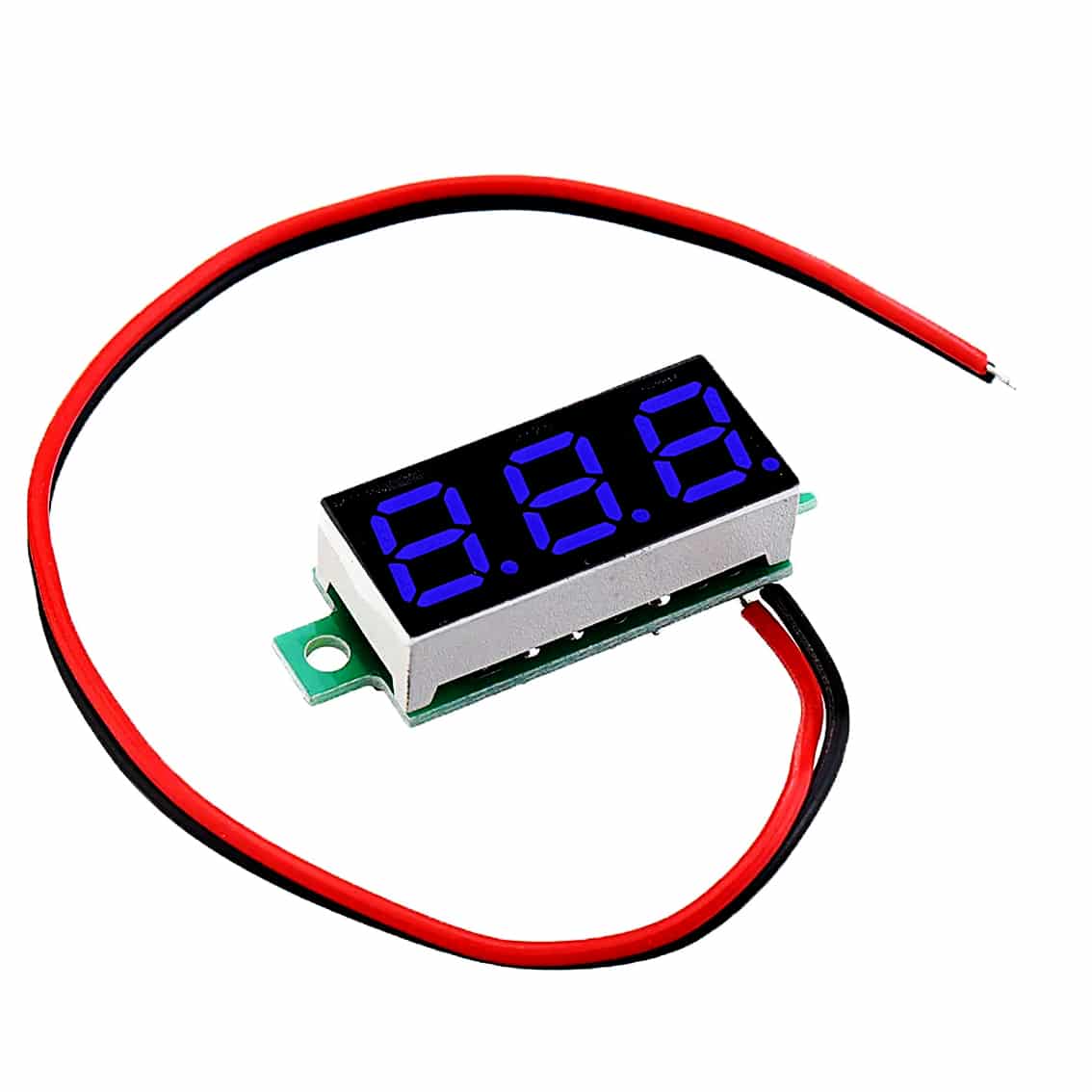

The 0.28 Inch Blue Digital DC Voltmeter can measure and display voltages from 2.5V up to 30V.

$15.95

Order Within –

Availability: 8 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002191

You May Also Like...

Description:

The 0.28 Inch Blue Digital DC Voltmeter can measure and display voltages from 2.5V up to 30V.

The wiring of the module is easy with the 2 Red and black wires, Red being positive and the black negative. With the added peace of mind that the unit is reverse connection protected.

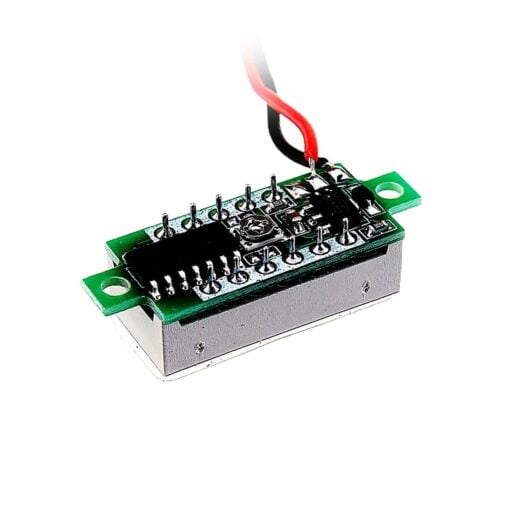

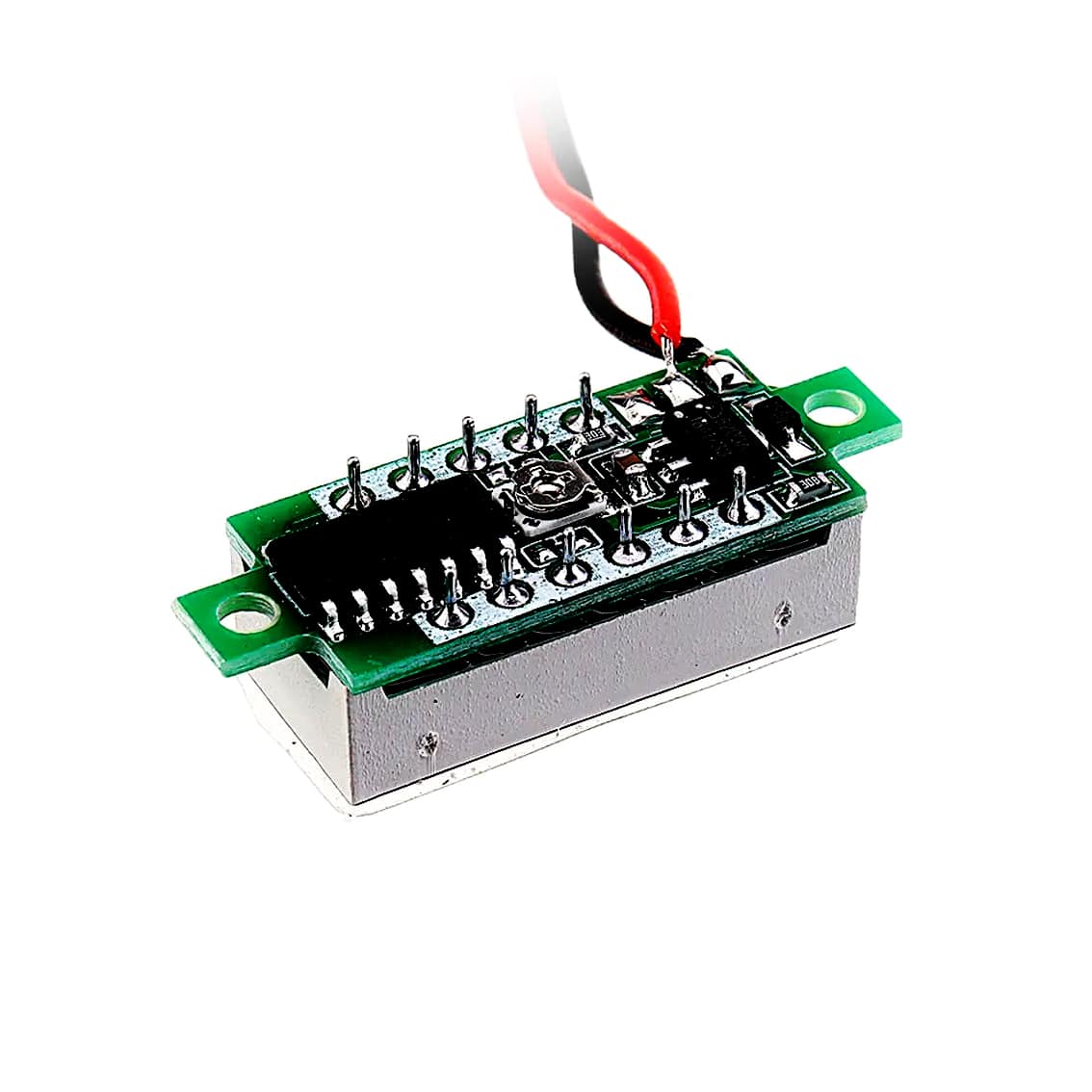

There is a trimmer potentiometer at the back for calibrating the voltage display.

Specifications:

  • Detecting voltage: 2.5VDC – 30VDC
  • Operating LED Voltage: 3.2V – 30V
  • Working current: <30 mA
  • Detection rate: ≥ 200 mS
  • Accuracy: 3%
  • Input resistance: >50KΩ
  • Display colour: Blue
  • Dimensions: 30mm x 11.5mm x 9mm



Contents:

  • 1 x 0.28 Inch Blue Digital DC Voltmeter – 2.5V – 30V DC Range
Weight 0.004 kg
Dimensions 100 × 5 × 60 mm
Brand

Power Module Type

Power Module Attributes

,

Colour

Input Voltage

Maximum Input Current

Detection Rate

Accuracy

Input Resistance
