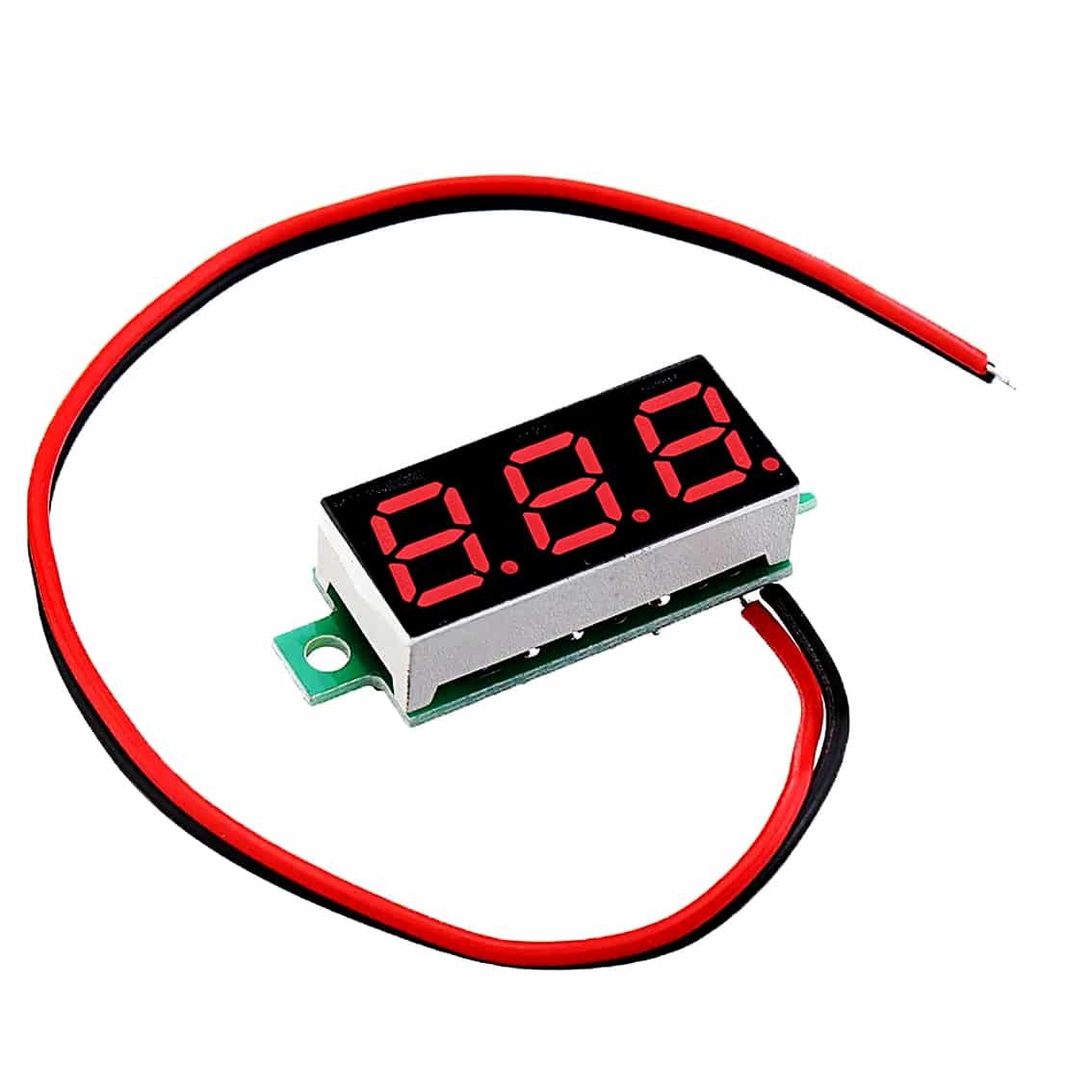

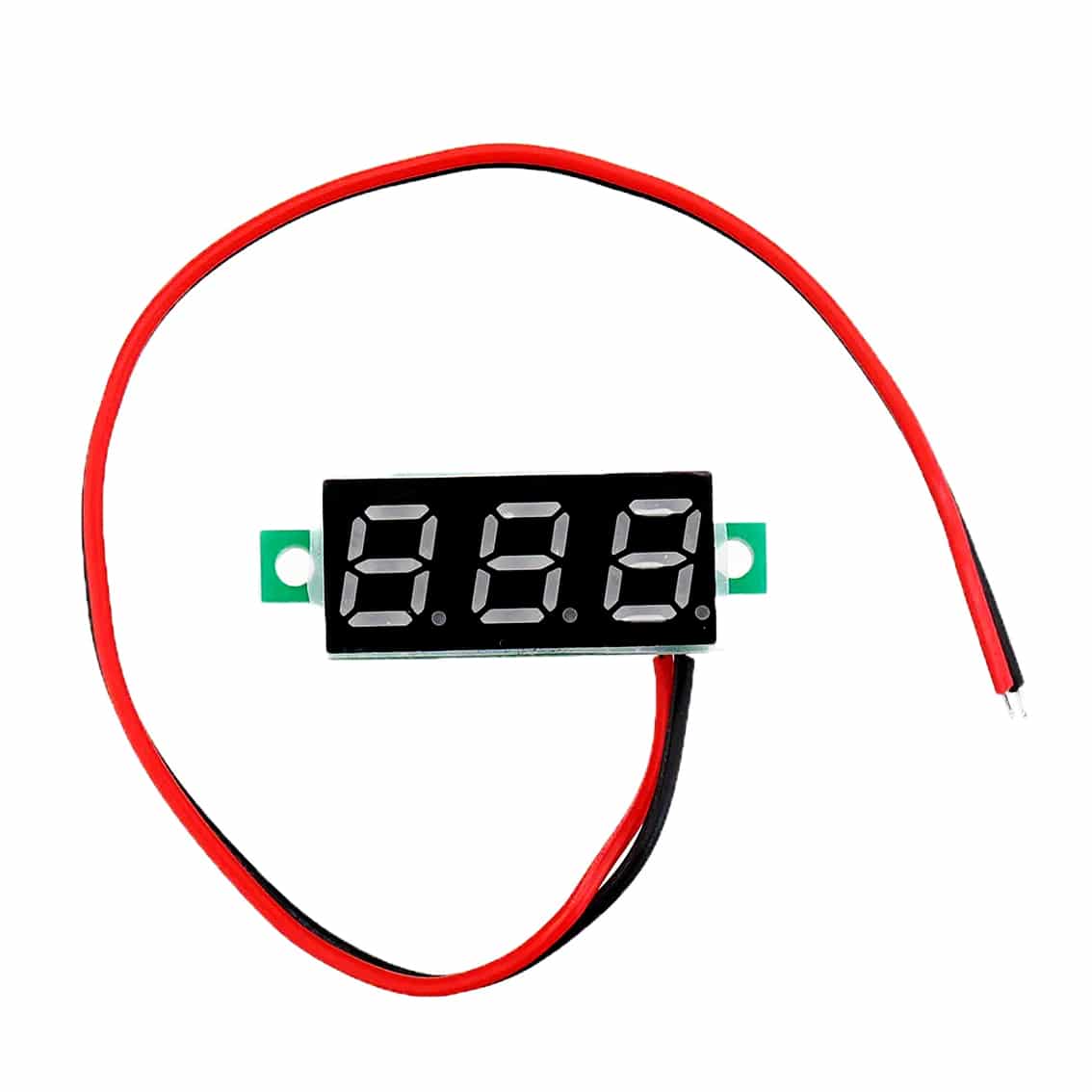

0.28 Inch Red Digital DC Voltmeter – 2.5V – 30V Range
The 0.28 Inch Red Digital DC Voltmeter can measure and display voltages from 2.5V up to 30V.
The wiring of the module is easy with the 2 red and black wires, red being positive and the black negative. With the added peace of mind that the unit is reverse connection protected.
- Detecting voltage: 2.5VDC – 30VDC
- Working current: <30 mA
- Detection rate: ≥ 200 mS
- Accuracy: 3%
- Input resistance: >50KΩ
- Display colour: Red
- Dimensions: 30mm x 11.5mm x 9mm
- 1 x 0.28 Inch Red Digital DC Voltmeter – 2.5V – 30V DC Range
