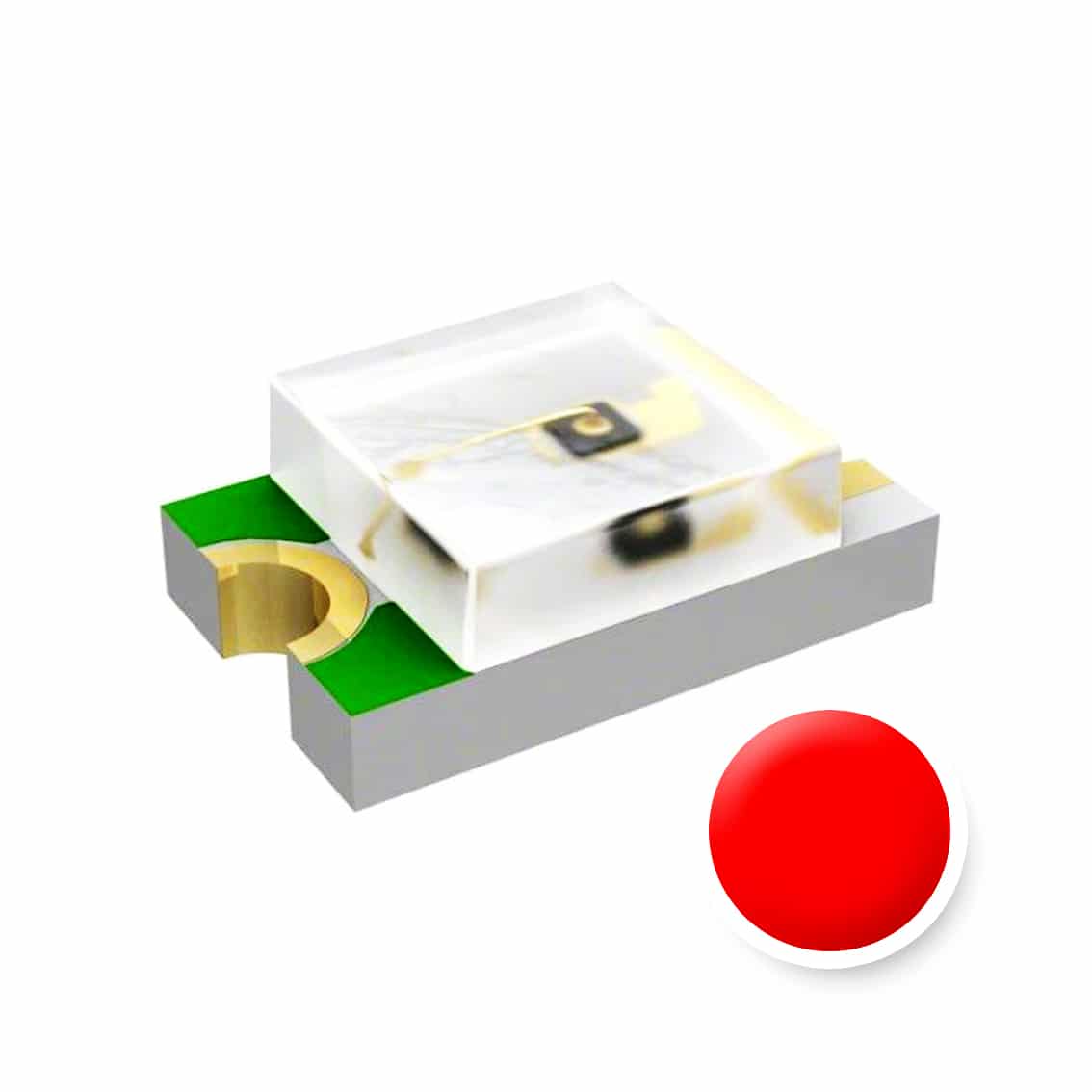

0805 Red SMD LED Diode – Pack of 50

19 people have recently viewed this product!

0805 Red SMD LED Diode – Pack of 50

These Red 0805 SMD LED Diodes come in a pack of 50, they are small in size and used usually as a soldered surface mount light source.

$13.95

Order Within –

Availability: 33 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002338

Description:

These Red 0805 SMD LED Diodes come in a pack of 50, they are small in size and used usually as a soldered surface mount light source.

These SMD LED Diodes have a wide viewing angle and come in a small SMD package size.



Specifications:

  • LED Diode Colour: Red
  • Lens: rectangle, clear
  • Luminous Intensity Range: 180-200mcd
  • Forward Voltage Range: 3.2-3.4 V
  • Forward Current: 20mA

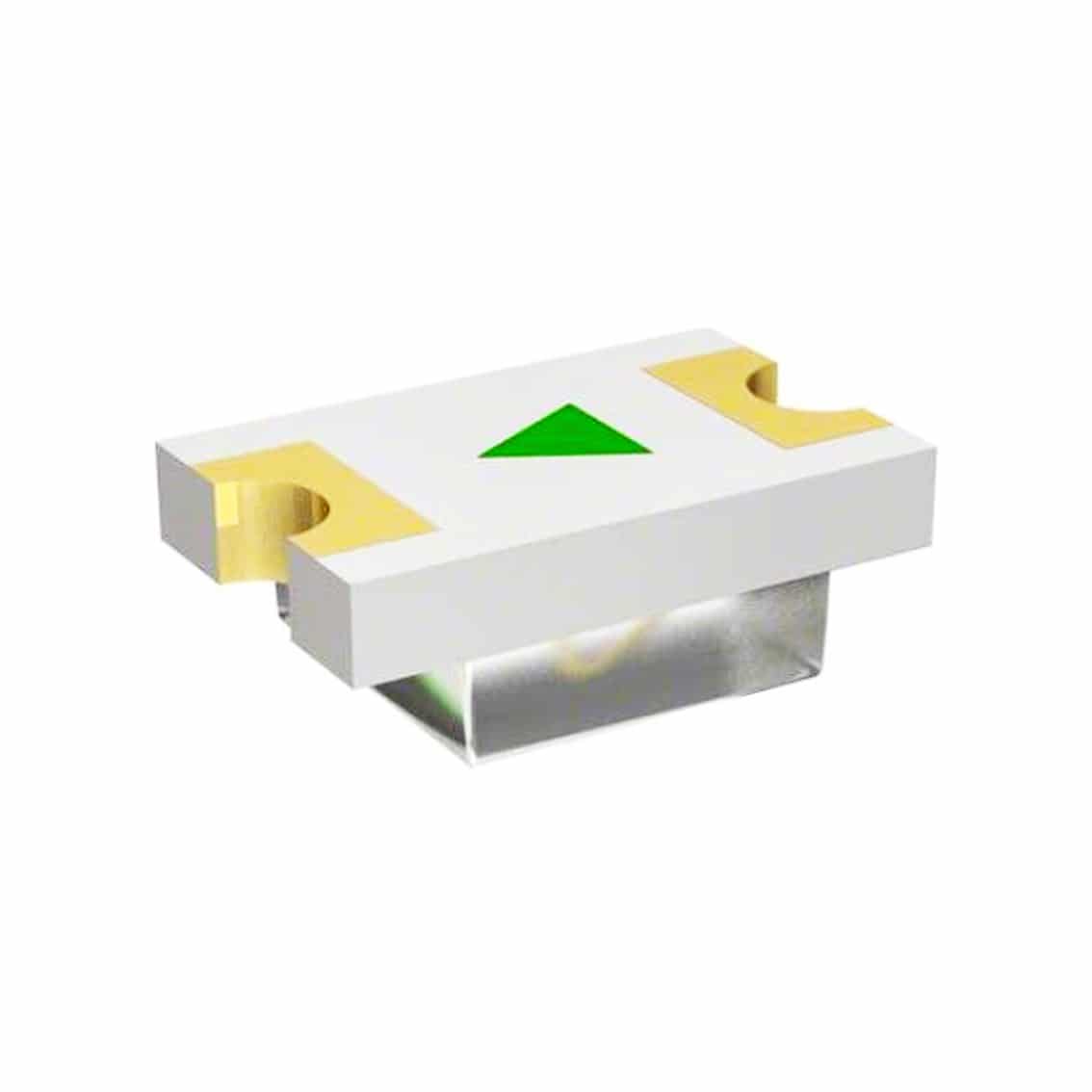

  • Polarity: Anode (+), Cathode (-) (with marking)
  • Viewing Angle: 80°
  • Reverse Voltage: 5V
  • Operating Temperature: -30 ~ +80°C
  • Weight: ‎‎11g
  • Dimensions: 2 x 1.25 x 0.7mm



Contents:

  • 50 x 0805 Red SMD LED Diode
Weight 0.001 kg
Dimensions 70 × 10 × 50 mm
Brand

LED Type

LED Attributes

,

Colour

Maximum Forward Voltage

Forward Current

Package / Case

Mounting Type

Operating Temperature
