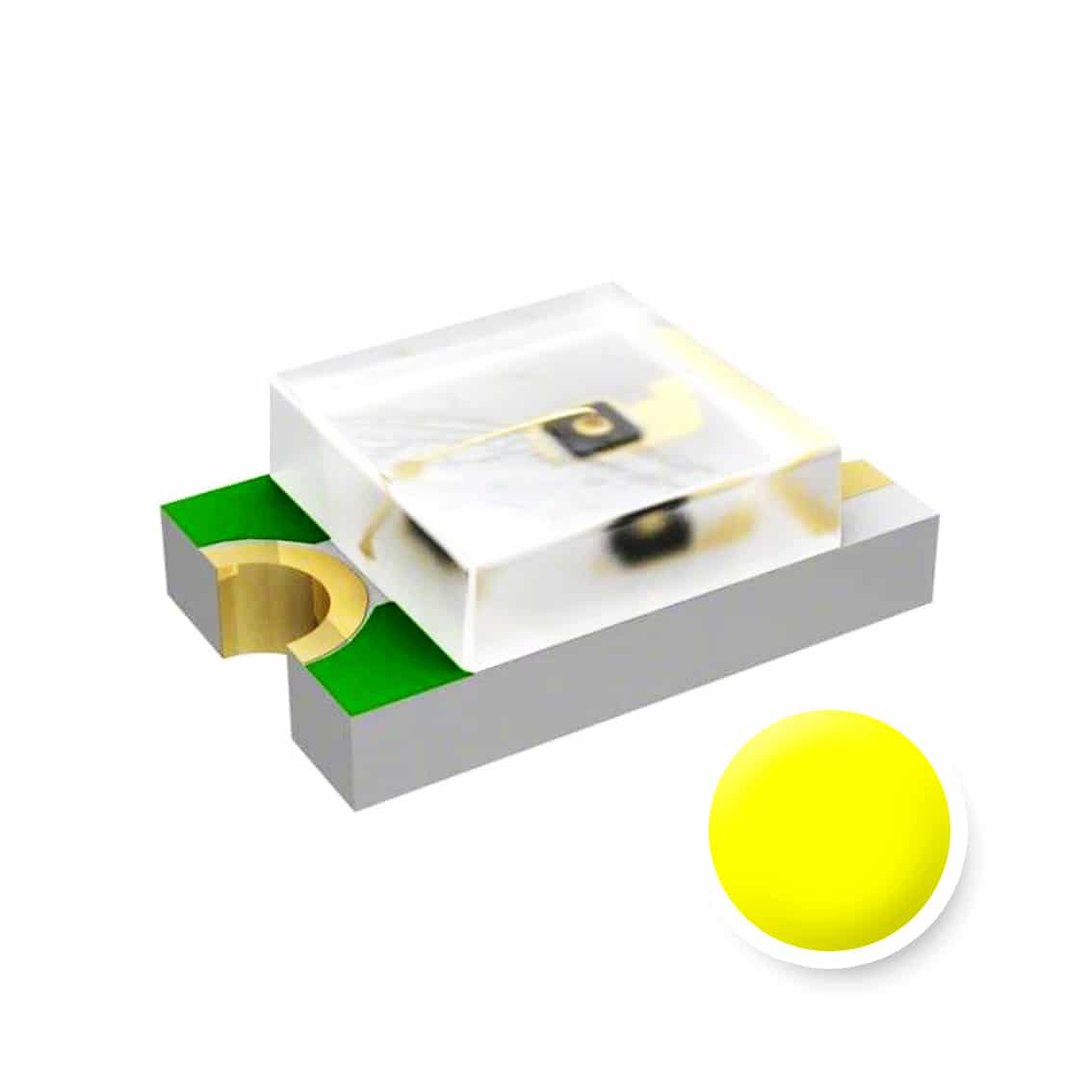

0805 Yellow SMD LED Diode – Pack of 50
These Yellow 0805 SMD LED Diodes come in a pack of 50, they are small in size and used usually as a soldered surface mount light source.
These SMD LED Diodes have a wide viewing angle and come in a small SMD package size.
- LED Diode Colour: Yellow
- Lens: Rectangle, clear
- Luminous Intensity Range: 180-200mcd
- Forward Voltage Range: 3.2-3.4 V
- Forward Current: 20mA

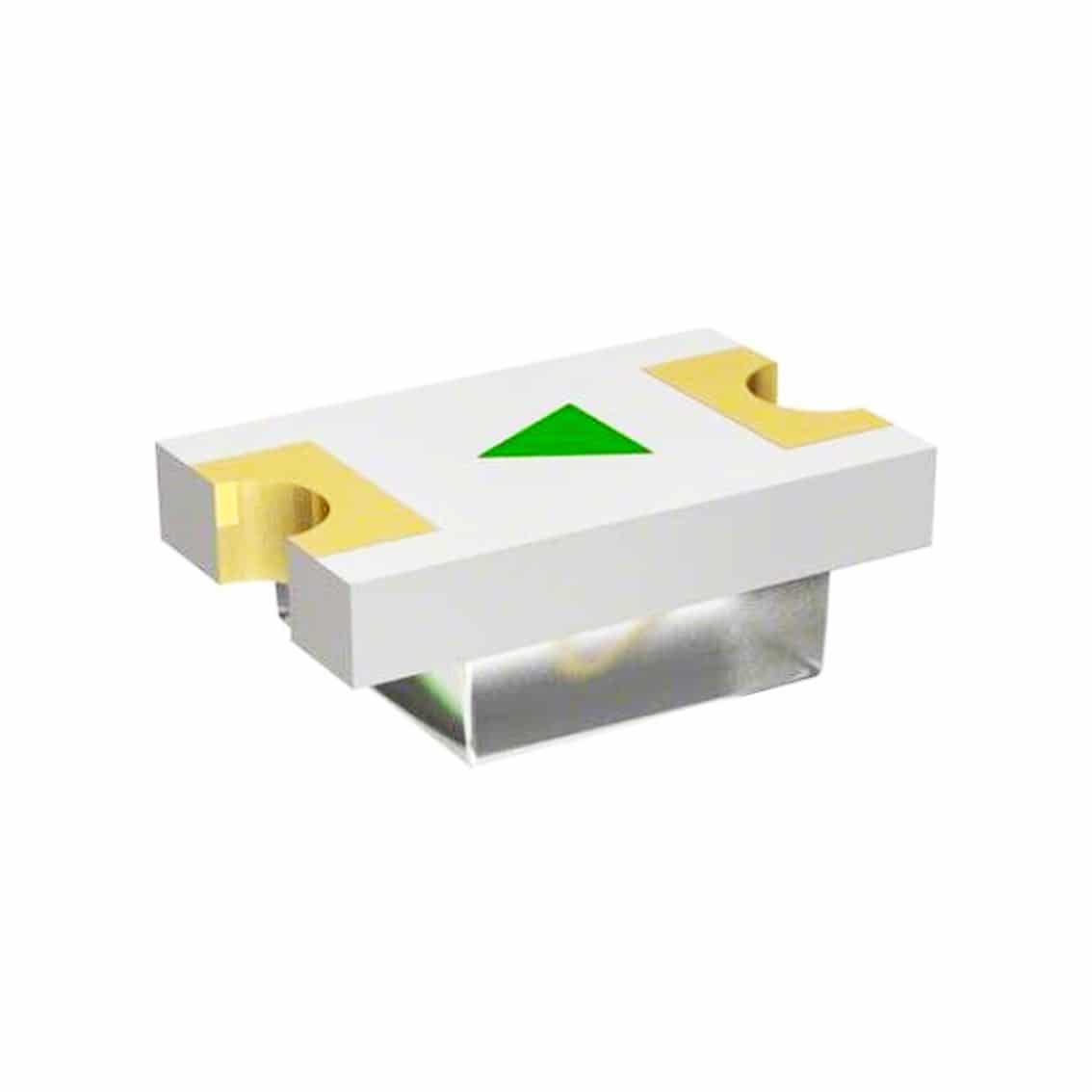

- Polarity: Anode (+), Cathode (-) (with marking)
- Viewing Angle: 80°
- Reverse Voltage: 5V
- Operating Temperature: -30 ~ +80°C
- Weight: 11g
- Dimensions: 2 x 1.25 x 0.7mm

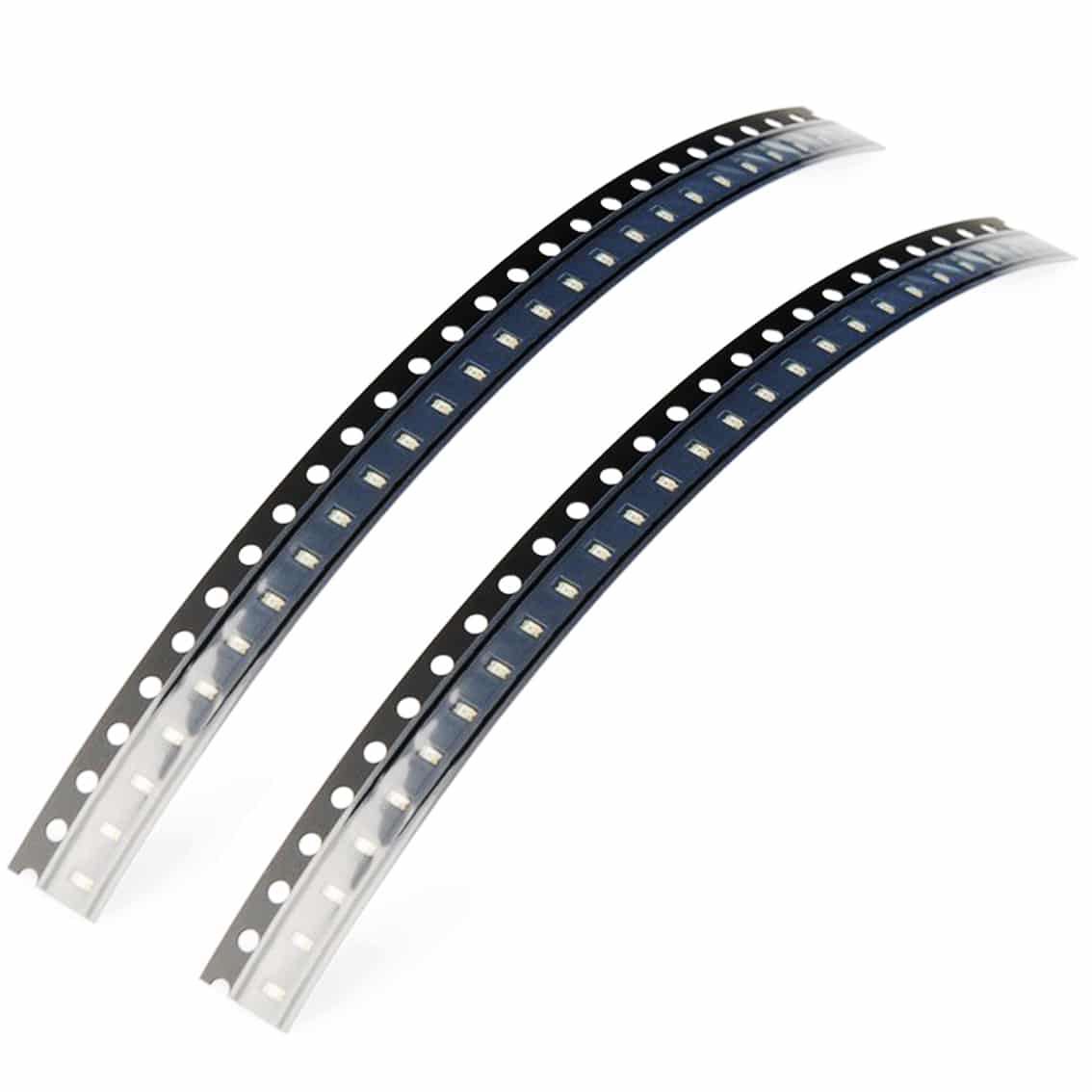

- 50 x 0805 Yellow SMD LED Diode
