12V 1 Channel High / Low Relay Module with Optocoupler

33 people have recently viewed this product!

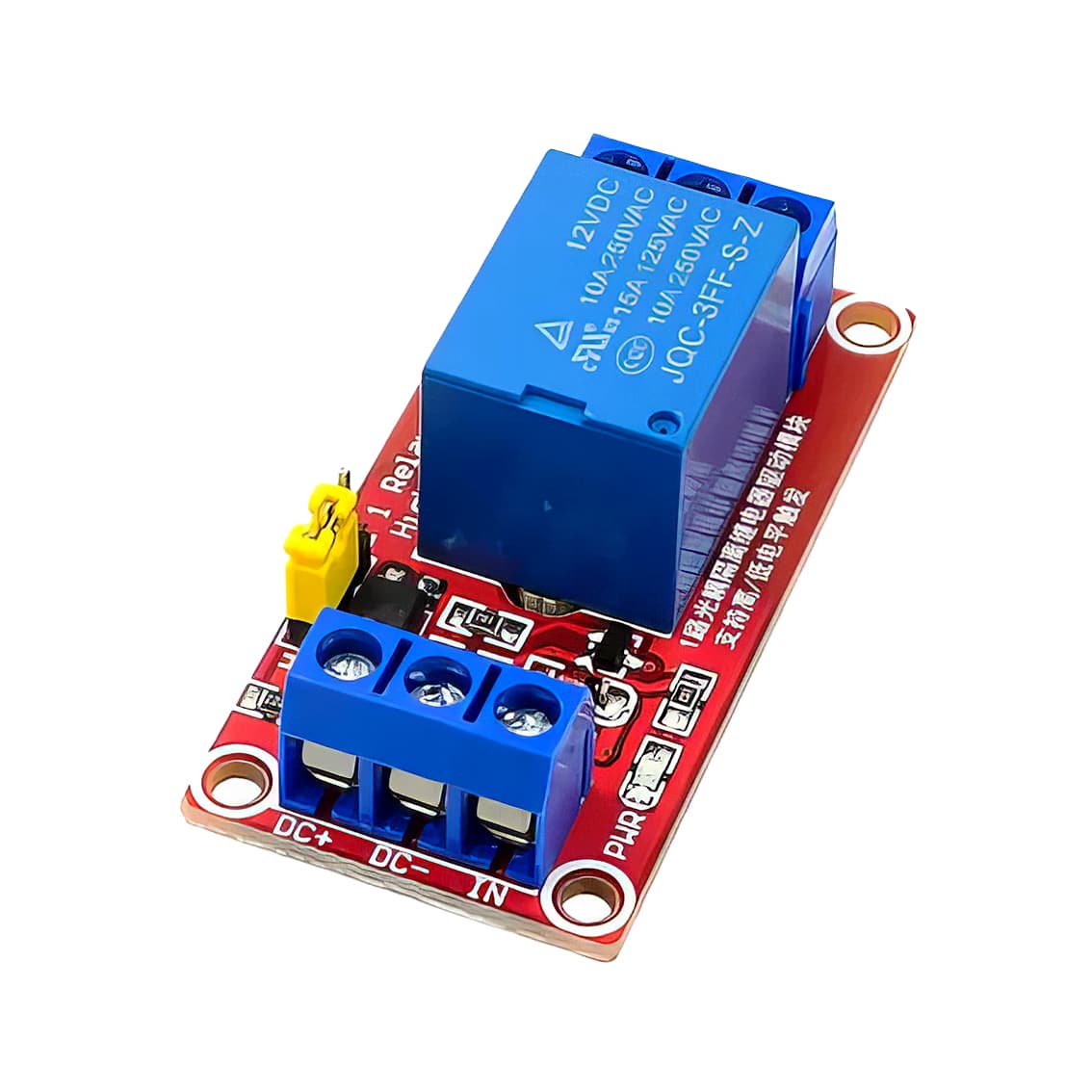

12V 1 Channel High / Low Relay Module with Optocoupler

The 12V 1 Channel High/Low Relay Module with Optocoupler is designed to control high-voltage devices using low-voltage signals. It features optocoupler isolation for stable operation and protection of control circuitry, making it ideal for home automation, robotics, and industrial control.

$13.95

Order Within –

Availability: 27 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003228

You May Also Like...

Description:

The 12V 1 Channel High/Low Relay Module with Optocoupler is a versatile and reliable solution for controlling high-voltage devices via a low-voltage microcontroller or other control systems. Featuring optocoupler isolation, this module protects your control circuitry from voltage spikes and electrical noise, ensuring stable and reliable operation. With the flexibility to configure high or low-level triggers, it is ideal for applications in home automation, robotics, industrial control, and IoT projects.

This relay module is equipped with high-quality components, including a genuine high-power relay capable of handling up to 10A at 250V AC or 30V DC. The module’s robust design includes clear labeling, user-friendly connectors, and LED indicators for easy setup and operation.

Specifications:

  • Operating Voltage: 12V DC
  • Number of Channels: 1
  • Relay Type: High/Low-Level Trigger
  • Rated Load: 10A at 250V AC, 10A at 30V DC
  • Optocoupler Isolation: Yes
  • Trigger Voltage: 3.3V – 5V
  • Module Dimensions: 53mm x 18mm x 18.5mm
  • Weight: 16g

Features:

  • Equipped with high-current relay
  • Optocoupler isolation for electrical protection
  • High and low-level trigger selection
  • LED indicators for relay status
  • High-quality screw terminals for easy connections
  • Freewheeling diode for microcontroller protection
  • Mounting holes for secure installation

Contents:

  • 1 x 1 Channel 12V Relay Module with Optocoupler
Weight 0.02 kg
Dimensions 100 × 40 × 20 mm
Brand

Type

Channels

Operating Voltage

Voltage Rating

,

Current Rating

Trigger Type

,

Trigger Voltage

Isolation
