Description:

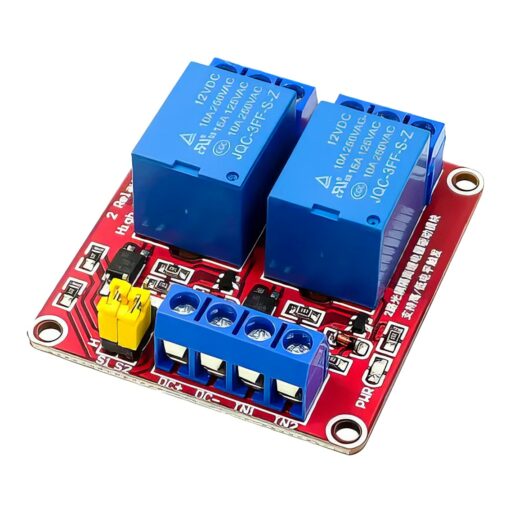

The 12V 2 Channel High/Low Relay Module with Optocoupler is a versatile and reliable solution for controlling high-voltage devices through a low-voltage microcontroller or other control systems. Equipped with two independent channels, this relay module allows you to manage multiple devices simultaneously, making it ideal for applications in home automation, robotics, industrial control, and IoT projects.
This relay module features optocoupler isolation to protect your control circuitry from voltage spikes and electrical noise, ensuring stable and reliable operation. With the ability to configure high or low-level triggers, it provides added flexibility to meet various project requirements. The module’s robust design includes clear labeling, user-friendly connectors, and LED indicators for easy setup and operation.
Specifications:
- Operating Voltage: 12V DC
- Number of Channels: 2
- Relay Type: High/Low-Level Trigger
- Rated Load: 10A at 250V AC, 10A at 30V DC
- Optocoupler Isolation: Yes
- Trigger Voltage: 3.3V – 5V
- Module Dimensions: 50mm x 40mm x 20mm
- Weight: 30g
Features:
- Equipped with high-current relays
- Optocoupler isolation for electrical protection
- High and low-level trigger selection
- LED indicators for relay status
- High-quality screw terminals for easy connections
- Diode protection for microcontroller
- Mounting holes for secure installation
Contents:
- 1 x 2 Channel Relay Module 12V High and Low Level Trigger Relay Controller
