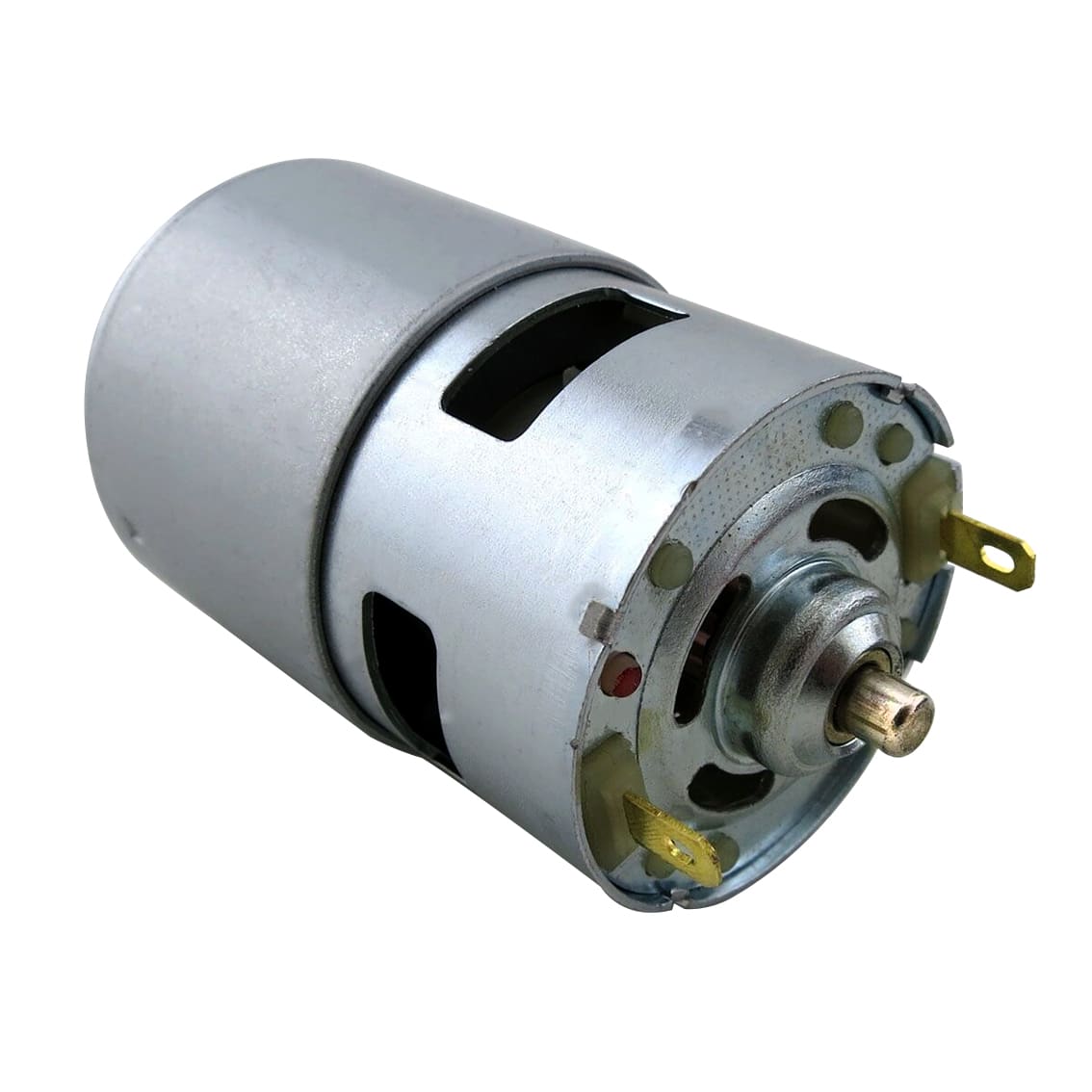

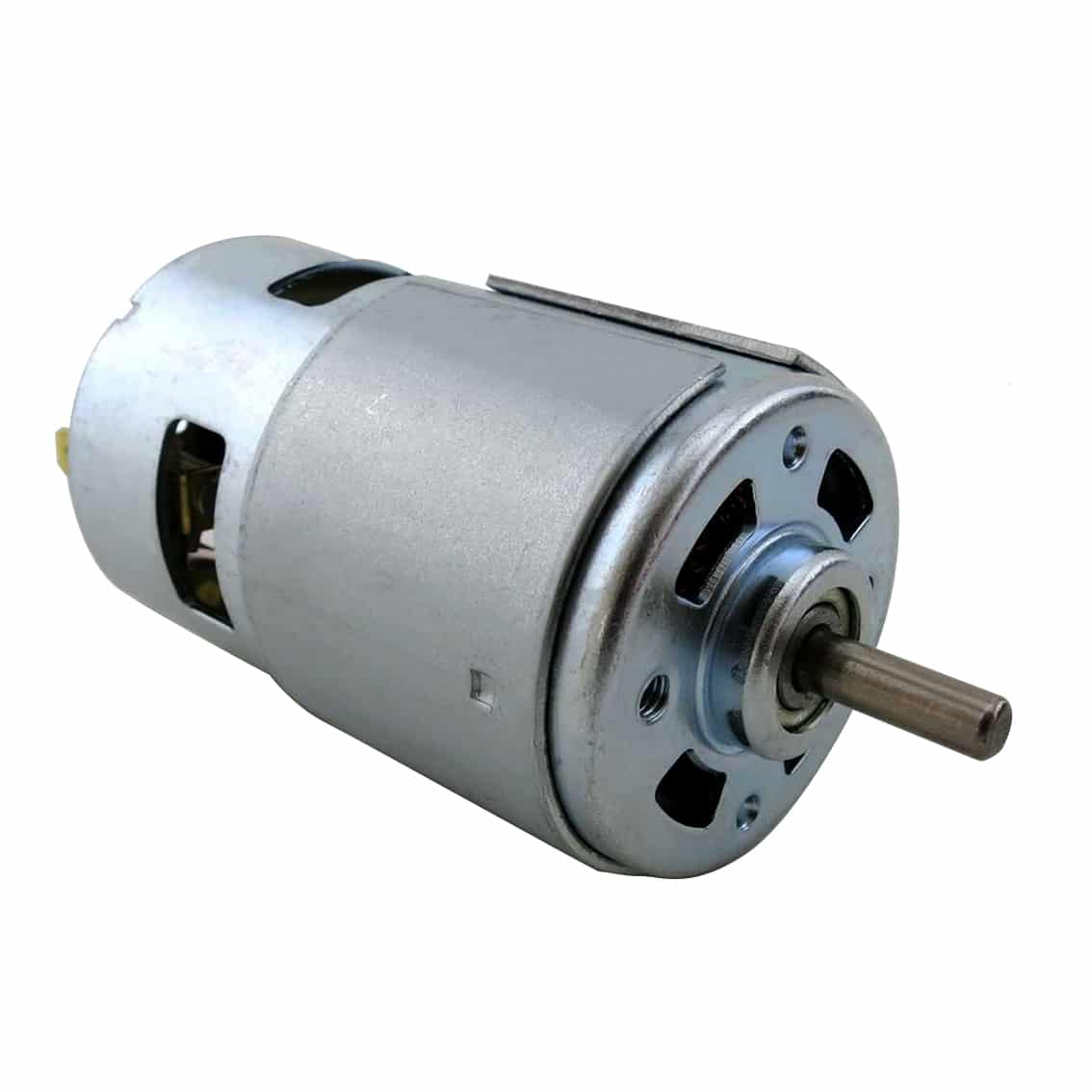

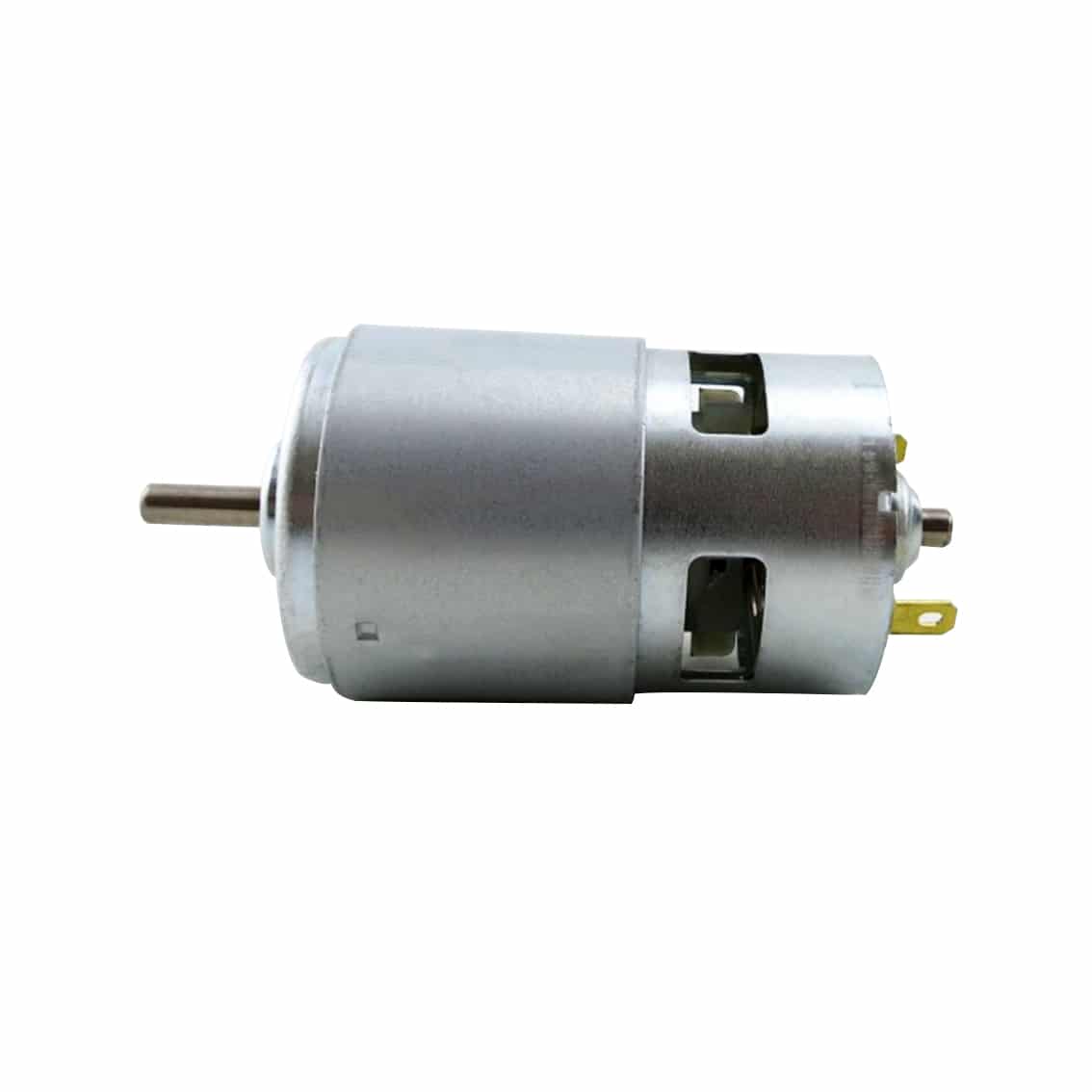

12V 775 Circular Shaft High Speed DC Motor

The 775 DC Moter is a high-speed motor capable of speeds of up to 15,600rpm.


Availability: 30 in stock

Buy now, pay later available.

SKU PHI1072565 Category Tags ,


The 775 DC Moter is a high-speed motor capable of speeds of up to 15,600rpm.

It is recommended the power supply current is rated above 5A to avoid tripping as the motor has a locked rotor current of 4.7A.



  • Rated Voltage: 12V
  • Current: 1.7 A @ 12V / Starting Current 2.2 A
  • Locked Rotor Current: 4.7 A
  • No-Load Power: 20.4 W
  • Speed: 15,600rpm +/- 5%
  • Motor Diameter: 45 mm
  • Motor Length: 67 mm (Body)
  • Step Height: 5 mm
  • Step Diameter: 17.4 mm
  • Shaft Length: 16 mm
  • Shaft Diameter: 5 mm
  • Tail Foot Spacing: ~ 34 mm
  • Mounting Hole Distance: ~ 29 mm
  • Weight: ~ 356 g



  • 1 x 12V 775 Circular Shaft High-Speed DC Motor
