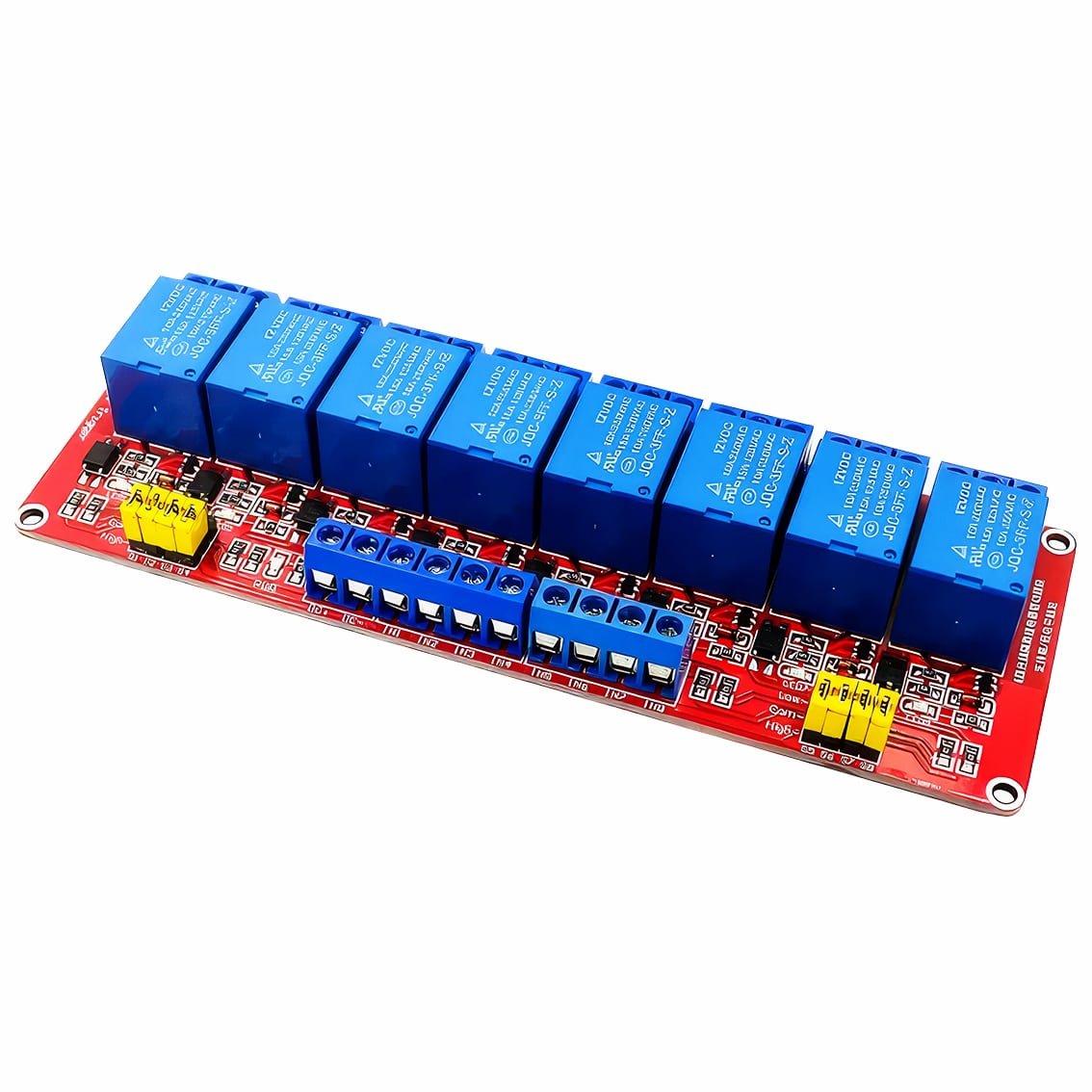

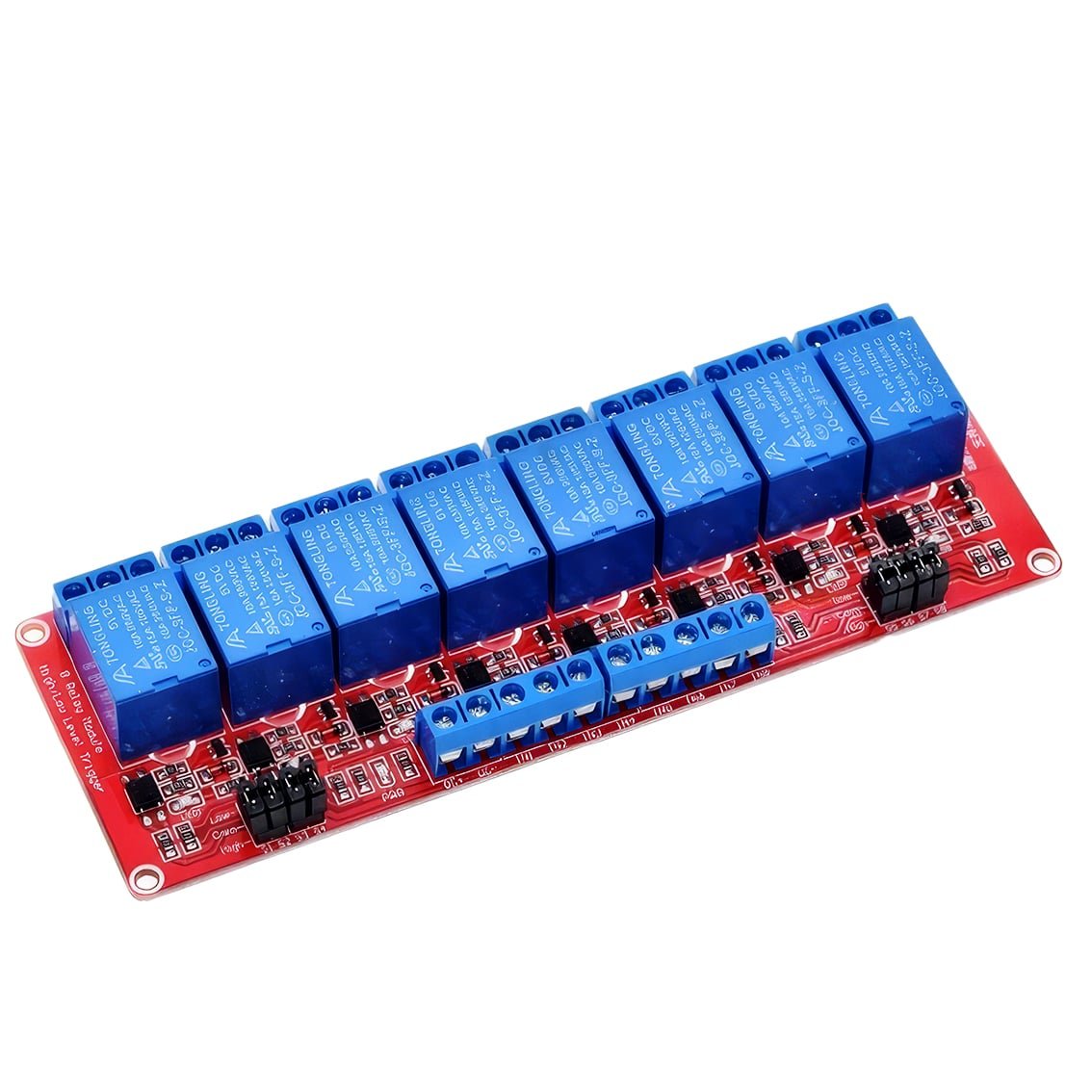

12V 8 Channel High / Low Relay Module with Optocoupler

31 people have recently viewed this product!

12V 8 Channel High / Low Relay Module with Optocoupler

The 12V 8 Channel High/Low Relay Module with Optocoupler allows for controlling multiple high-voltage devices via low-voltage signals. Featuring optocoupler isolation, it ensures stable performance and protection for control systems. Ideal for automation, robotics, and industrial applications.

$23.95

Order Within –

Availability: 23 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003232

You May Also Like...

Description:

The 12V 8 Channel High/Low Relay Module with Optocoupler is an advanced solution for managing multiple high-voltage devices through low-voltage control systems. Featuring eight independent channels, this relay module is ideal for complex applications in home automation, robotics, industrial control, and IoT projects. Each channel can be individually controlled, allowing for versatile and comprehensive device management.

Equipped with optocoupler isolation, this module protects your control circuitry from voltage spikes and electrical noise, ensuring stable and reliable operation. The high-quality components and robust design include clear labeling, user-friendly connectors, and LED indicators for each relay, simplifying setup and monitoring.

Specifications:

  • Operating Voltage: 12V DC
  • Number of Channels: 8
  • Relay Type: High/Low-Level Trigger
  • Rated Load: 10A at 250V AC, 10A at 30V DC
  • Optocoupler Isolation: Yes
  • Trigger Voltage: 3.3V – 5V
  • Dimensions: 138mm x 57mm x 17mm
  • Weight: 110g

Features:

  • High-current relay for robust performance
  • Optocoupler isolation for electrical protection
  • Supports high and low-level trigger inputs
  • LED indicators for relay status
  • High-quality screw terminals for easy connections
  • Freewheeling diode for microcontroller protection
  • Mounting holes for secure installation

Contents:

  • 1 x 8 Channel 12V Relay Module with Optocoupler
