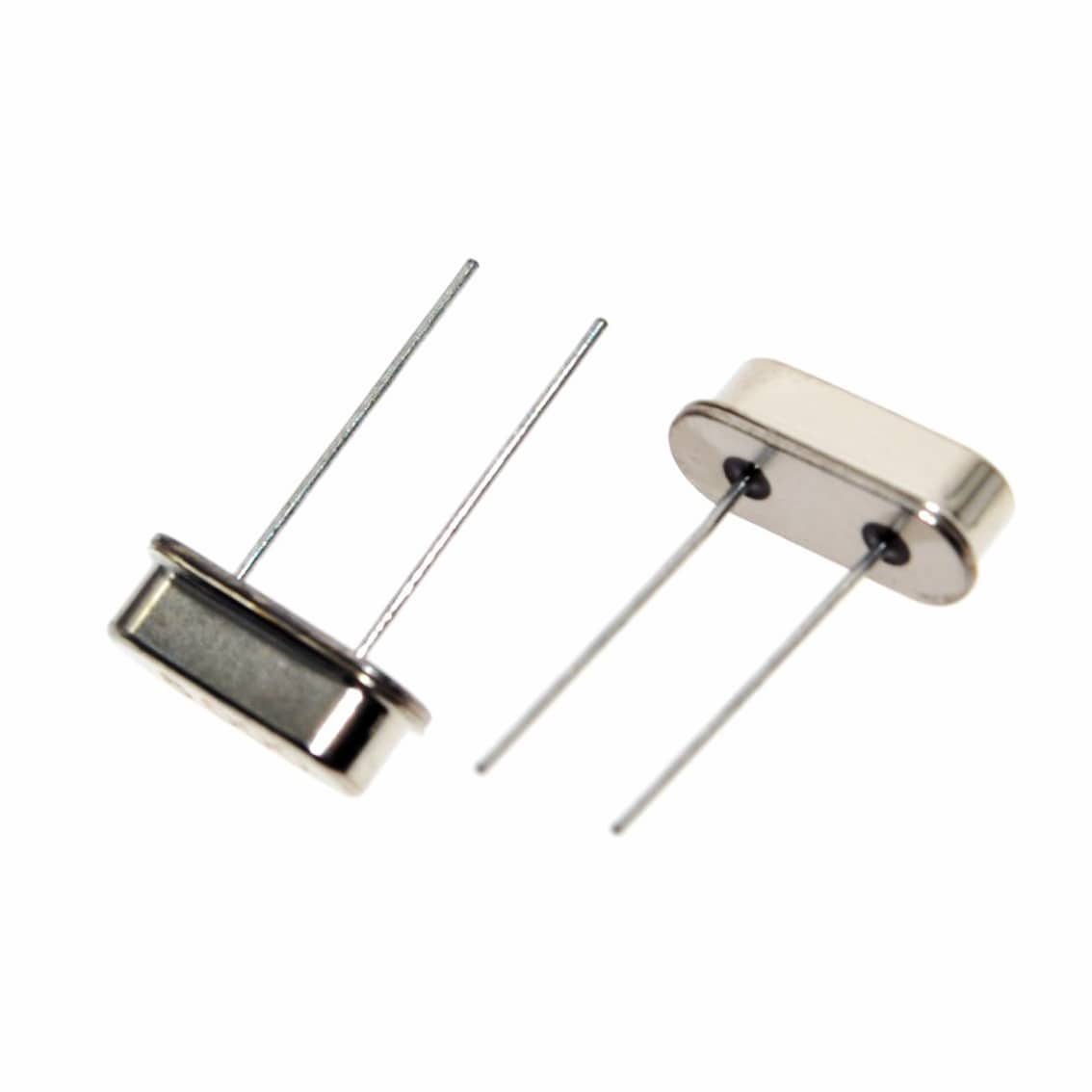

14.7456 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

32 people have recently viewed this product!

14.7456 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

14.7456 MHz quartz crystal oscillators in HC-49S package, ±30 ppm tolerance. Perfect for UART baud rate generation and embedded timing. Pack of 10.

$14.95

Order Within –

All stock located in Australia.

Availability: 25 in stock

EXPRESS SHIPPING Available.

SKU: PHI1002504

Description:

The 14.7456 MHz Quartz Crystal Oscillator in HC-49S package provides accurate frequency generation widely used for UART baud rate clocks, embedded microcontrollers, and communication systems. With ±30 ppm tolerance, it ensures reliable timing and consistent data transmission rates.

Encased in the compact HC-49S through-hole package, this crystal is easy to integrate with PCBs. Designed with low phase noise and excellent long-term stability, it’s a reliable component for engineers, educators, and hobbyists. Supplied in a pack of 10, it offers convenience for prototyping and production work.

Specifications:

  • Frequency: 14.7456 MHz
  • Package: HC-49S (through-hole)
  • Load Capacitance: 20 pF
  • Frequency Tolerance: ±30 ppm at 25°C
  • Frequency Stability: ±50 ppm over -20°C to +70°C
  • Shunt Capacitance: ≤7 pF
  • Drive Level: 100 µW (max 1 mW)

Features:

  • 14.7456 MHz precise frequency ideal for UART and serial timing
  • HC-49S package with 2-pin through-hole leads
  • Low noise and excellent long-term stability
  • Reliable performance across industrial temperature ranges
  • Supplied in bulk pack of 10 for projects and repairs

Contents:

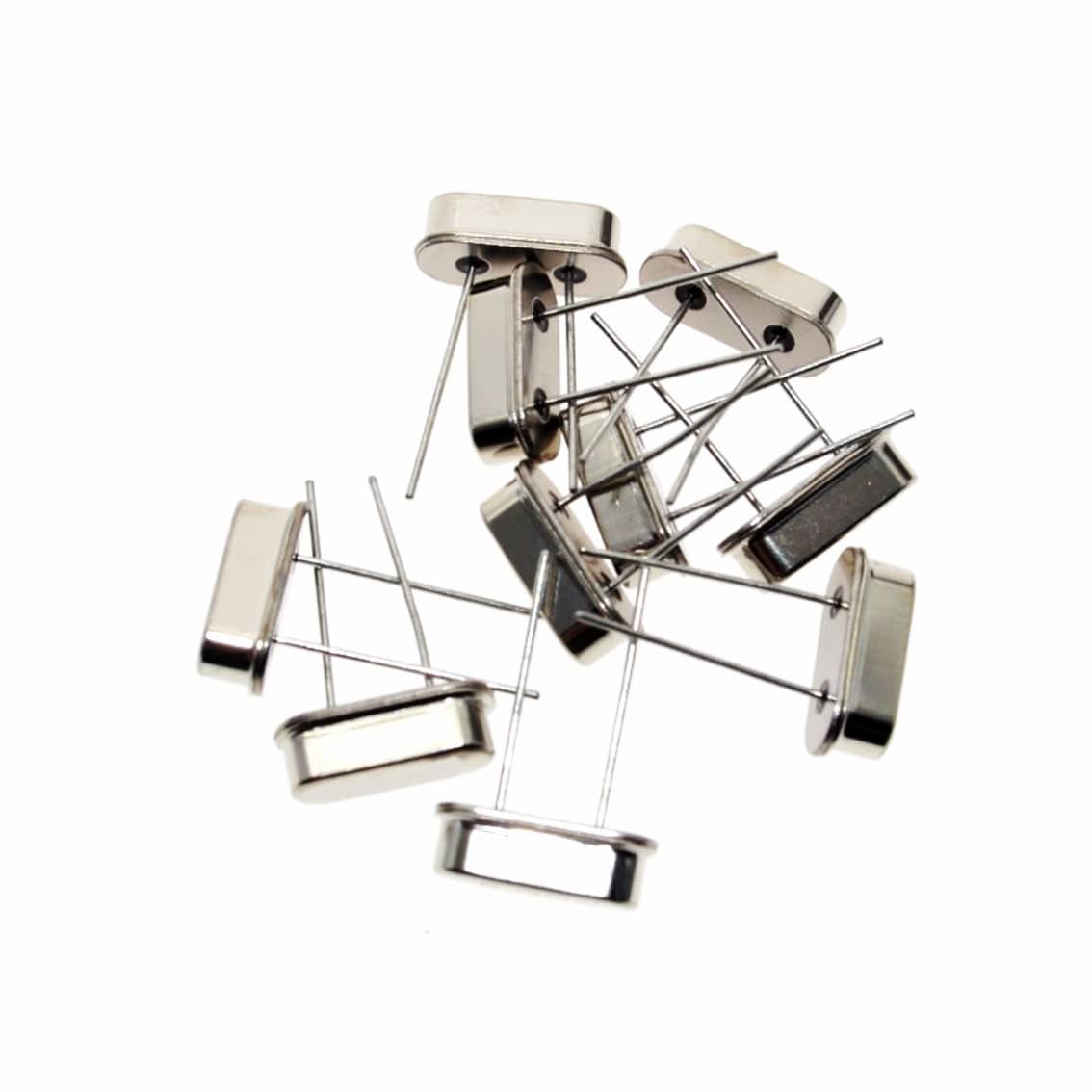

  • 10 x 14.7456 MHz Quartz Crystal Oscillator (HC-49S)
Weight 0.006 kg
Dimensions 70 × 5 × 50 mm
Brand

Type

Frequency

Load Capacitance

Frequency Tolerance

±30 ppm

Frequency Stability

Shunt Capacitance

Maximum Output Power

Package / Case

Mounting Type
