Description:

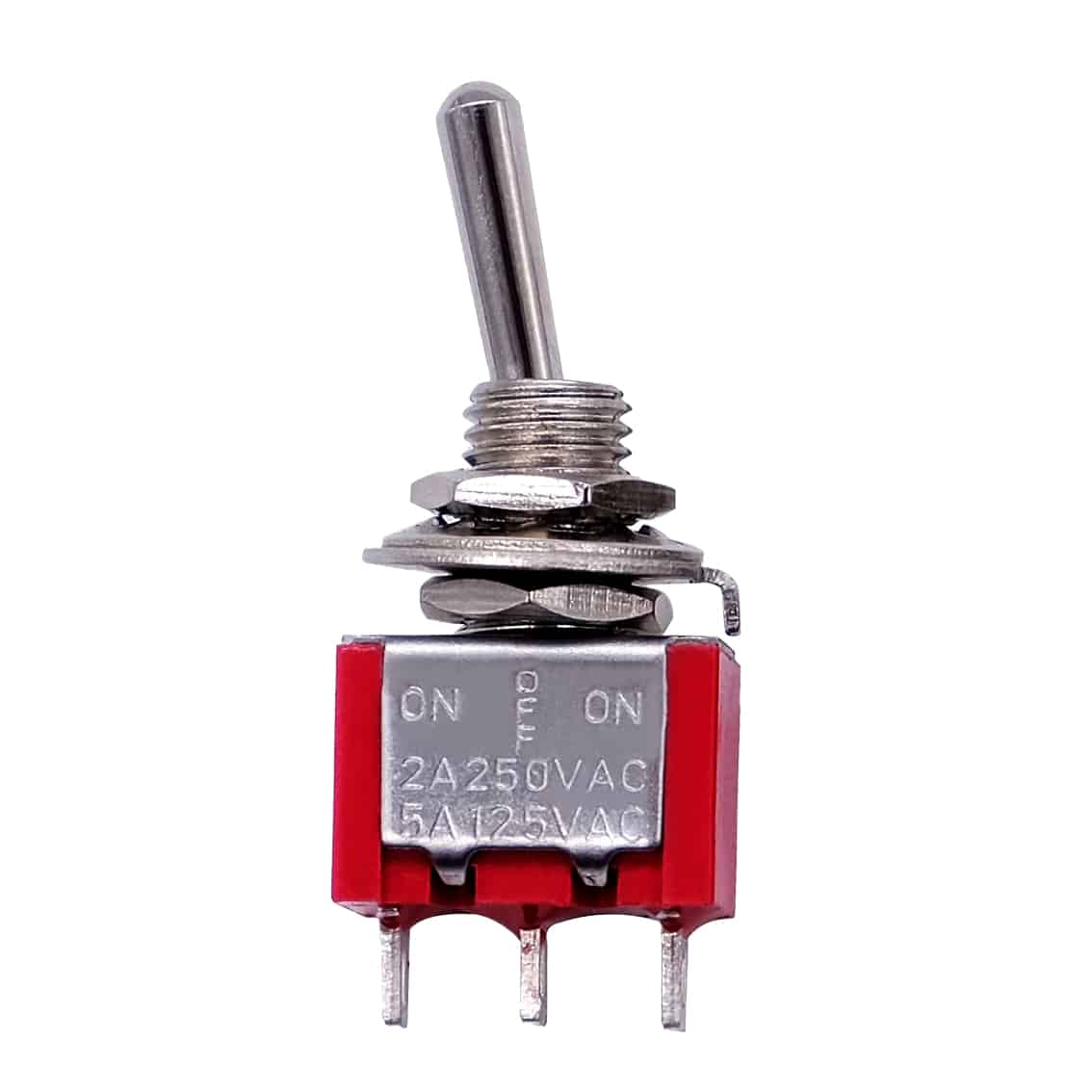

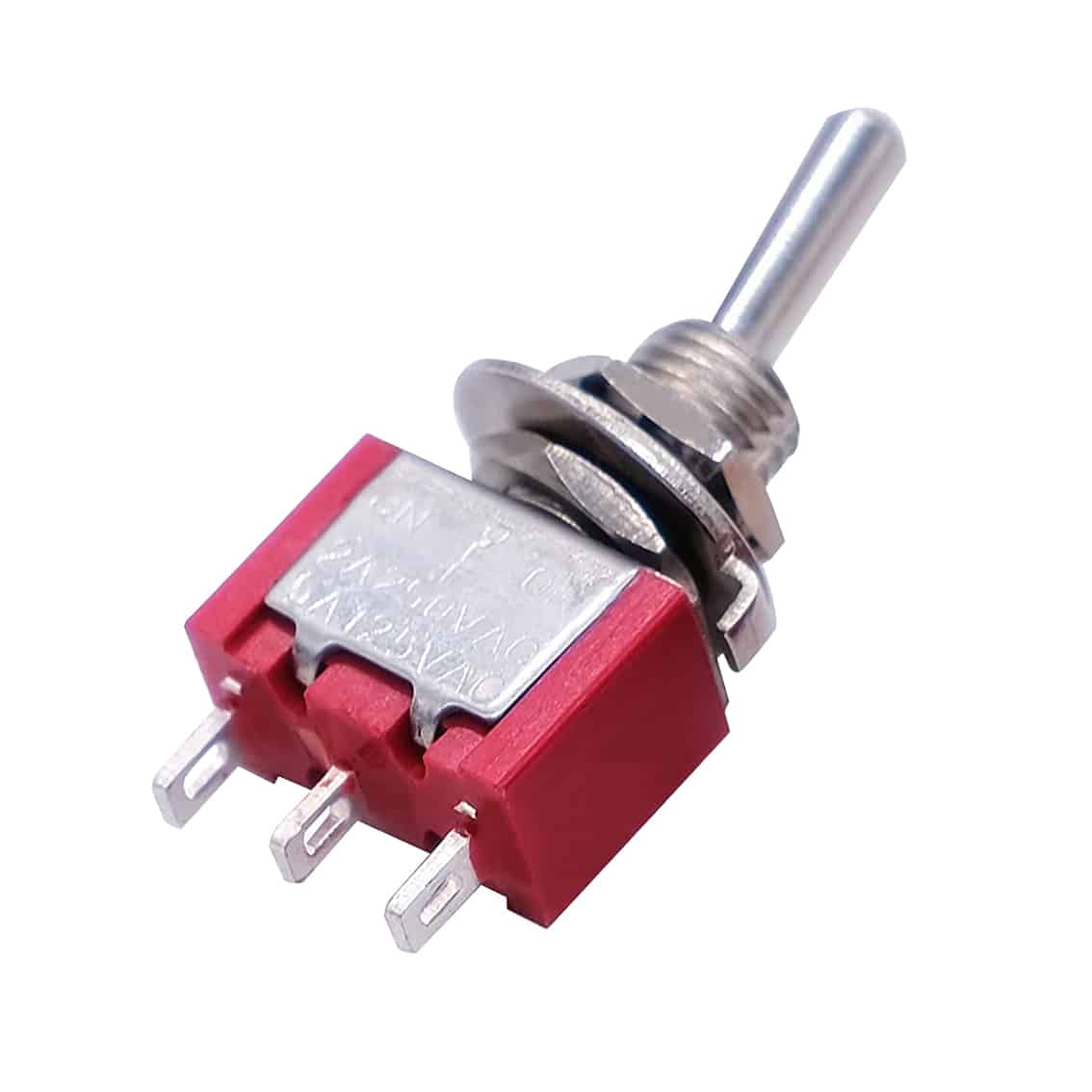

The MTS-103 Red Mini Toggle Switch is a reliable and versatile switch designed for various electronic applications. Featuring a durable red plastic housing, this mini toggle switch is both functional and easy to identify in your projects. The MTS-103 is an SPDT (Single Pole Double Throw) switch configured in an ON-OFF-ON format. This configuration allows the switch to toggle between two different circuits or states or completely disconnect the circuit in the middle (OFF) position. This pack of 5 switches is perfect for hobbyists, engineers, and DIY enthusiasts who require precise control of their electronic designs.
The MTS-103 is well-suited for control panels, instrumentation, audio equipment, model railroads, and other projects where space is limited and reliable switching is crucial. The switch is designed for easy panel mounting and comes with a secure nut and washer to ensure a stable installation. Its compact form factor and robust construction ensure long-lasting performance and easy integration into various electronic systems.
Specifications:
- Model: MTS-103
- Type: Mini Toggle Switch
- Switching Type: SPDT (Single Pole Double Throw)
- Position: ON-OFF-ON
- Contact Rating: 6A at 125V AC, 3A at 250V AC
- Insulation Resistance: Minimum 500VDC, 1000MΩ
- Dielectric Strength: 1500VAC for 1 minute
- Electrical Life: 10,000 cycles
- Terminal Type: Solder Lug
- Mounting Hole Diameter: 6mm
- Body Material: Metal and Red Plastic
- Operating Temperature: -25°C to +85°C
- Overall Dimensions: 12mm x 7mm x 29mm (excluding terminals)
- Weight: Approximately 5g per switch
Features:
- SPDT switch with an ON-OFF-ON configuration for flexible control of circuits.
- Compact and durable design, suitable for various electronic applications.
- Rated for up to 6A at 125V AC, ensuring compatibility with various circuits.
- Easy panel mounting with a secure nut and washer for stable installation.
- Red plastic housing for easy identification and a professional appearance.
Contents:
- 5 x MTS-103 Red Mini Toggle Switch
