Description:

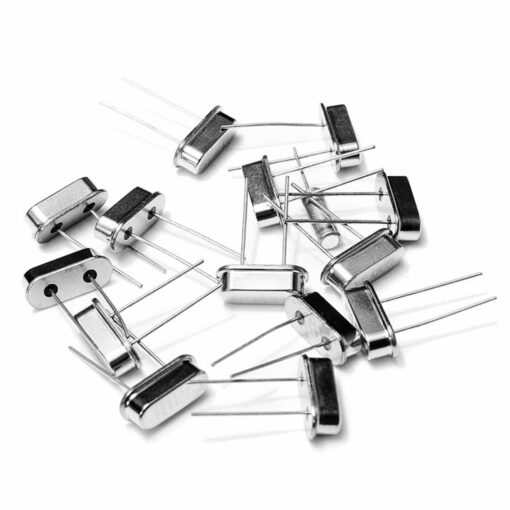

The 15 Value Crystal Oscillator Kit – 15 Pieces provides a carefully selected range of crystal oscillators ideal for precise timing and frequency control in microcontroller projects, embedded systems, and communication applications. Each crystal operates at a specific fundamental frequency commonly used in digital electronics, making this an essential assortment for both prototyping and education.
This kit includes values from 4MHz to 48MHz, as well as the widely used 32.768kHz watch crystal, ideal for Real Time Clock (RTC) modules. The crystals are standard HC-49S or cylindrical (for 32.768kHz) through-hole types, compatible with breadboards and PCBs. Whether you’re working with Arduino, PIC, STM32, or AVR microcontrollers, this kit offers the flexibility to match oscillator requirements for a wide range of applications including serial communications (UART, USB), timer-based systems, and clock generation.
Specifications:
- Type: Quartz Crystal Oscillators
- Package: HC-49S (through-hole) and cylindrical (for 32.768kHz)
- Frequency Stability: ±20 to ±50 ppm (typical)
- Load Capacitance: 18pF (typical)
- Mounting Type: Through-Hole
- Operating Temperature Range: -20°C to +70°C (varies by frequency)
- Applications: Clock generation, microcontrollers, RTC modules, UART, USB, frequency timers
- Total Quantity: 15 pieces
Features:
- 15 commonly used crystal oscillator frequencies for prototyping and embedded applications
- Standard through-hole mounting for breadboards and PCBs
- Includes precise frequencies used in UART, USB, and real-time clock systems
- Suitable for Arduino, AVR, STM32, and other microcontroller platforms
- Packaged for easy identification and quick deployment in circuit design
Contents:
- 1 x 4MHz Crystal Oscillator
- 1 x 6MHz Crystal Oscillator
- 1 x 7.3728MHz Crystal Oscillator
- 1 x 8MHz Crystal Oscillator
- 1 x 10MHz Crystal Oscillator
- 1 x 11.0592MHz Crystal Oscillator
- 1 x 12MHz Crystal Oscillator
- 1 x 12.288MHz Crystal Oscillator
- 1 x 16MHz Crystal Oscillator
- 1 x 20MHz Crystal Oscillator
- 1 x 22.1184MHz Crystal Oscillator
- 1 x 24MHz Crystal Oscillator
- 1 x 25MHz Crystal Oscillator
- 1 x 48MHz Crystal Oscillator
- 1 x 32.768kHz Crystal Oscillator (Cylindrical for RTC)
