150W DC-DC 6A Step Up Boost Converter – 10-32V to 12-35V

23 people have recently viewed this product!

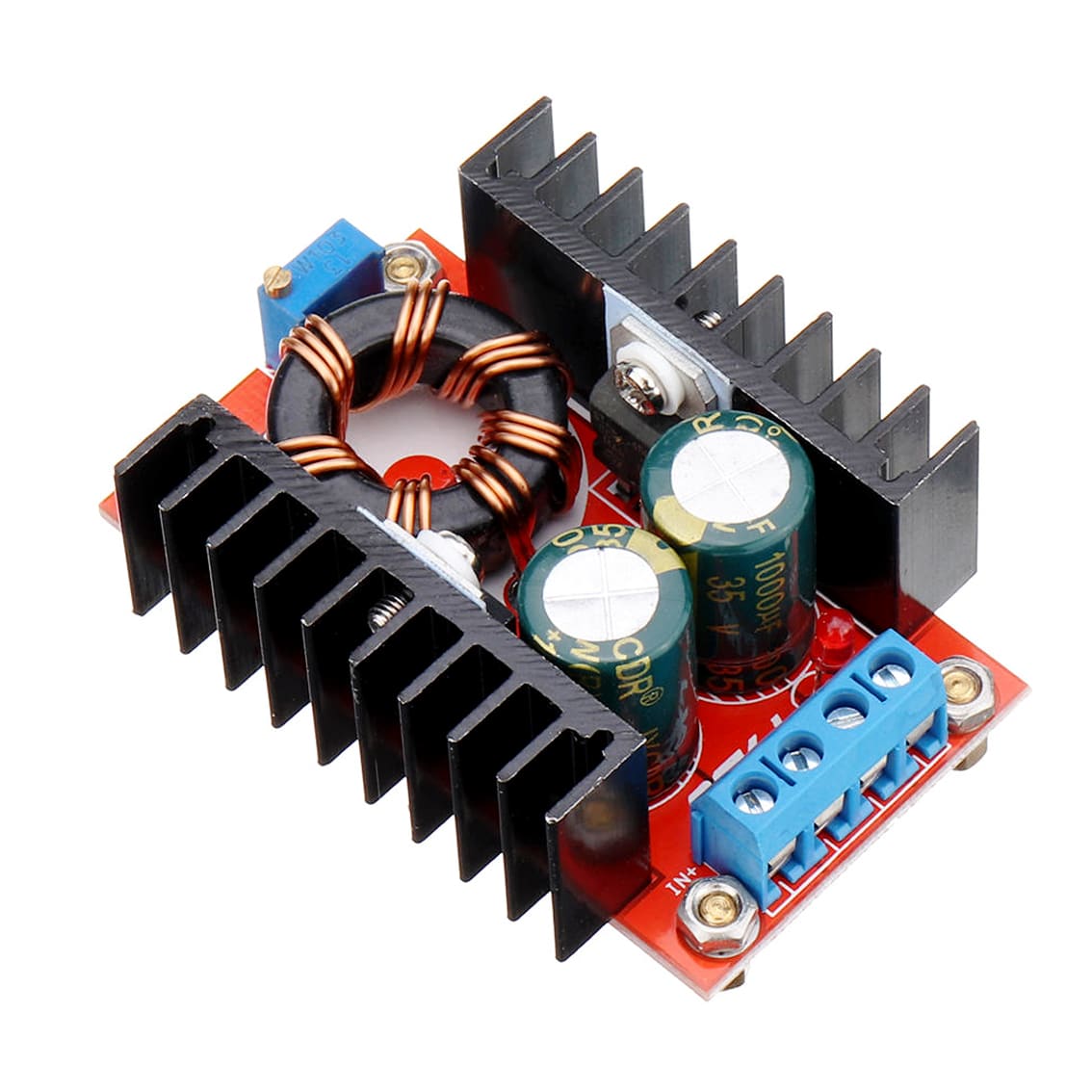

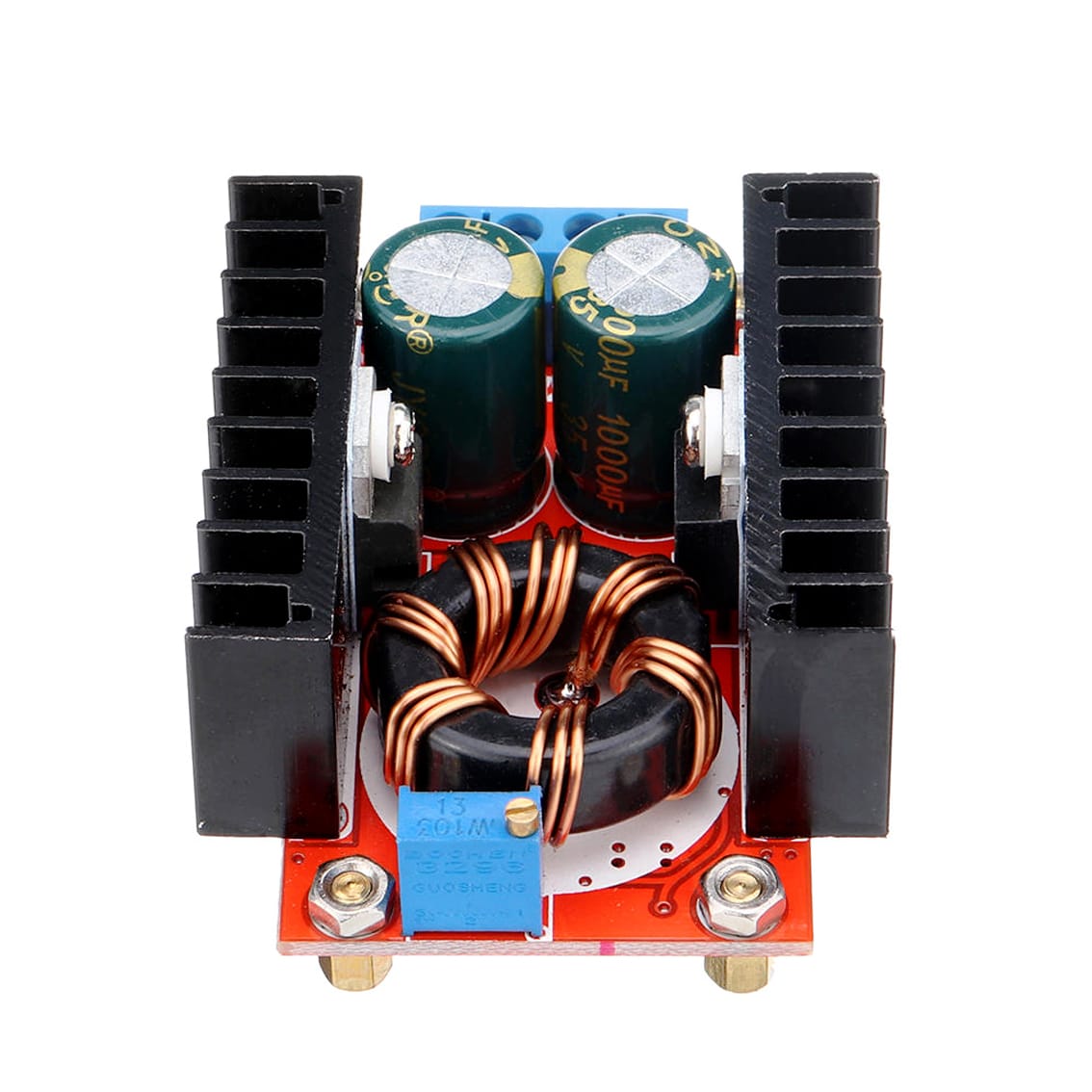

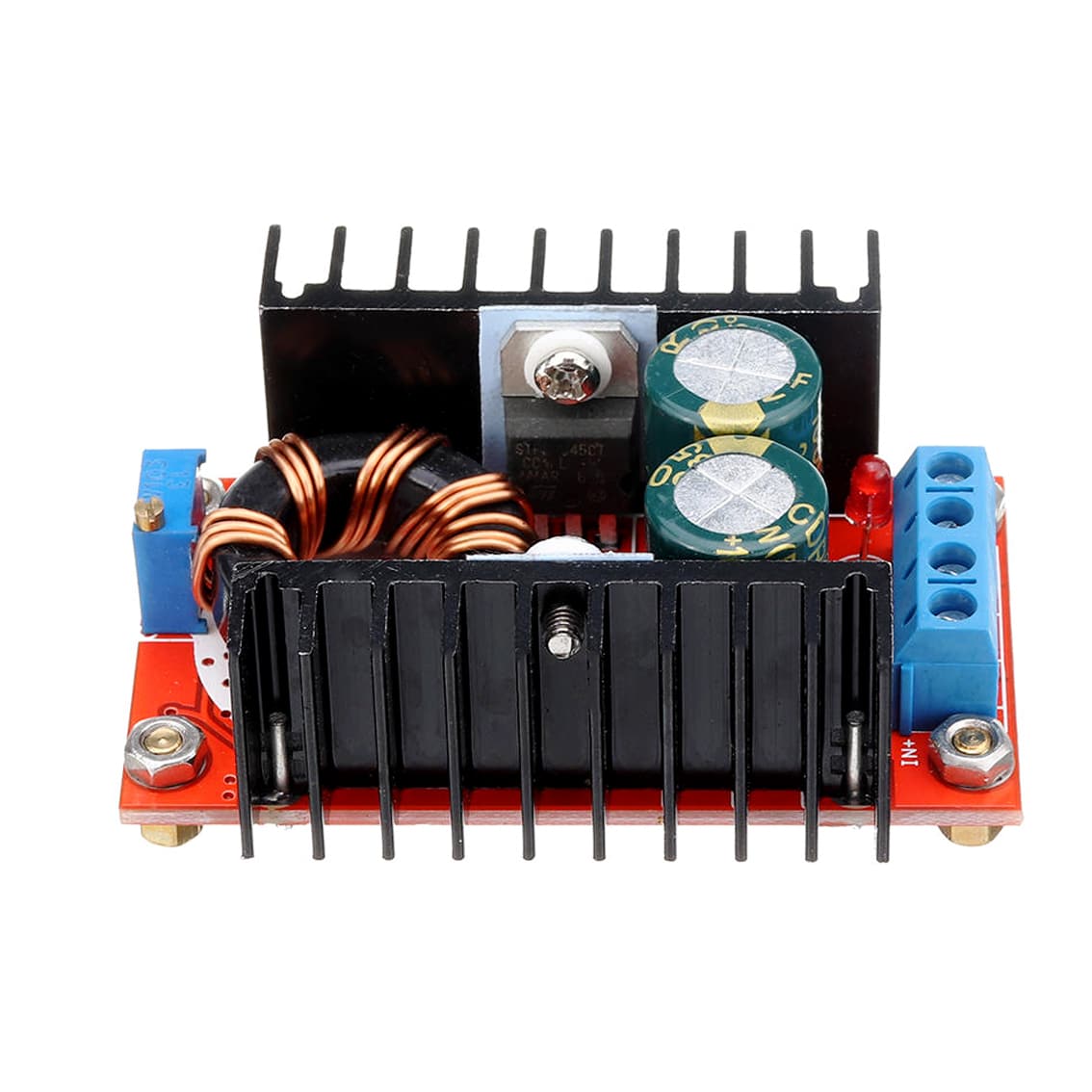

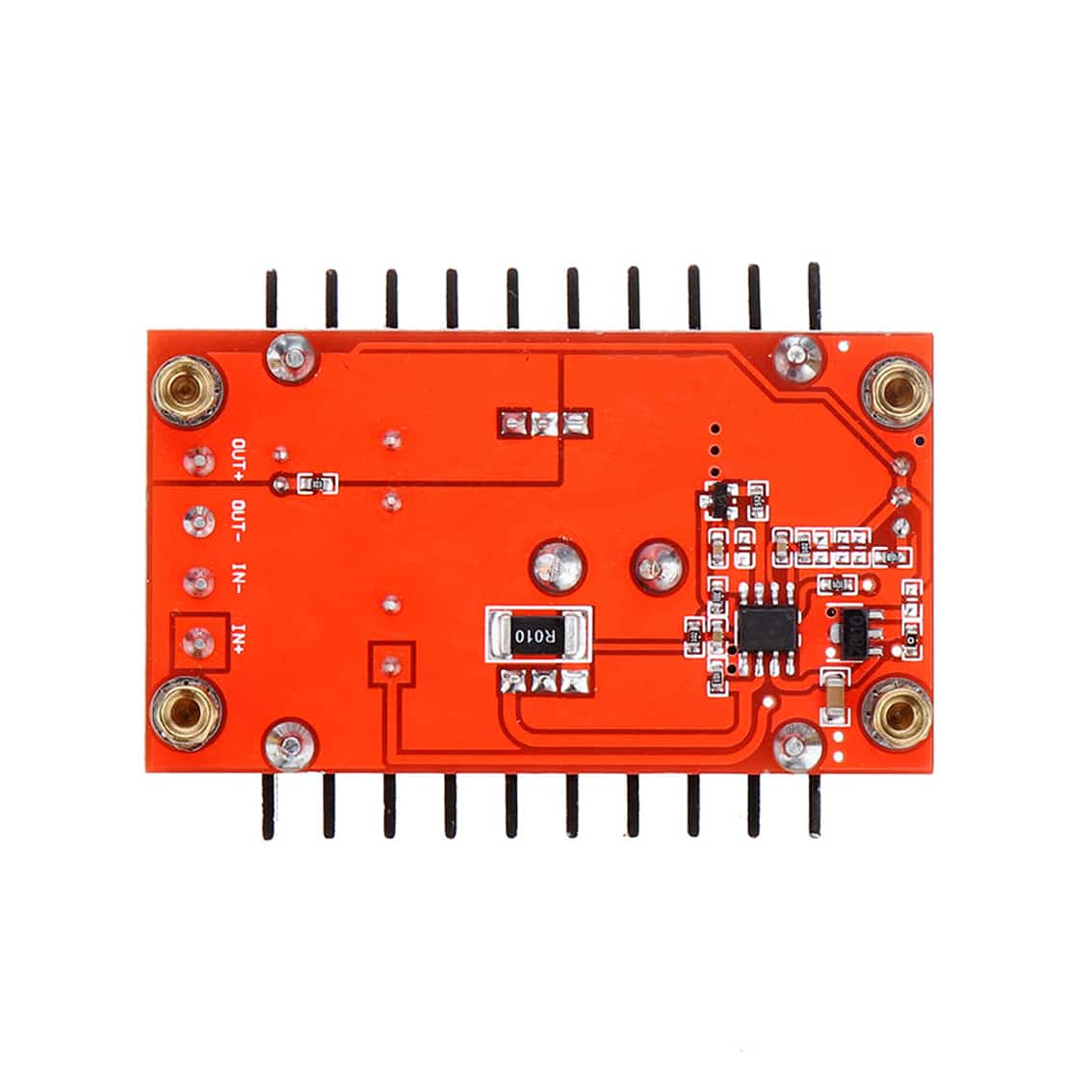

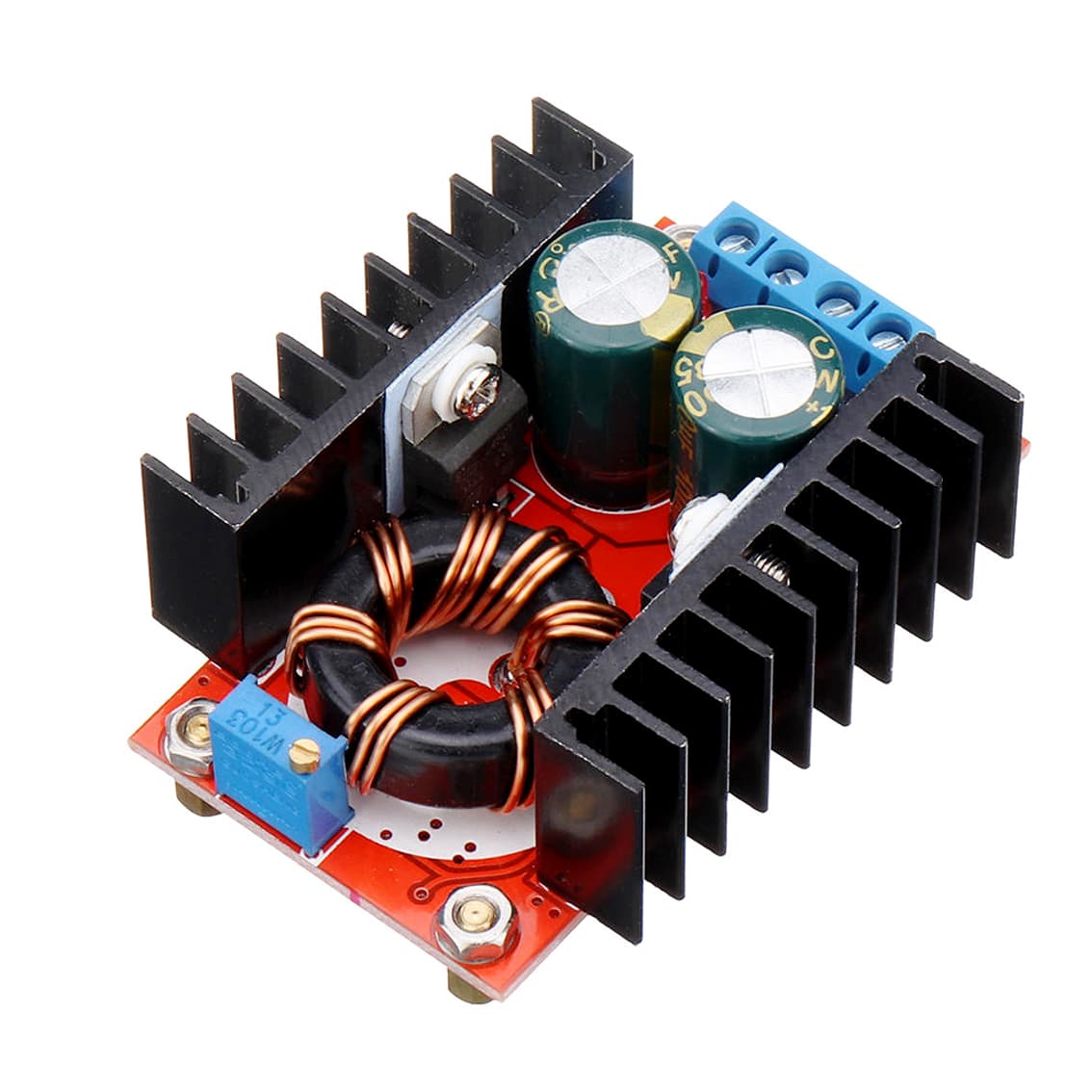

150W DC-DC 6A Step Up Boost Converter – 10-32V to 12-35V

The 150W DC-DC Step Up Boost Converter can boost supply voltage from 10~32V DC to 12~35V (adjustable)  with a maximum output current of 10A.

$31.95

Order Within –

Availability: 47 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002209

You May Also Like...

Description:

The 150W DC-DC Step Up Boost Converter can boost supply voltage from 10~32V DC to 12~35V (adjustable) with a maximum output current of 10A.

Note: This module does not have reverse polarity or short circuit protection.



Specifications:

  • Input Voltage: 10 – 32V DC
  • Input Current: 10A (max)
  • Output Voltage: 12 – 35V DC
  • Output Current: 6A (max)
  • Output Power: 150W (max with cooling fan) / 100W (max no cooling)
  • On-board Power indication LED
  • Dimensions: 65mm x 56.5mm x 23mm



Contents:

  • 1 x 150W DC-DC 6A Step Up Boost Converter – 10-32V to 12-35V Module
Weight 0.066 kg
Dimensions 120 × 25 × 90 mm
