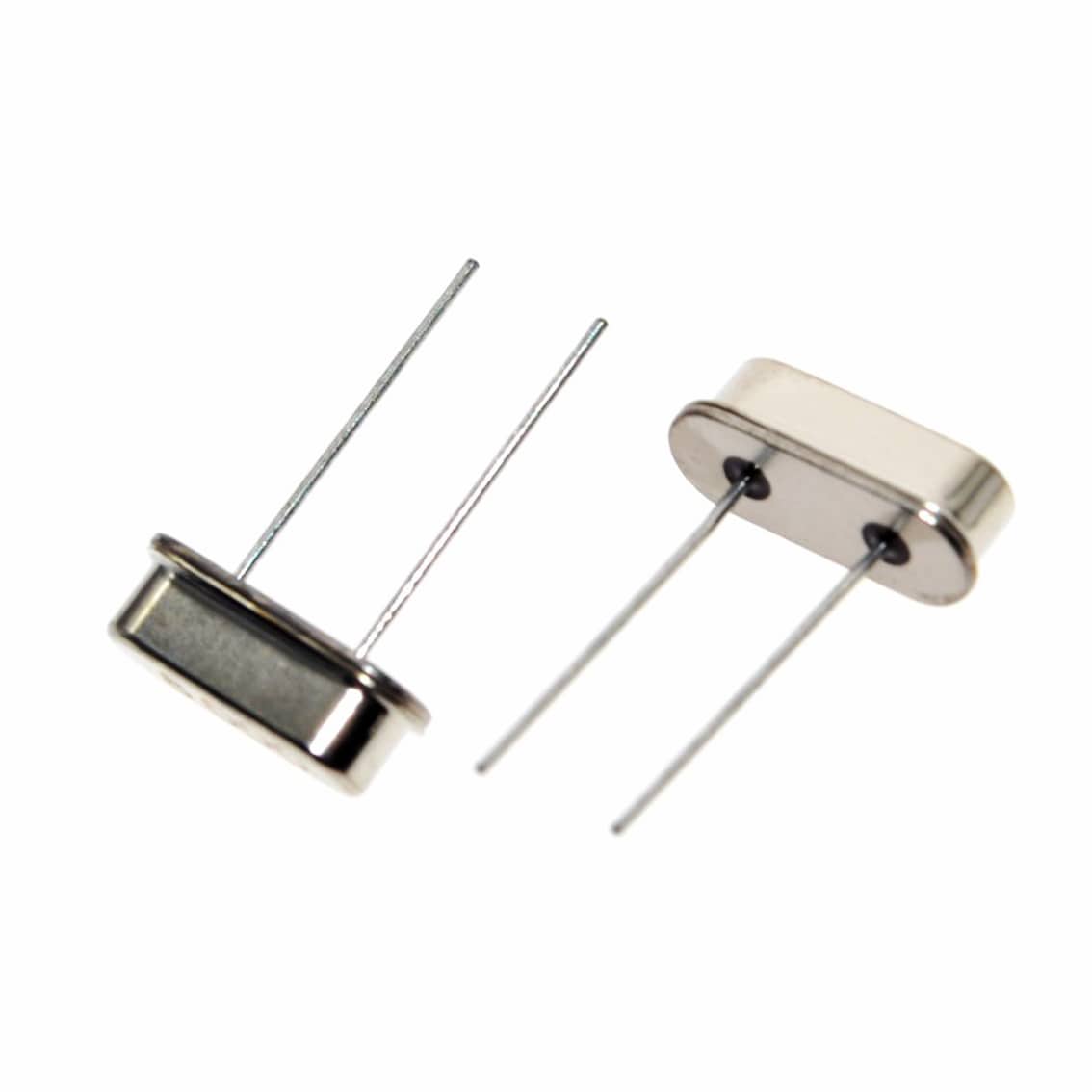

16 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

Pack of 10 16 MHz HC-49S quartz crystal oscillators with ±20 ppm tolerance. Ideal for microcontrollers, timing circuits, and digital electronics.

$13.95

Order Within –

All stock located in Australia.

Availability: 12 in stock

- +

EXPRESS SHIPPING Available.

SKU: PHI1001432
[woocommerce_prl_recommendations id='409642']

Description:

This 16 MHz Quartz Crystal Oscillator in the HC-49S package is a stable and reliable frequency control component for a wide range of digital and microcontroller applications. Designed for precise timing, it ensures accurate clock generation for processors, communication modules, and signal processing circuits.

With a frequency tolerance of ±20 ppm and an operating temperature range of -20°C to +70°C, this crystal provides dependable performance in both hobbyist and professional designs. Supplied in a pack of 10, it’s ideal for development, repairs, or maintaining stock for regular builds.

Specifications:

  • Frequency: 16 MHz
  • Package Type: HC-49S (low profile)
  • Load Capacitance: 20 pF (typical)
  • Frequency Tolerance: ±20 ppm
  • Stability: ±30 ppm
  • Operating Temperature Range: -20°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Shunt Capacitance: ≤ 7 pF
  • Drive Level: 100 µW (typical), 1 mW max
  • Equivalent Series Resistance (ESR): ≤ 40 Ω
  • Mounting: Through-hole
  • Leads: Axial, tinned

Features:

  • 16 MHz standard clock frequency for microcontrollers and digital circuits
  • HC-49S compact through-hole package
  • ±20 ppm tolerance for precise timing applications
  • Compatible with Arduino, PIC, and other development boards
  • Supplied in a bulk pack of 10 for multiple projects or repairs

Contents:

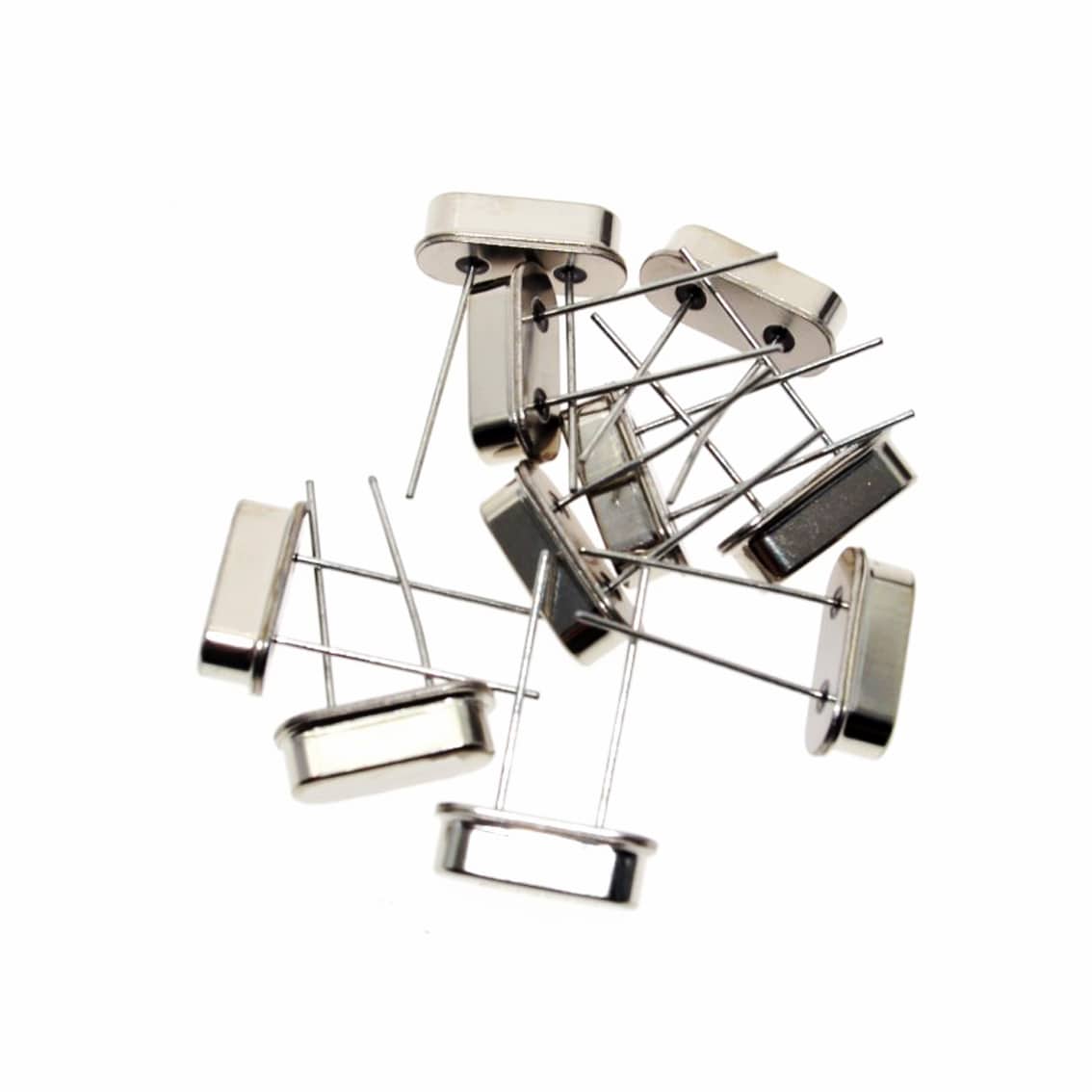

  • 10 x 16 MHz Quartz Crystal Oscillators (HC-49S)
Weight 0.006 kg
Dimensions 70 × 5 × 50 mm
Brand

Type

Frequency

Load Capacitance

Frequency Tolerance

±20 ppm

Frequency Stability

Shunt Capacitance

Maximum Output Power

Operating Temperature

Storage Temperature

Package / Case
