Description:

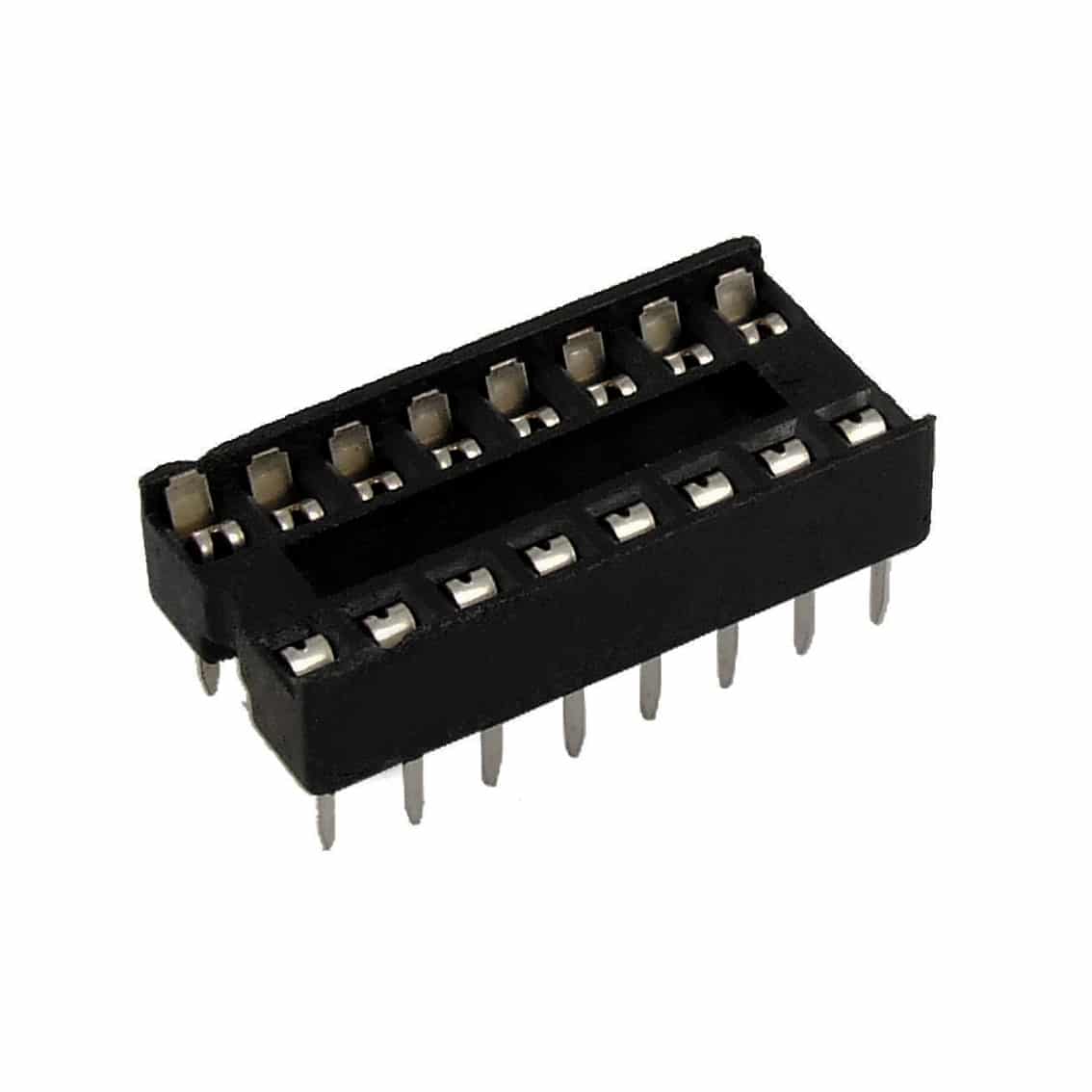

The 16 Pin 0.3 Inch DIL IC Socket – Pack of 5 is designed to provide secure, removable mounting for dual in-line (DIL) integrated circuits with 16 pins. With a standard 7.62 mm (0.3 inch) row spacing and 2.54 mm pin pitch, this socket ensures compatibility with most DIP-16 ICs and standard through-hole PCBs. Whether used in development, repair, or educational environments, these sockets enable safe and damage-free IC insertion and removal.
Constructed with heat-resistant thermoplastic housing and tin- or gold-plated phosphor bronze contacts, the sockets offer durable performance and excellent conductivity. They are commonly used in logic IC applications, timer circuits like the NE555, and microcontroller interfaces. This 5-pack is ideal for electronics hobbyists, repair technicians, and engineers working on prototype or small-batch production PCBs.
Specifications:
- Pin Count: 16 pins
- Socket Type: Dual In-Line (DIL)
- Row Spacing: 7.62 mm (0.3 inch)
- Pin Pitch: 2.54 mm
- Mounting Type: Through-Hole
- Contact Material: Phosphor Bronze
- Contact Plating: Tin or Gold (depending on supplier)
- Housing Material: Thermoplastic or PBT, UL94V-0 rated
- Insertion Force: Low or standard
- Operating Temperature: -40°C to +105°C
- Pack Size: 5 sockets
Features:
- Secure socket for 16-pin DIP ICs
- Facilitates IC replacement without soldering
- Reduces risk of thermal or mechanical damage
- Corrosion-resistant contact plating ensures long-term reliability
- Perfect for prototyping, repairs, and circuit experimentation
Contents:
- 5 x 16 Pin 0.3 Inch DIL IC Sockets
