Description:
The GX16-3 3-Pin Metal Male Female Aviation Plug Connector is a robust and versatile solution for secure electrical connections in various applications. Its durable zinc alloy body and copper alloy pins ensure reliable performance and longevity. The threaded coupling mechanism provides a firm attachment, making it suitable for environments subject to vibration and mechanical stress. Commonly used in aviation, industrial equipment, data acquisition systems, and communication devices, the GX16-3 connector is designed to transmit both power and signals efficiently.

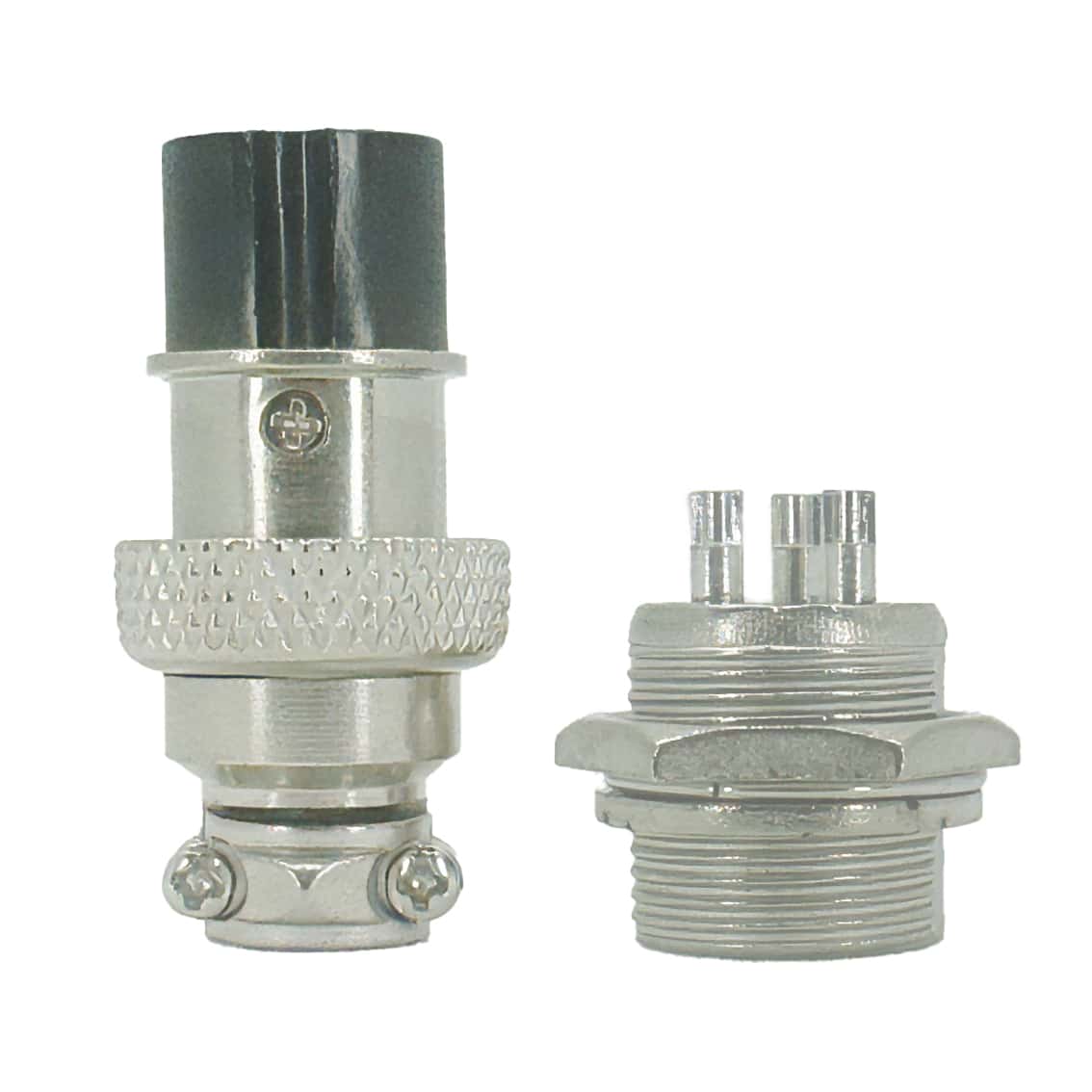

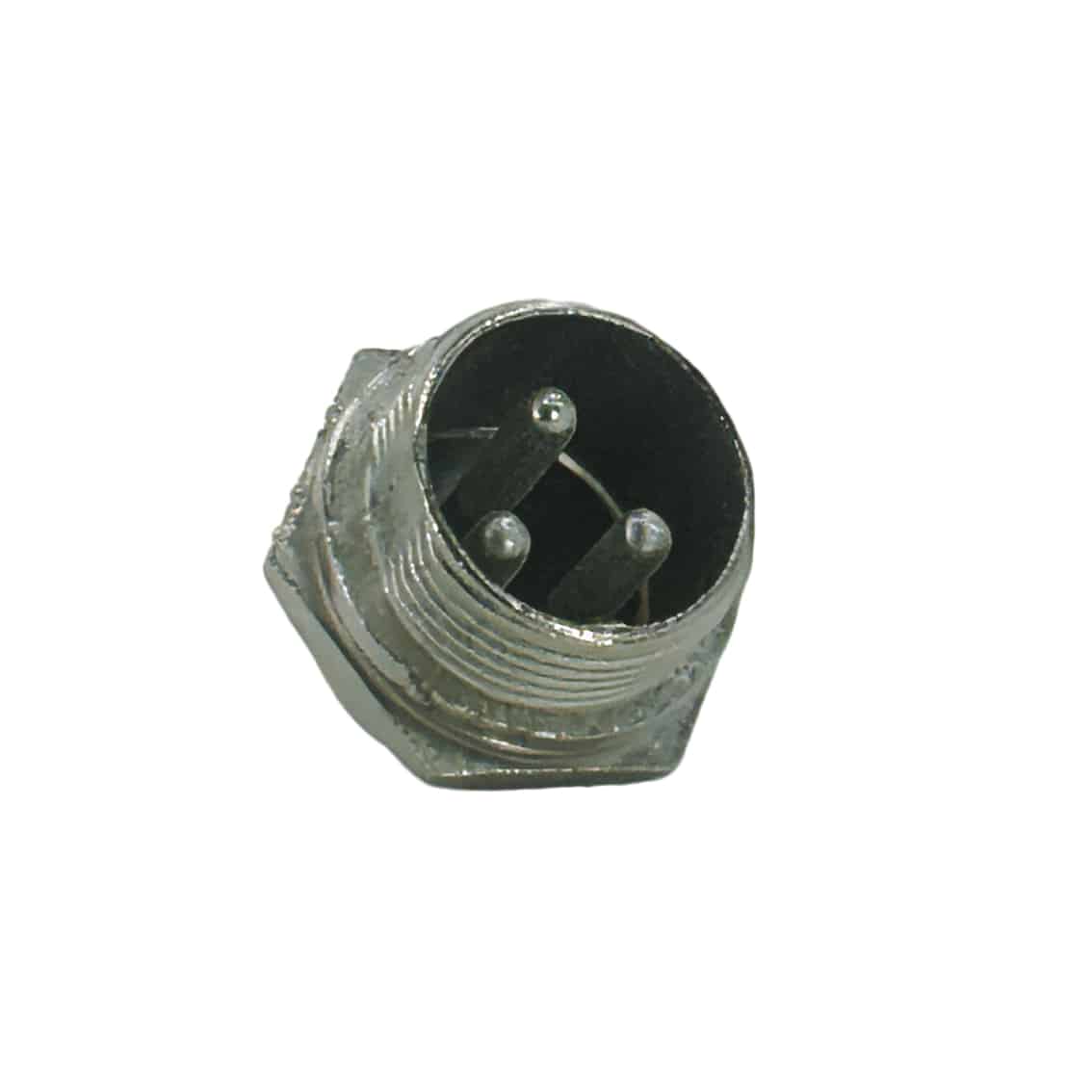

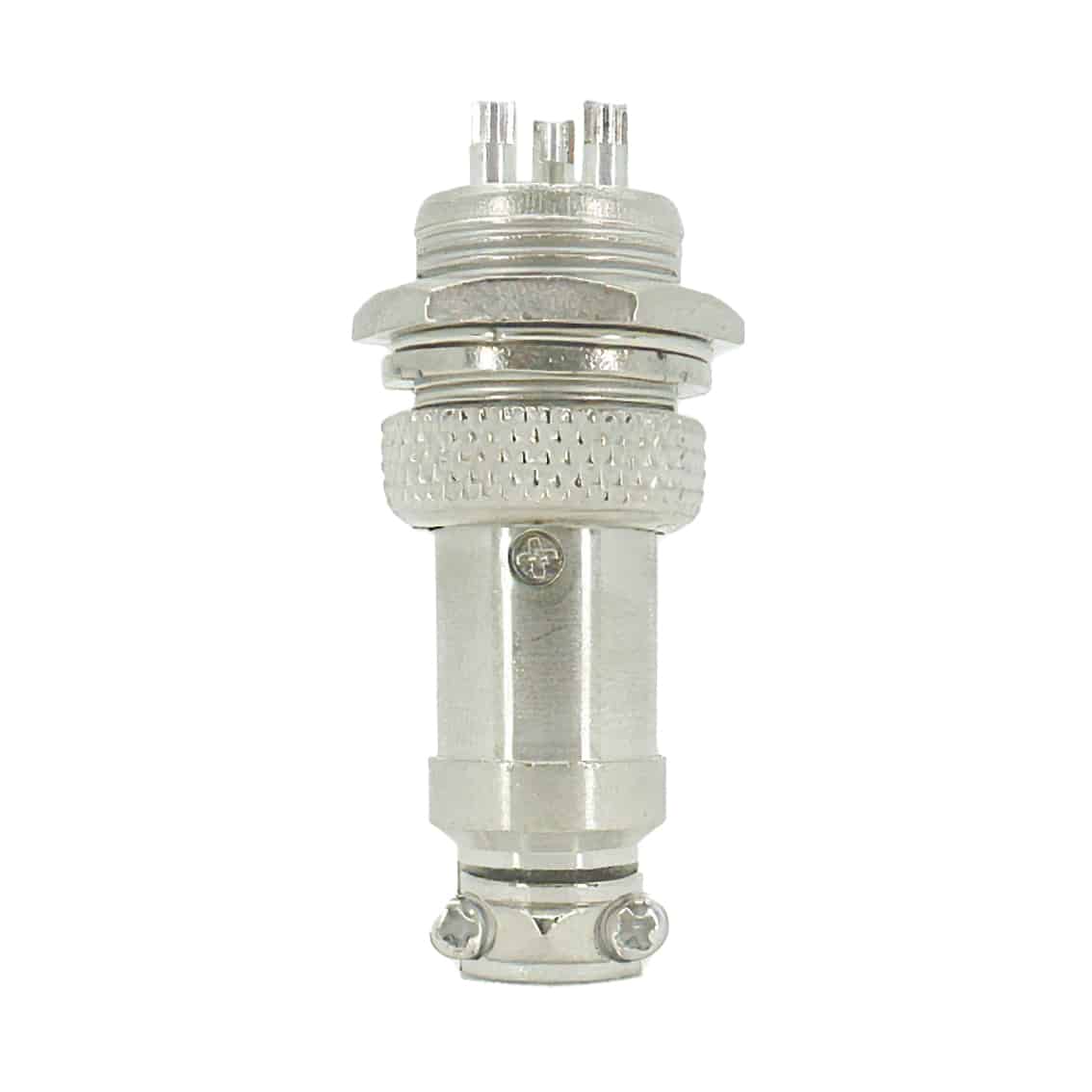

This connector set includes both male and female components, facilitating straightforward panel mounting with a standard 16mm hole size. The solder cup terminals allow for secure wire connections, accommodating cables with a maximum diameter of 7mm. With a rated current of 5A at 250V, the GX16-3 connector is suitable for low to medium-power applications. Its compact design, with the male connector measuring 35mm in length and 18mm in diameter and the female connector measuring 20mm in both length and diameter, ensures ease of integration into various systems.
Specifications:
- Model: GX16-3
- Number of Pins: 3
- Pin Diameter: 2.5mm
- Material: Zinc alloy body; Copper alloy pins
- Mounting Hole Diameter: 16mm
- Rated Voltage: 250V
- Rated Current: 5A
- Contact Resistance: ≤0.005Ω
- Insulation Resistance: ≥1000MΩ
- Operating Temperature: -40°C to +85°C
- Termination Method: Solder cup
- Maximum Cable Diameter: 7mm
- Environmental Resistance: Waterproof and airproof
Features:
- Durable metal construction for enhanced longevity
- Threaded coupling mechanism ensures secure connections
- Standard 16mm panel mounting facilitates easy installation
- Solder cup terminals provide reliable wire connections
- Suitable for transmitting both power and signals
Contents:
- 2 x GX16-3 3-Pin Metal Male Female Aviation Plug Connector Sets
