Description:

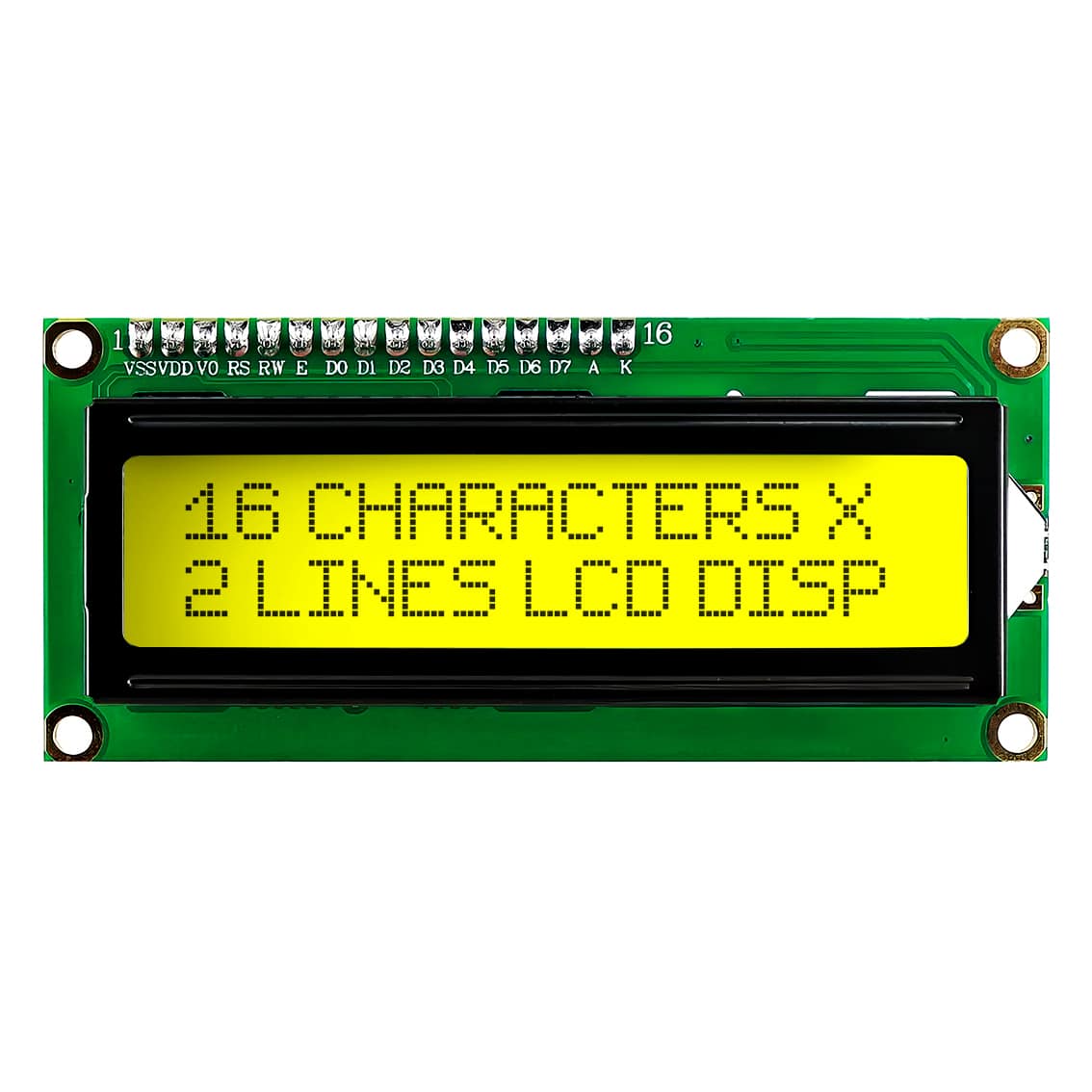

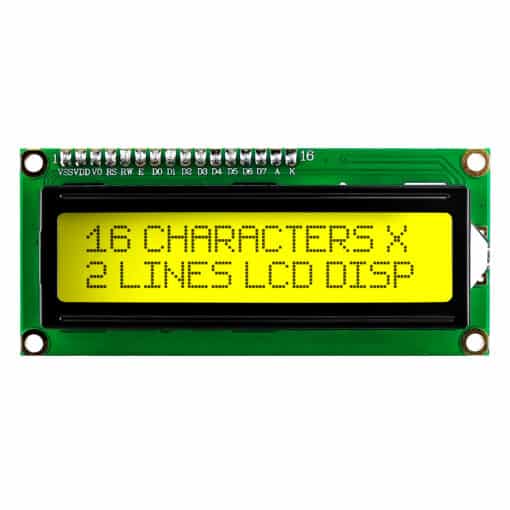

The 1602 Black on Yellow LCD Display Board Module is a versatile and easy-to-use character LCD, perfect for displaying text in embedded systems. With a 16×2 display format, this module can show 16 characters per line on two lines, making it ideal for various applications, including industrial devices, security systems, medical equipment, and handheld devices. The black characters on a yellow-green background ensure excellent readability.
This module is built around the industry-standard HD44780 compatible controller, providing compatibility with a wide range of microcontrollers such as Arduino, Raspberry Pi, PIC, AVR, ARM, and 8051. It supports 4-bit and 8-bit parallel interfaces, offering flexibility in different project setups. Additionally, the module can be easily interfaced using I2C, saving valuable I/O pins on your microcontroller.
Specifications:
- Display Format: 16×2 characters
- Backlight: Yellow-Green LED
- Character Colour: Black
- Controller: HD44780 compatible
- Interface: 4-bit/8-bit parallel, I2C (optional)
- Operating Voltage: 5V or 3.3V
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Dimensions: 122.02 x 44.02 x 13.6 mm
- Viewing Area: 64.5 x 13.8 mm
- Character Size: 2.95 x 5.55 mm
- Compliance: RoHS
Features:
- Easy to interface with various microcontrollers
- Supports both 4-bit and 8-bit parallel communication
- Compatible with I2C interface for reduced pin usage
- High contrast display with excellent readability
- Robust construction suitable for a wide temperature range
Contents:
- 1 x 1602 Black on Yellow LCD Display Board Module
