1602 White LCD Display Board Module

25 people have recently viewed this product!

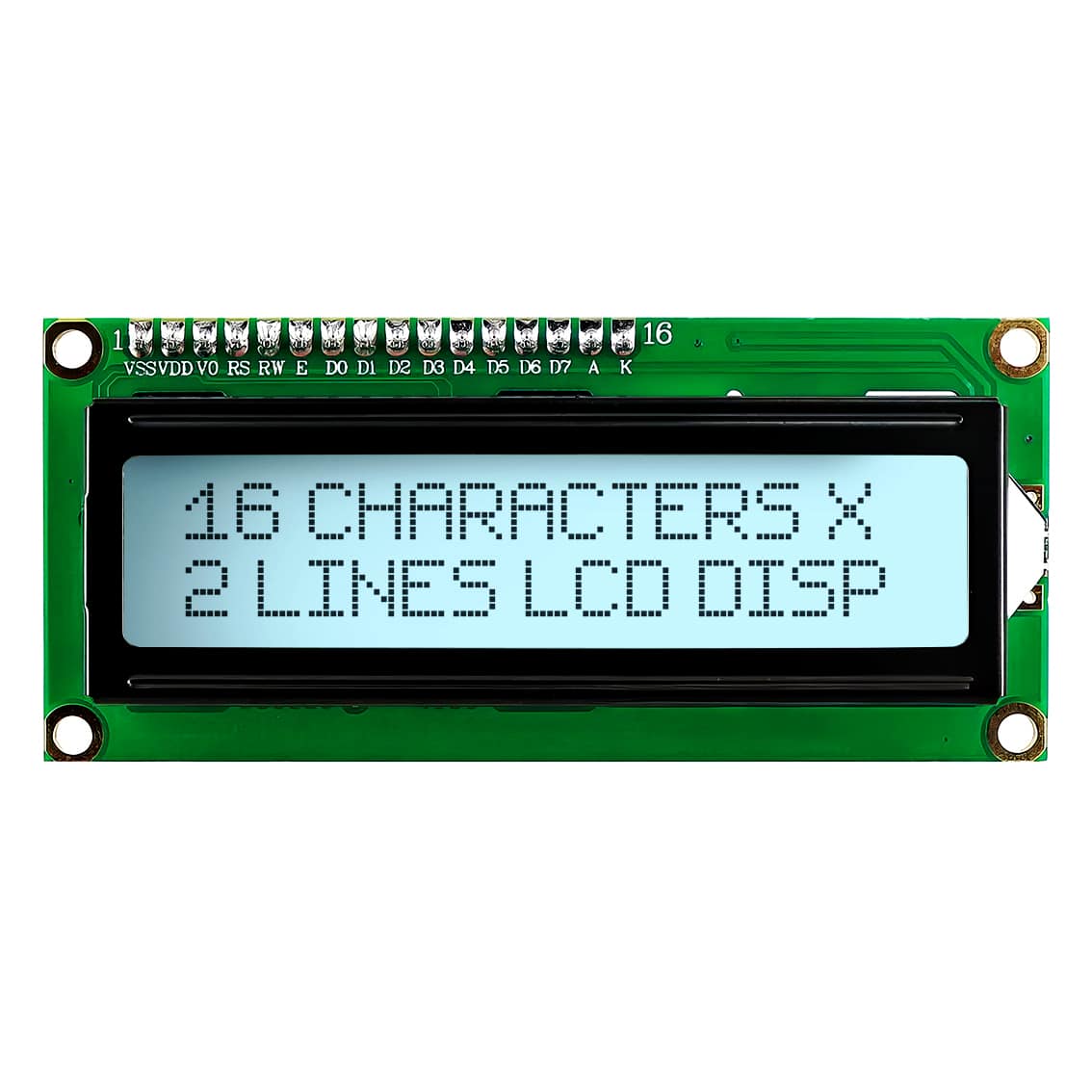

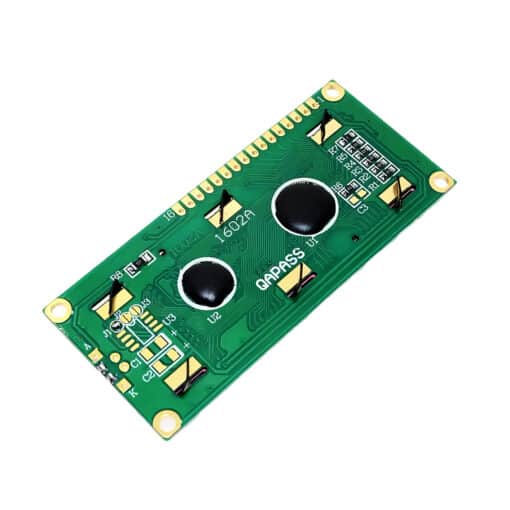

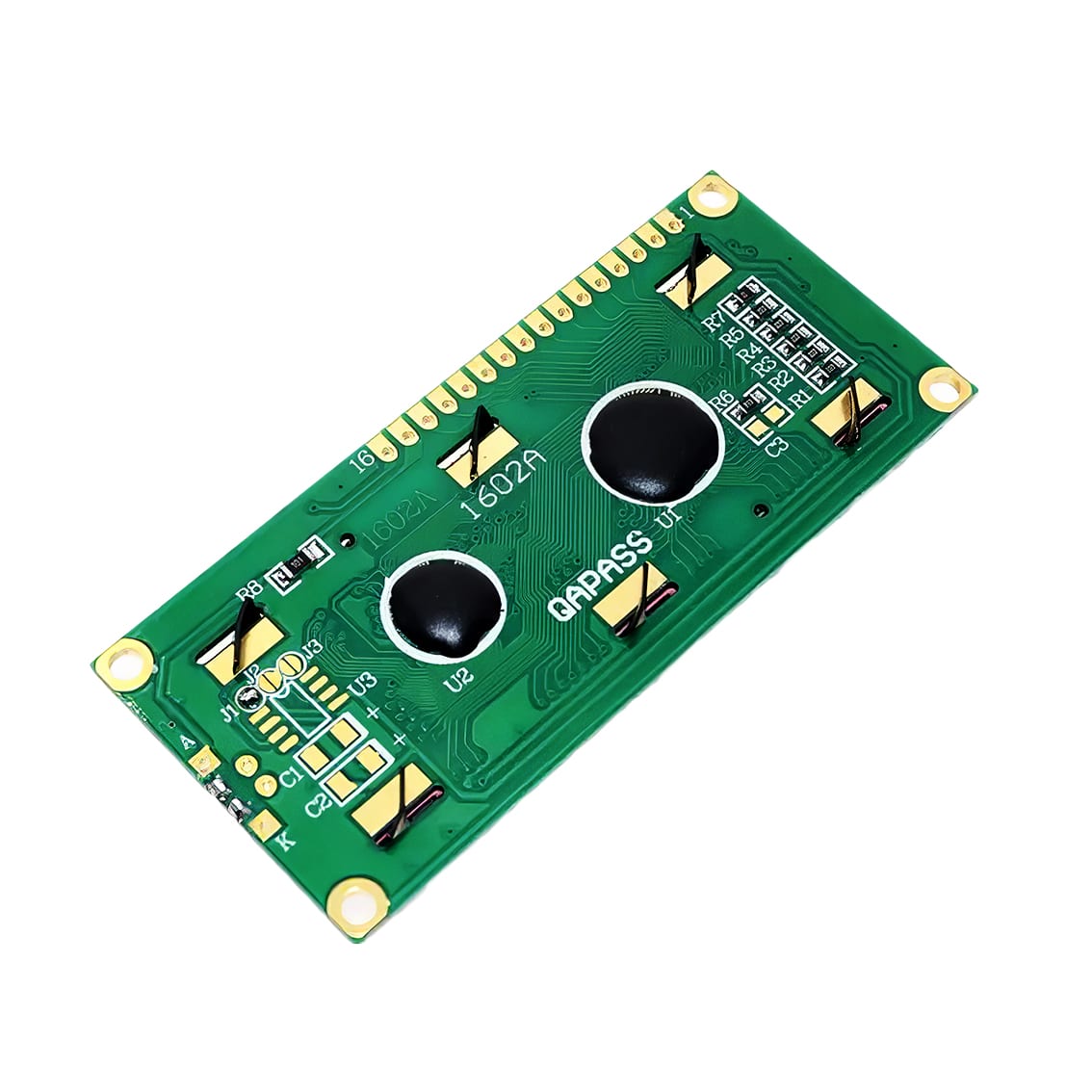

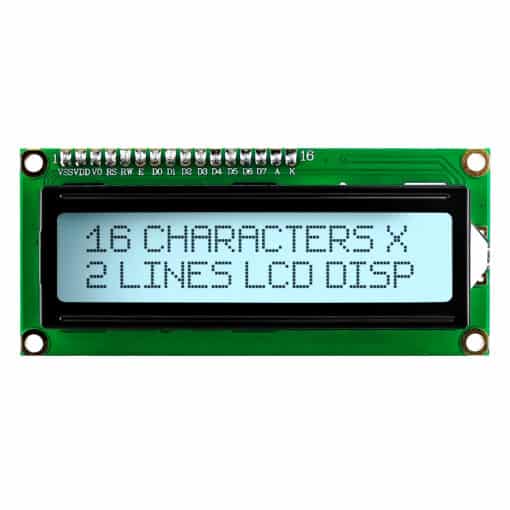

1602 White LCD Display Board Module

The 1602 White LCD Display Board Module provides a 16×2 character display with dark characters on a white background, perfect for embedded applications. It supports both parallel and I2C interfaces, offering high contrast and excellent readability.

$19.95

Order Within –

Availability: 28 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003263

You May Also Like...

Description:

The 1602 White LCD Display Board Module is a versatile character display module that shows 16 characters per line across two lines. Featuring a high-contrast white backlight with dark characters, this module ensures excellent visibility and readability, making it ideal for various applications, including embedded systems, industrial devices, and DIY projects.

Built around the industry-standard HD44780 compatible controller, this LCD module supports both 4-bit and 8-bit parallel interfaces, making it easy to integrate with a variety of microcontrollers such as compatible with Arduino, compatible with Raspberry Pi, PIC, AVR, ARM, and 8051. Additionally, it is ready to support an I2C communication board, saving valuable I/O pins on your microcontroller. Its robust construction and wide operating temperature range make it suitable for demanding environments.

Specifications:

  • Display Format: 16×2 characters
  • Backlight: White LED
  • Character Colour: Dark
  • Controller: HD44780 compatible
  • Interface: 4-bit/8-bit parallel, I2C (optional)
  • Operating Voltage: 5V or 3.3V
  • Operating Temperature: -20°C to 70°C
  • Storage Temperature: -30°C to 80°C
  • Dimensions: 80.0 x 36.0 x 12.0 mm
  • Viewing Area: 64.5 x 13.8 mm
  • Character Size: 2.95 x 5.55 mm
  • Compliance: RoHS

Features:

  • Easy to interface with various microcontrollers
  • Supports both 4-bit and 8-bit parallel communication
  • High contrast display with excellent readability
  • Robust construction suitable for a wide temperature range
  • Compatible with I2C interface for reduced pin usage

Contents:

  • 1 x 1602 White LCD Display Board Module
Weight 0.036 kg
Dimensions 100 × 70 × 10 mm
Brand

Type

Display Format

Backlight

Character Color

Interface

,

Chipset

Operating Voltage

,

Viewing Area

Character Size

Operating Temperature
