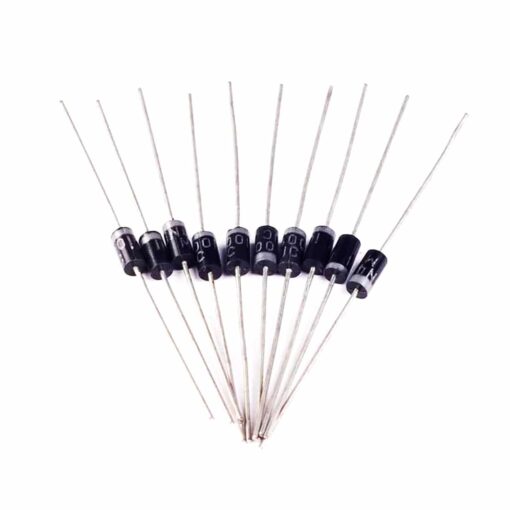

1N4001 Diode Rectifier – Pack of 50

35 people have recently viewed this product!

1N4001 Diode Rectifier – Pack of 50

5 out of 5 based on 1 customer rating
(1 customer review)

The 1N4001 Diode Rectifier is a very popular and common power blocking diode. The 1N4001 Is great for reverse polarity protection, kickback protection, general rectification and more.

$11.95

Order Within –

Availability: 53 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001475

Description:

The 1N4001 Diode Rectifier is a very popular and common power blocking diode. The 1N4001 is great for reverse polarity protection, kickback protection, general rectification and more.

The 1N4001 Diode Rectifier can protect up to 50V of reverse voltage with approx. 0.7V drop and can handle 1A continuously.



Specifications:

  • Max recurrent peak reverse voltage: 50V
  • Max average forward output current: 1A
  • Max forward voltage drop per element @ 1.0A DC: 1.1V
  • Typical junction capacitance: 15pF
  • Package: DO-41
  • Operating temperature: -65C – 175C



Contents:

  • 50 x 1N4001 Diode Rectifier
Weight 0.008 kg
Dimensions 100 × 5 × 70 mm
