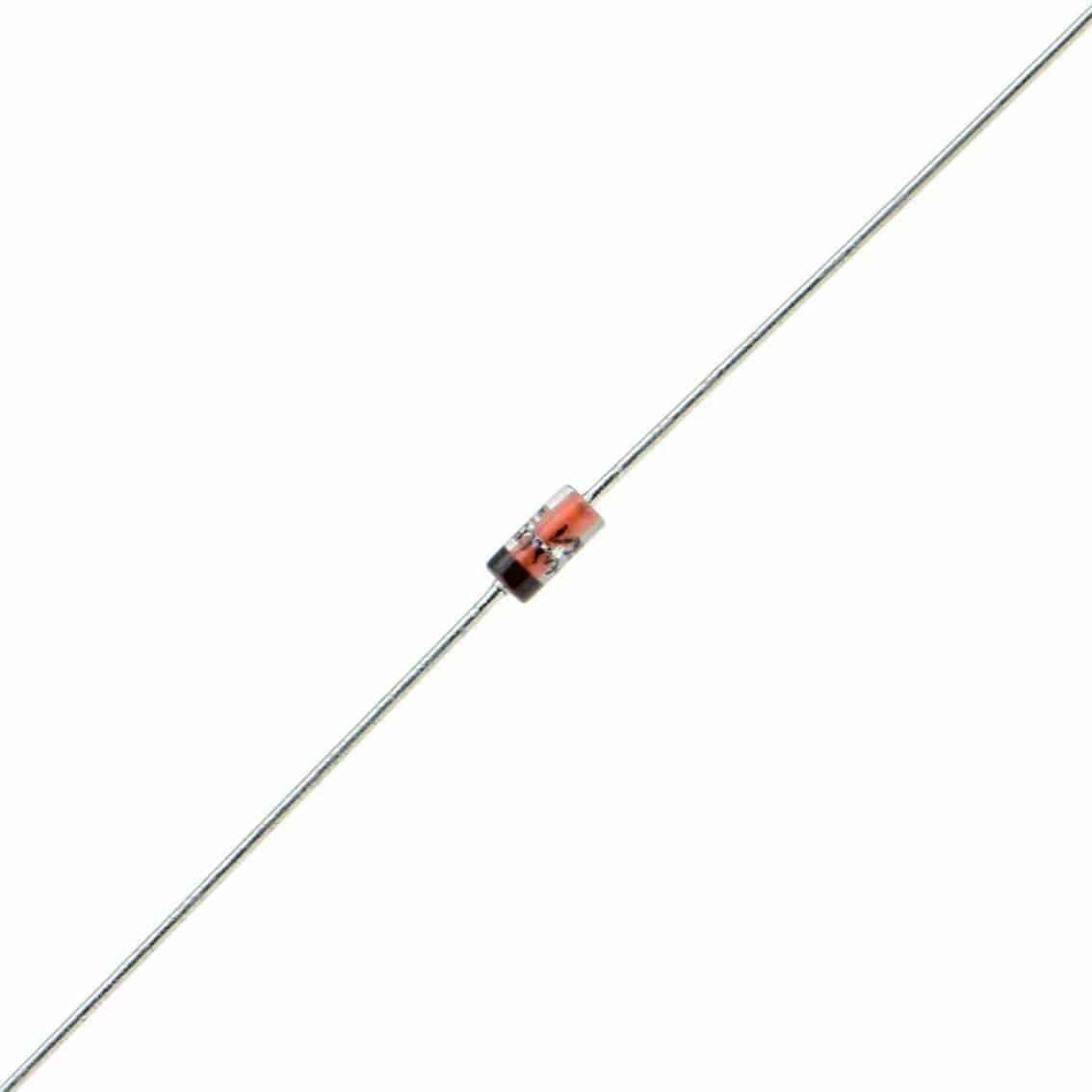

1N4148 High Speed Fast Switching Diode – Pack of 50

$11.95

The 1N4148 is a high-speed fast switching diode, it can switch in 4nS of time.

In stock

SKU: PHI1051476 Category: Tag:

Description:

The 1N4148 is a high-speed fast switching diode, it can switch in 4nS of time.

The 1N4148 is commonly used as a rectifier.

Specifications:

  • Max recurrent peak reverse voltage: 100V
  • Max peak repetitive reverse voltage: 75V
  • Max RMS reverse voltage: 53V
  • Max forward continuous current: 300mA
  • Max average forward output current: 0.15A
  • Max forward voltage drop per element @ 1.0A: 1.0V
  • Max reverse recovery time: 4nS
  • Typical junction capacitance: 4pF
  • Package: DO-35
  • Operating temperature: -65C – 150C

Contents:

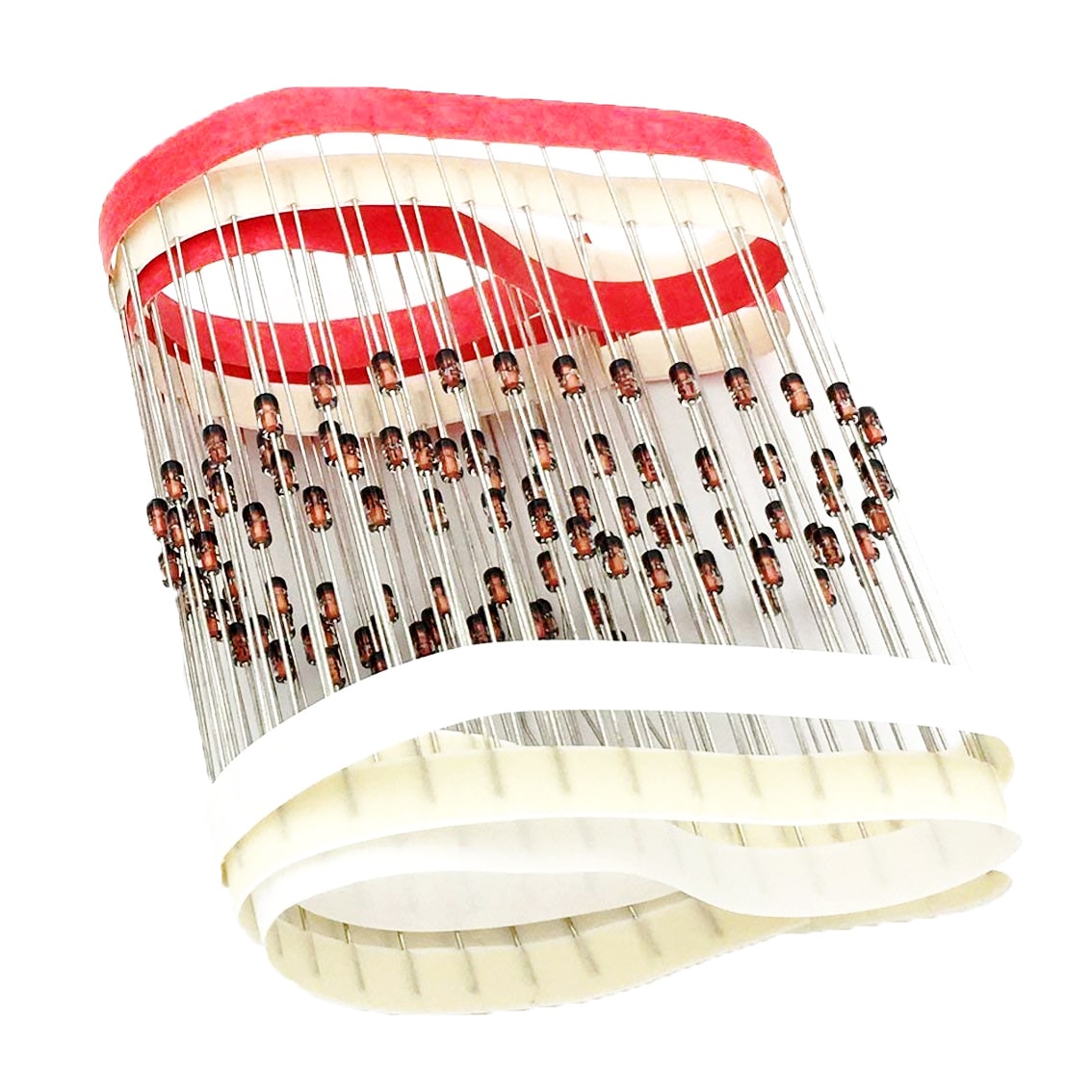

  • 50 x 1N4148 High-Speed Fast Switching Diode
