Description:

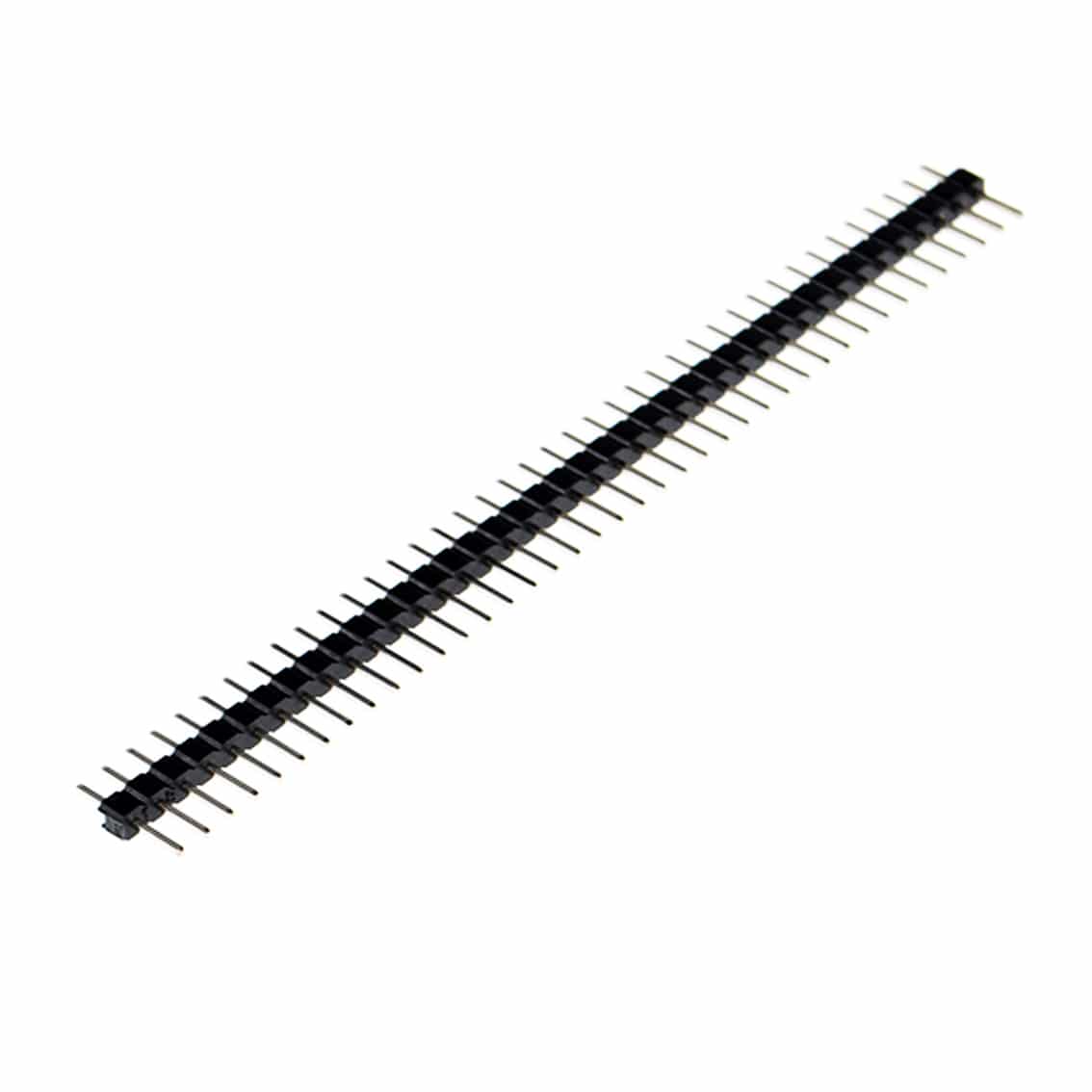

The 2.0mm Pitch 40-Way Straight Male Pin Header is a versatile connector designed for efficient board-to-board connections in compact electronic assemblies. Featuring a 2.0mm (0.079″) pin pitch, it offers a denser alternative to standard 2.54mm headers, making it ideal for space-constrained applications. Each header consists of 40 pins in a single row, which can be easily cut to the desired length, providing flexibility for various prototyping and custom PCB projects.
Constructed with durable materials, including brass contacts and a thermoplastic insulator, this pin header ensures reliable electrical performance and mechanical stability. Its through-hole design facilitates secure soldering onto PCBs, enhancing connection integrity. This pack includes five headers, offering ample components for multiple projects or replacements.
Specifications:
- Number of Pins: 40 per header
- Pin Pitch: 2.0mm (0.079″)
- Orientation: Straight (Vertical)
- Row Configuration: Single Row
- Contact Material: Brass
- Contact Plating: Tin
- Insulator Material: Thermoplastic (UL94V-0 rated)
- Current Rating: 1A
- Voltage Rating: 250V AC
- Operating Temperature Range: -40°C to +105°C
- Pin Diameter: Approximately 0.6mm
- Pin Length: Approximately 8.7mm
Features:
- Standard 2.0mm pitch compatible with compact PCB designs
- Breakable 40-pin strip allows customization to required lengths
- Durable brass contacts with tin plating for reliable conductivity
- Thermoplastic insulator rated UL94V-0 for enhanced safety
- Through-hole mounting ensures secure PCB attachment
- Pack of 5 headers suitable for multiple projects
Contents:
- 5 x 2.0mm Pitch 40-Way Straight Male Pin Headers
