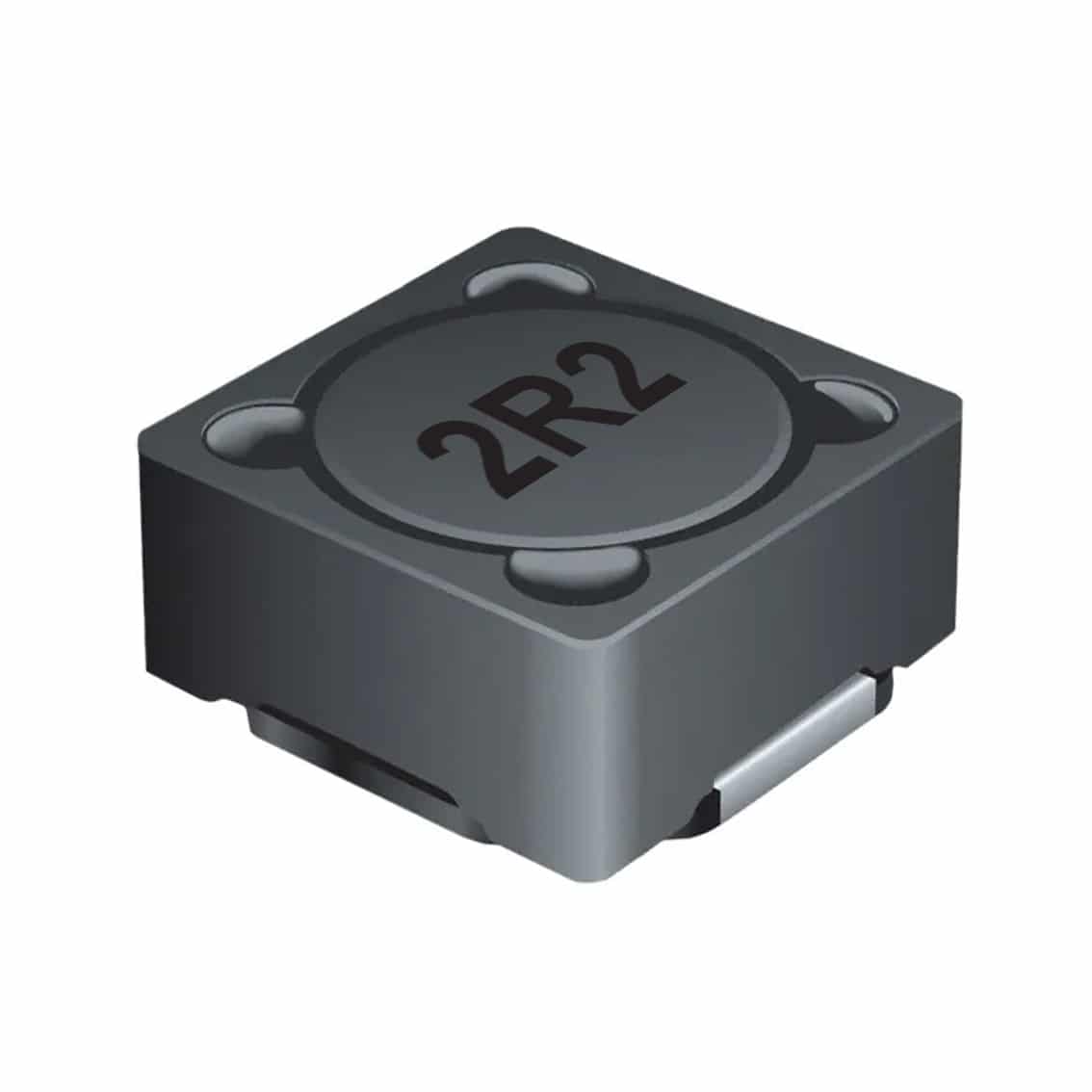

This SMD Power Inductor has an inductance of 2.2uH with a maximum DC current of 8.2A and maximum resistance of 10.5mΩ.
It comes in a pack of 10 and has a tolerance of + / – 30%.
An SMD Power Inductor is used to store energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.
- Inductance: 2.2 uH
- Max DC Current: 8.2 A
- Max DC Resistance: 10.5 mΩ
- Self-Resonant Frequency: 40 MHz
- Tolerance: ± 30 %
- Package / Case: 1260
- Shielded: Yes
- Core Material: Ferrite
- Inductor Type: Fixed Power Inductor
- Type: Power Choke
- Mounting Type: SMD / SMT
- Operating Temperature: -55 to +125 degrees Celsius
- Weight: 4.6g
- Dimensions: 12.5mm x 12.5mm x 6mm
- 10 x 2.2uH SMD Power Inductor
