Description:

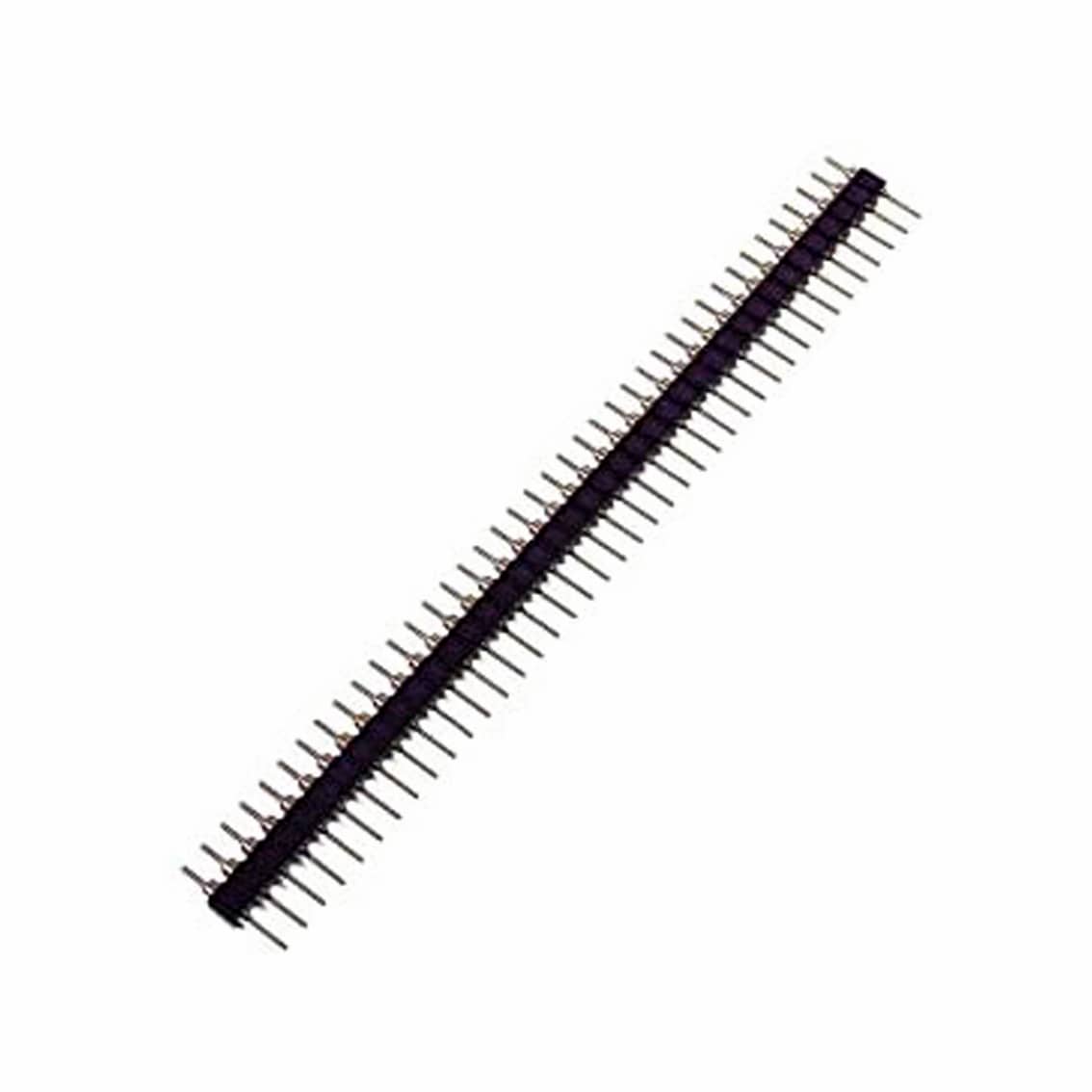

The 2.54mm Turned Pin Header is a high-quality interconnect component designed for robust and precise connections between PCBs, headers, and sockets. Featuring 40 turned (machined) male pins on each side, this dual-ended SIL header ensures reliable electrical contact and mechanical strength. Each pin is precision-machined, making it ideal for use in applications that require repeated mating cycles or enhanced conductivity.
With a standard 2.54mm (0.1”) pitch, this male-to-male header is compatible with standard sockets, breadboards, and through-hole PCBs. The turned pin design reduces insertion force and ensures secure connectivity with female connectors. This pack of 5 is excellent for prototyping, modular PCB assemblies, or replacing worn header pins in precision electronics.
Specifications:
- Pin Count: 40 pins per header
- Pitch: 2.54mm (0.1″)
- Type: Single In Line (SIL), Male to Male
- Pin Style: Turned (machined) round pins
- Pin Diameter: Approx. 0.6mm
- Contact Material: Brass, gold-plated (typical)
- Body Material: Thermoplastic
- Mounting: Plug-in or through-hole
- Length: Approx. 12mm (6mm per side above housing)
- Operating Temperature: -40°C to +105°C
Features:
- Turned round pins for low insertion force and high durability
- Standard 2.54mm pitch compatible with most development boards
- Gold-plated contacts ensure high conductivity and corrosion resistance
- Male-to-male configuration ideal for board-to-board interconnects
- Pack of 5 headers suitable for modular design and prototyping
Contents:
- 5 x 40 Way SIL Turned Male to Male Pin Headers (2.54mm Pitch)
