Description:

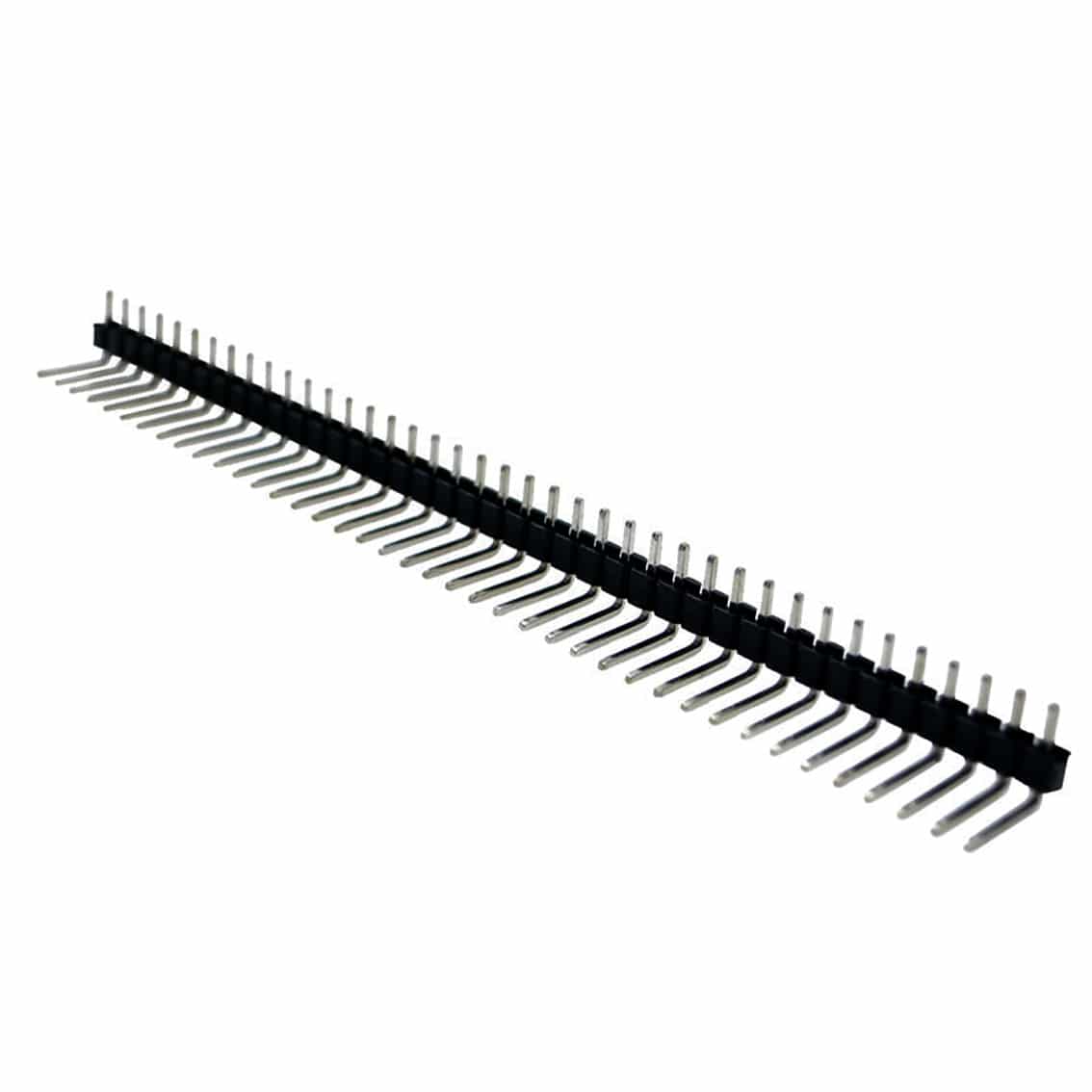

The 2.54mm Pitch 40-Way Right-Angled Male Pin Header is a versatile connector designed for efficient board-to-board connections in electronic assemblies. It features a standard 2.54mm (0.1″) pin pitch, ensuring compatibility with a wide range of PCBs and breadboards. The right-angled configuration facilitates parallel connections to the board surface, optimizing space and routing flexibility in compact designs. Each header consists of 40 pins in a single row, which can be easily cut to the desired length, providing flexibility for various prototyping and custom PCB projects.
Constructed with durable materials, including brass contacts and a thermoplastic insulator, this pin header ensures reliable electrical performance and mechanical stability. Its through-hole design facilitates secure soldering onto PCBs, enhancing connection integrity. This pack includes five headers, offering ample components for multiple projects or replacements.
Specifications:
- Number of Pins: 40 per header
- Pin Pitch: 2.54mm (0.1″)
- Orientation: Right-Angle
- Row Configuration: Single Row
- Contact Material: Brass
- Contact Plating: Tin
- Insulator Material: Thermoplastic (UL94V-0 rated)
- Current Rating: 3A
- Voltage Rating: 250V AC
- Operating Temperature Range: -40°C to +105°C
- Pin Diameter: Approximately 0.6mm
- Short Pin Length: 2mm
- Long Pin Length: 5mm
Features:
- Standard 2.54mm pitch compatible with common PCB designs
- Right-angle design for parallel board connections
- Breakable 40-pin strip allows customization to required lengths
- Durable brass contacts with tin plating for reliable conductivity
- Thermoplastic insulator rated UL94V-0 for enhanced safety
- Through-hole mounting ensures secure PCB attachment
- Pack of 5 headers suitable for multiple projects
Contents:
- 5 x 2.54mm Pitch 40-Way Right-Angled Male Pin Headers
