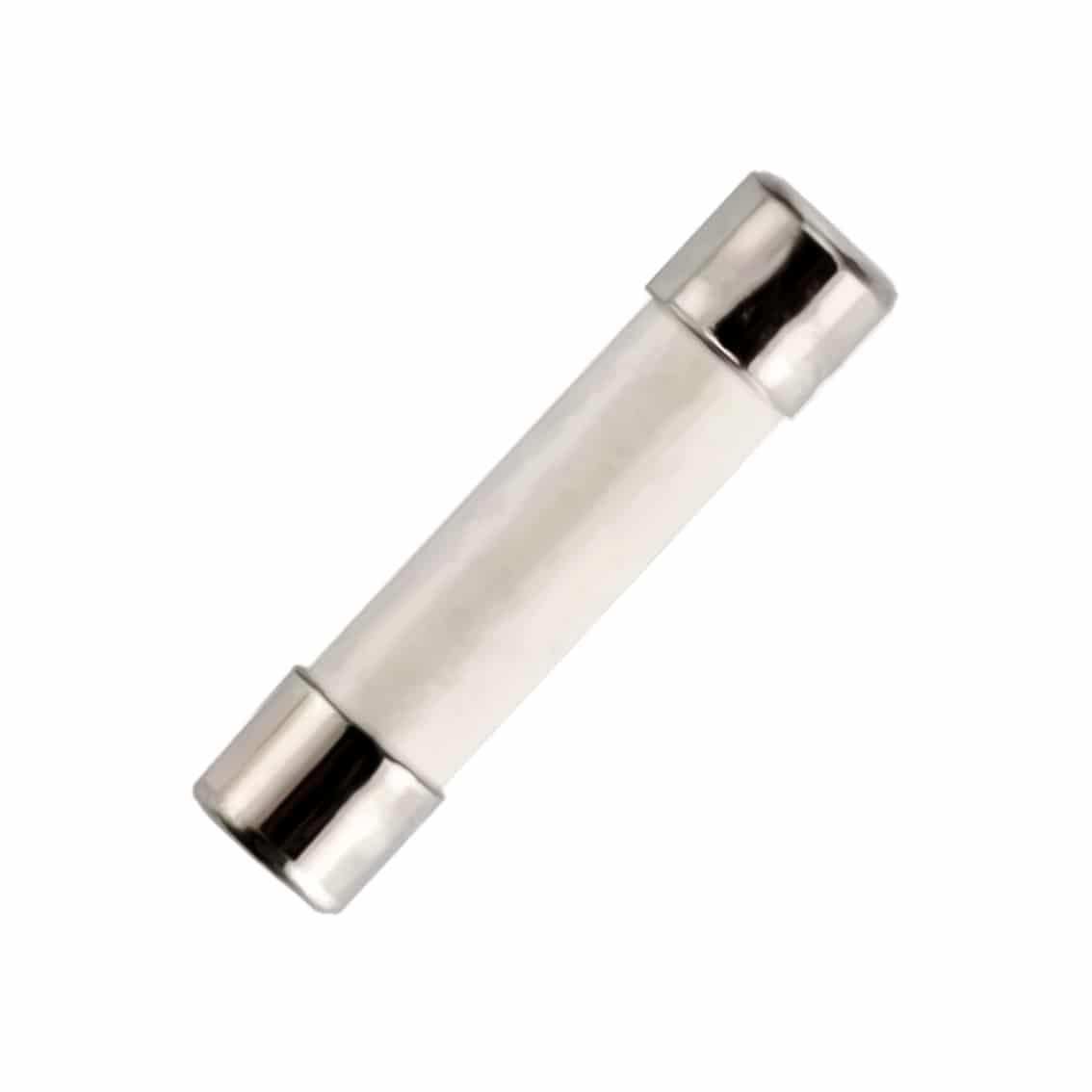

These Ceramic fuses are commonly used in precision type equipment that requires a fast and rapid response.
They are fast blowing fuses that are sand filled and have a current rating of 20A and voltage of 250V in a 5mm x 20mm housing.
- Rated Voltage: 250 V
- Rated Current: 20A
- Type: Fast Blow Fuse
- Case: Ceramic body
- Operating Temperature: –55⁰C to +125⁰C
- Weight: 0.16

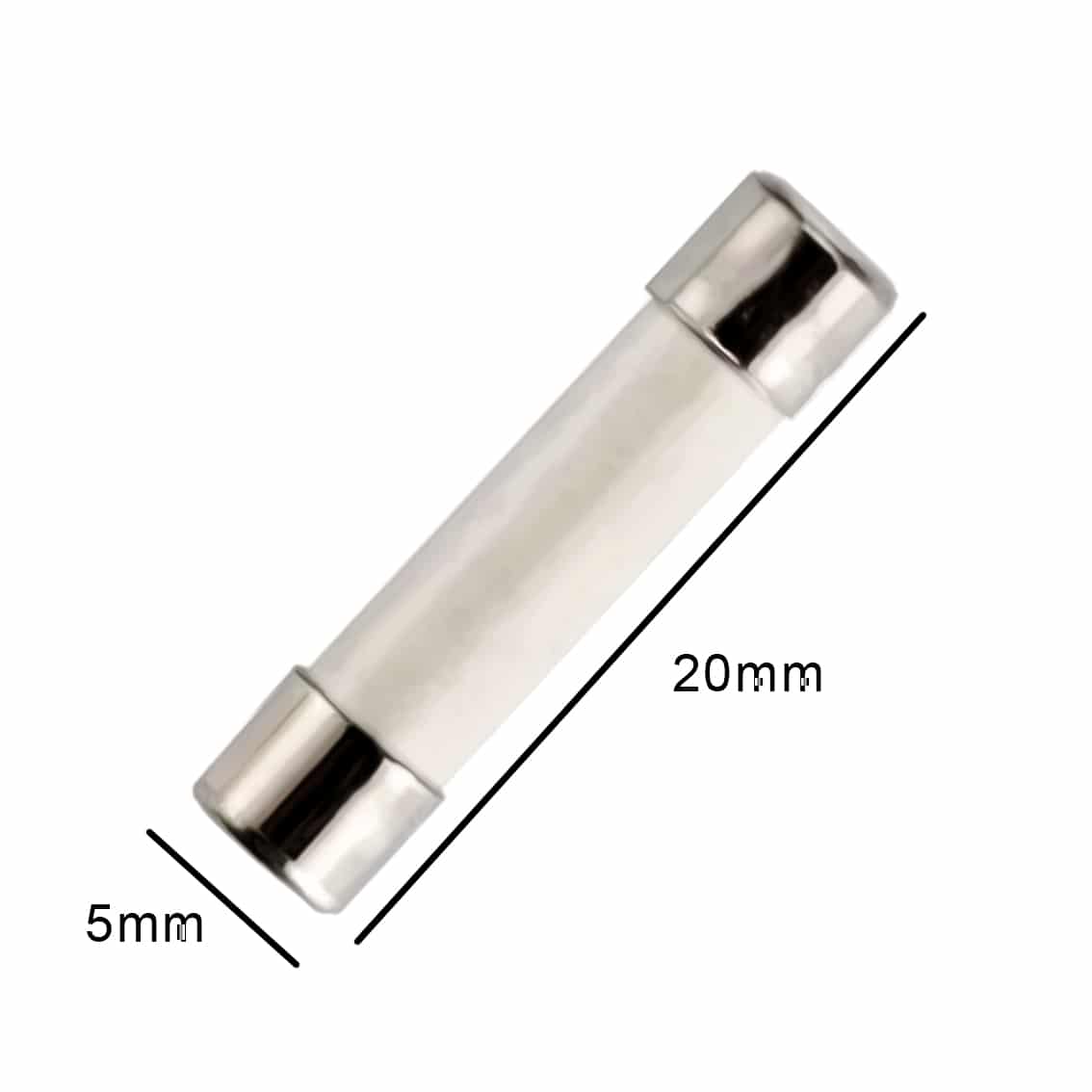

- Dimensions: 20 mm x 5.2 mm
- 15 x 20A Ceramic Fast Blow Fuse – 250V 5x20mm
