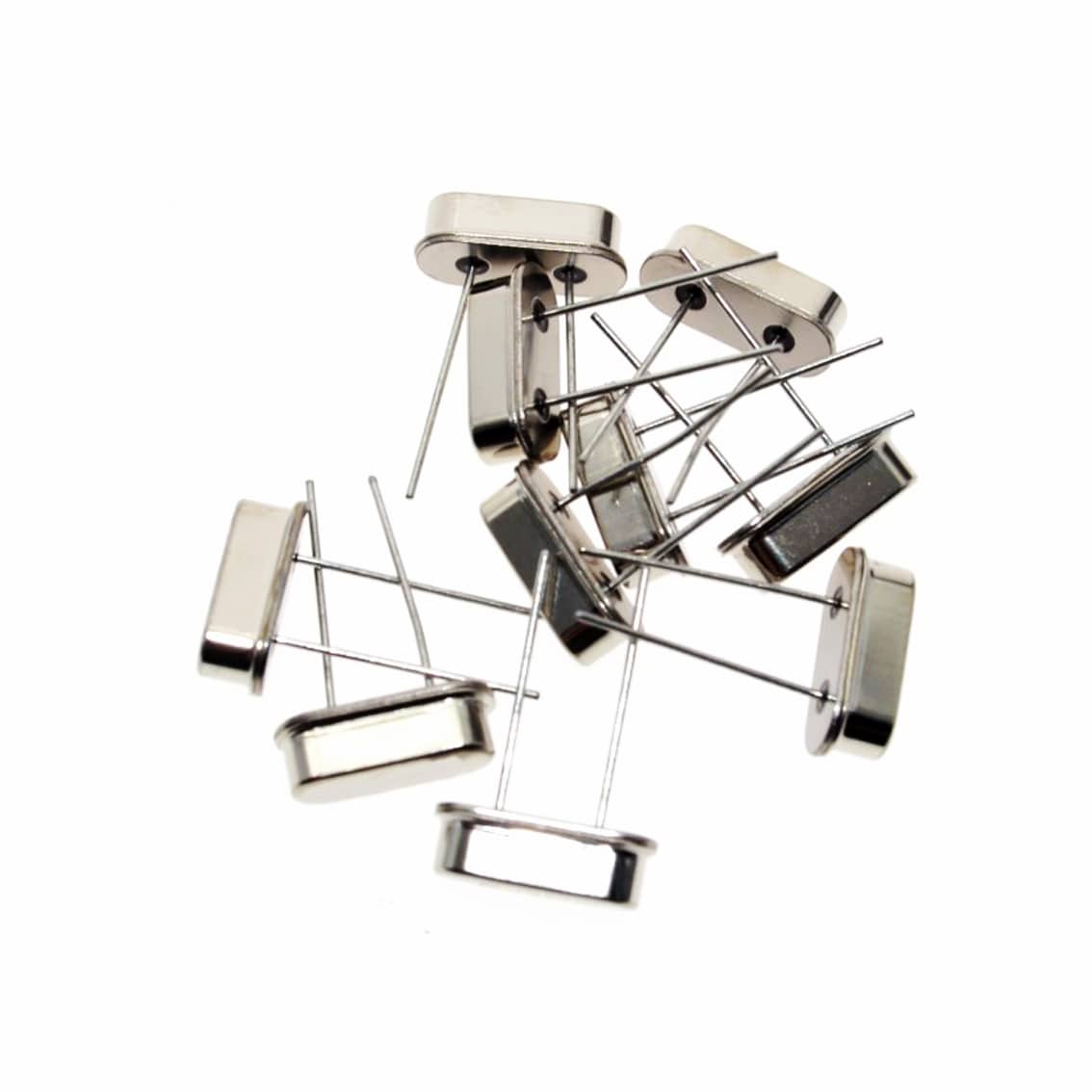

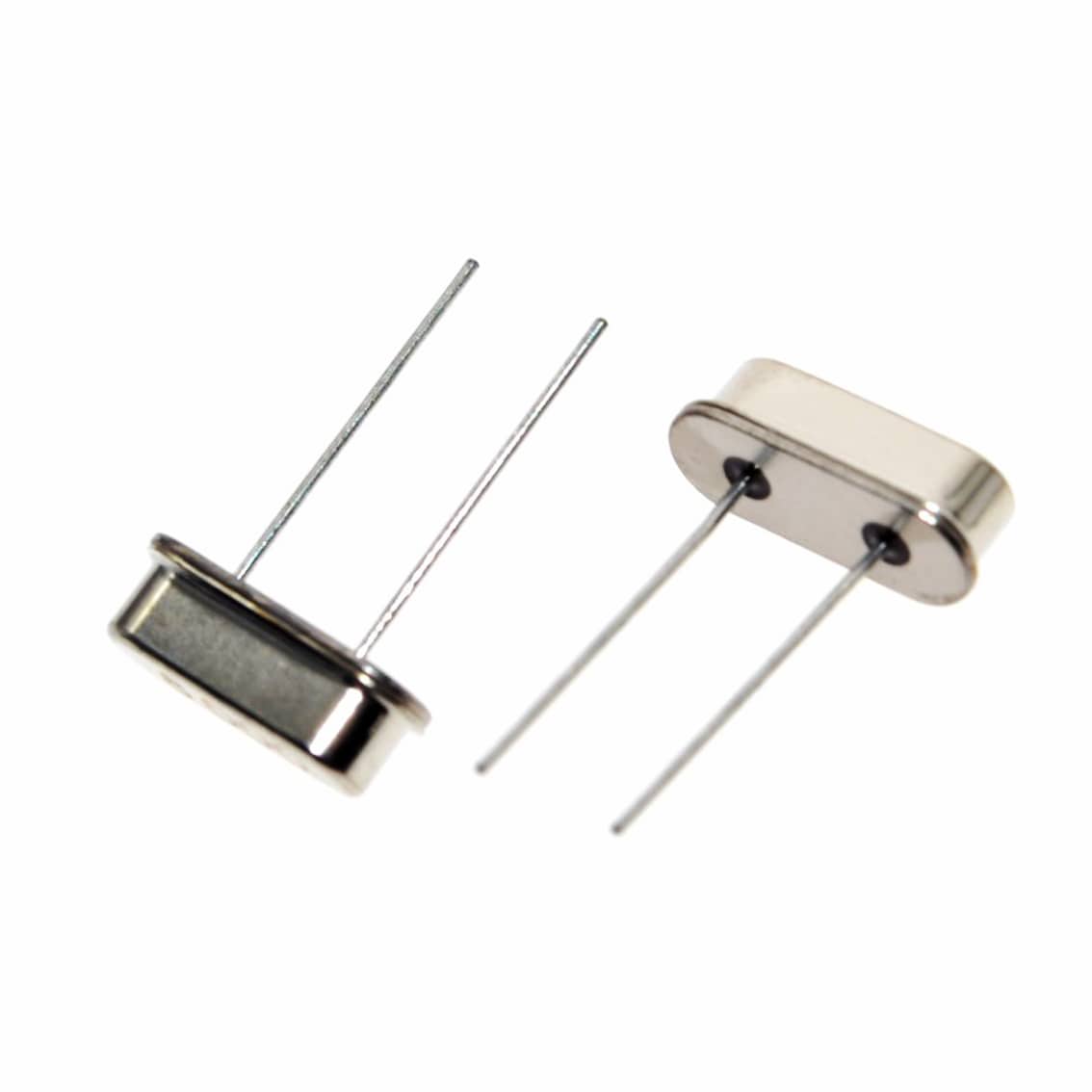

22.1184 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

42 people have recently viewed this product!

22.1184 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

22.1184 MHz HC-49S quartz crystal oscillators with ±30 ppm tolerance, perfect for UART, digital audio, and timing applications. Supplied in a 10-pack.

$14.95

Order Within –

All stock located in Australia.

Availability: 29 in stock

- +

EXPRESS SHIPPING Available.

SKU: PHI1002505

Description:

The 22.1184 MHz Quartz Crystal Oscillator in HC-49S package provides precise frequency generation for UARTs, digital audio systems, and embedded controllers. With ±30 ppm tolerance and low noise, it ensures accurate clocking and stable data transfer rates.

Its HC-49S through-hole design makes it simple to mount on PCBs, while its robust construction guarantees long-term reliability. Used widely in communication hardware and digital processing, this crystal oscillator is a cost-effective solution delivered in a pack of 10.

Specifications:

  • Frequency: 22.1184 MHz
  • Package: HC-49S (through-hole)
  • Load Capacitance: 20 pF
  • Frequency Tolerance: ±30 ppm
  • Frequency Stability: ±50 ppm
  • Drive Level: 100 µW (max 1 mW)
  • Operating Temperature: -20°C to +70°C

Features:

  • 22.1184 MHz frequency ideal for UARTs and digital audio
  • Compact HC-49S through-hole package
  • Stable and accurate with ±30 ppm tolerance
  • Low noise ensures clean signal generation
  • Bulk 10-pack for prototyping and replacement

Contents:

  • 10 x 22.1184 MHz Quartz Crystal Oscillator (HC-49S)
Weight 0.006 kg
Dimensions 70 × 5 × 50 mm
Brand

Type

Frequency

Frequency Tolerance

±30 ppm

Frequency Stability

Maximum Output Power

Operating Temperature

Package / Case

Mounting Type
