64 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

26 people have recently viewed this product!

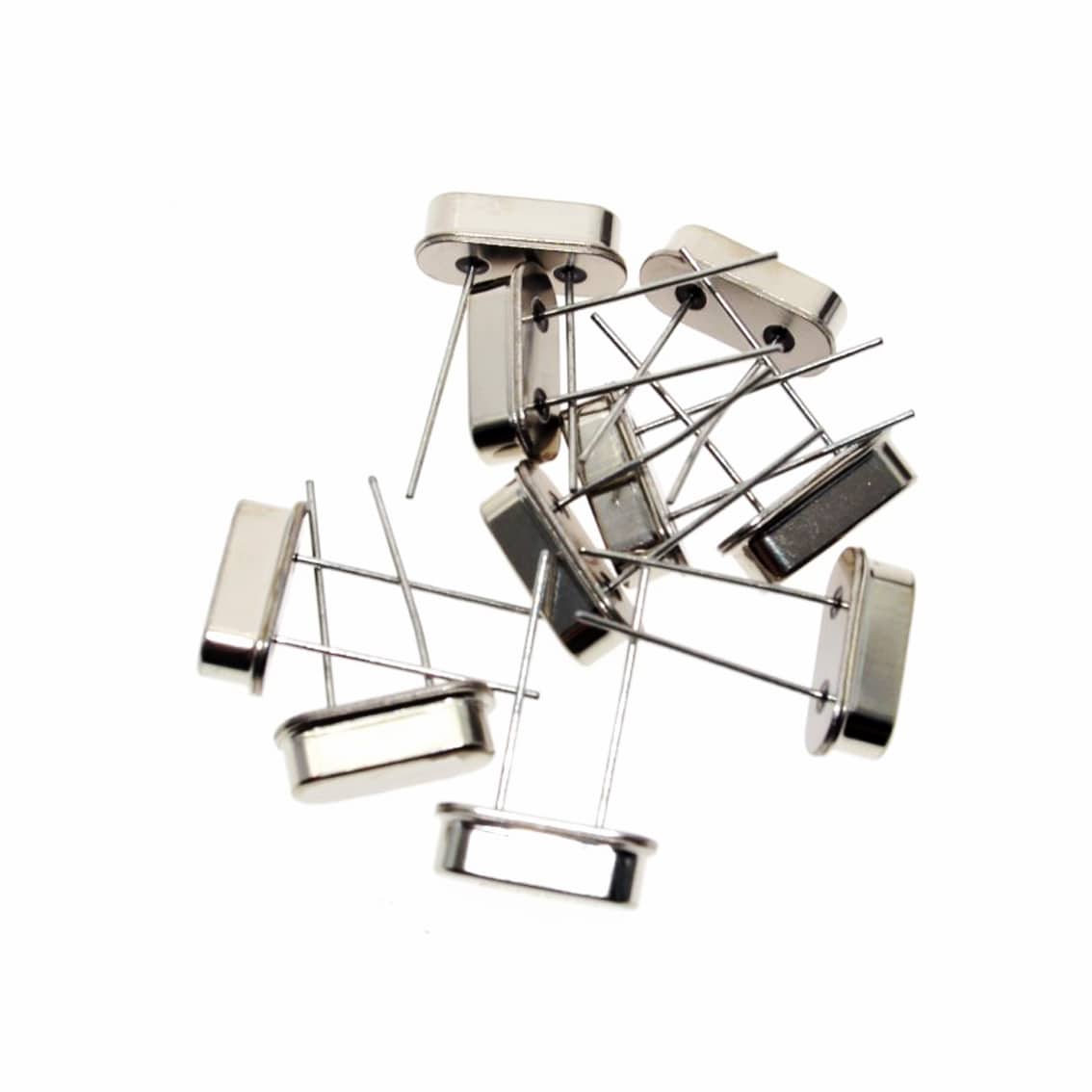

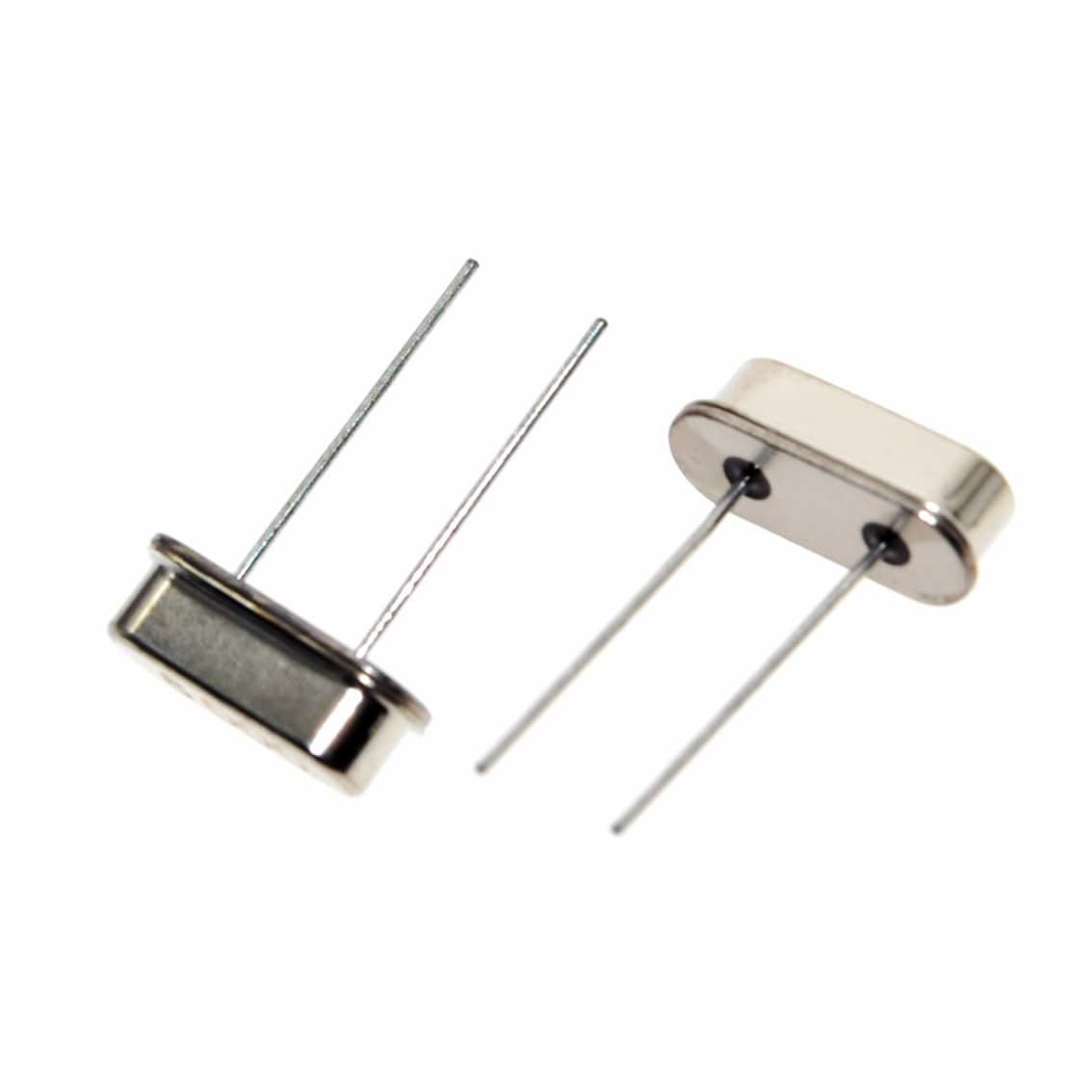

64 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

64 MHz HC-49S quartz crystal oscillators with ±30 ppm tolerance, 10-pack. Perfect for RF, microcontroller, and high-speed digital timing applications.

$14.95

Order Within –

All stock located in Australia.

Availability: 46 in stock

- +

EXPRESS SHIPPING Available.

SKU: PHI1002501
[woocommerce_prl_recommendations id='409642']

Description:

The 64 MHz Quartz Crystal Oscillator in HC-49S package delivers highly stable, high-frequency performance for RF communication systems, microcontrollers, and digital applications. With ±30 ppm frequency tolerance and low-noise operation, it provides reliable timing signals for demanding designs.

Encased in a standard HC-49S through-hole package, the crystal integrates easily into PCBs and breadboards. With a typical load capacitance of 20 pF, it ensures long-term frequency stability and consistent output. Supplied in a 10-pack, this oscillator is ideal for engineers, technicians, and educators requiring bulk quantities.

Specifications:

  • Frequency: 64.000 MHz
  • Package: HC-49S (through-hole)
  • Load Capacitance: 20 pF
  • Frequency Tolerance: ±30 ppm at 25°C
  • Frequency Stability: ±50 ppm (-20°C to +70°C)
  • Shunt Capacitance: ≤7 pF
  • Drive Level: 100 µW (max 1 mW)
  • Operating Temp: -20°C to +70°C
  • Storage Temp: -40°C to +85°C

Features:

  • 64 MHz frequency with ±30 ppm tolerance
  • HC-49S through-hole package for PCB mounting
  • Stable, low-noise performance for precision circuits
  • Widely used in RF and high-speed digital systems
  • 10-pack bulk supply for prototyping and production

Contents:

  • 10 x 64 MHz Quartz Crystal Oscillator (HC-49S)
Weight 0.006 kg
Dimensions 70 × 5 × 50 mm
Brand

Type

Frequency

Frequency Tolerance

±30 ppm

Frequency Stability

Shunt Capacitance

Load Capacitance

Maximum Output Power

Operating Temperature

Storage Temperature

Package / Case

Mounting Type
