Description:

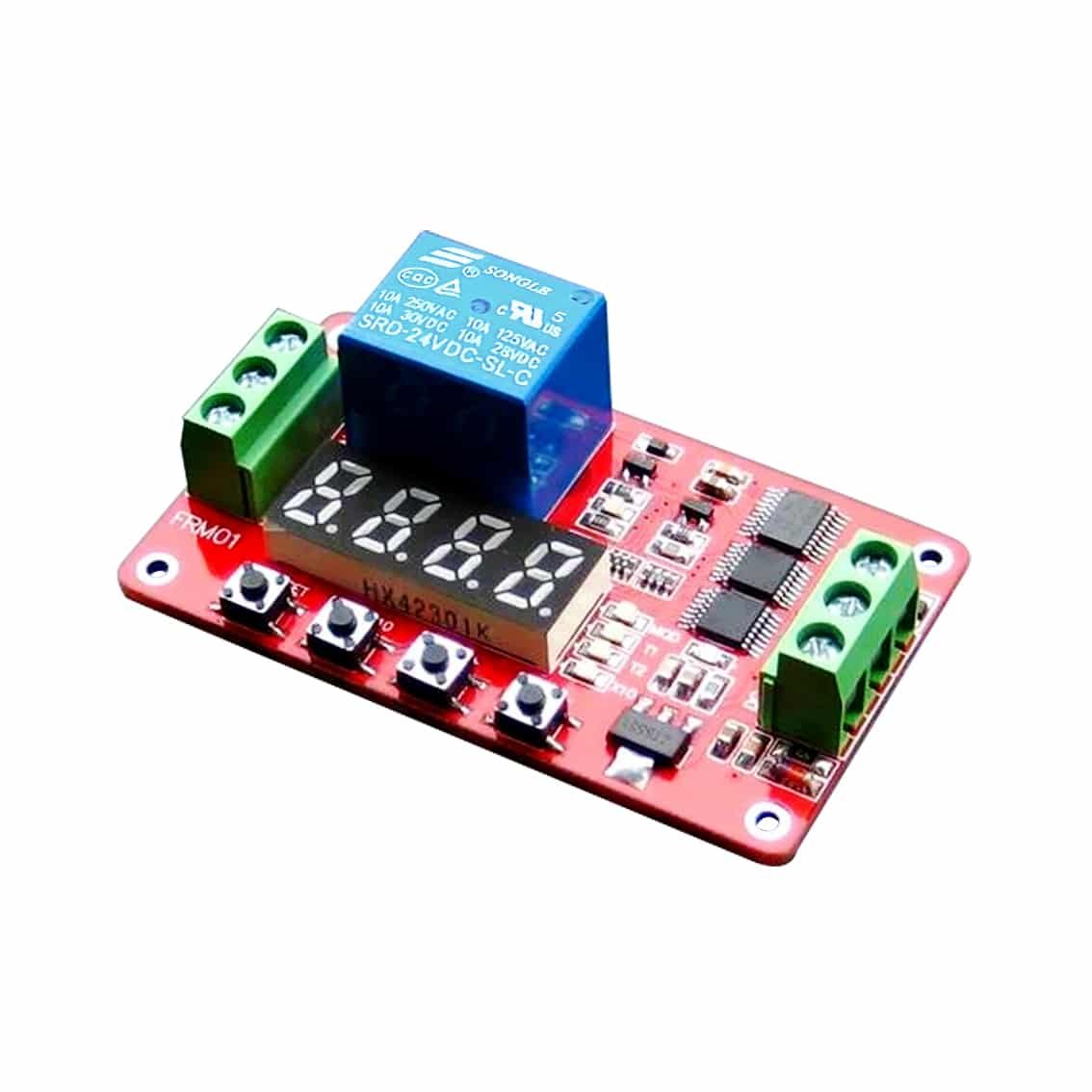

The 24V Programmable Multifunction Digital Relay Module – FRM01 is a versatile relay control device designed to cater to various automation and timing needs. This module features 18 programmable functions, allowing for precise control over relay operations. With adjustable timers ranging from 0.1 seconds to 270 hours, the FRM01 can handle various timing applications, making it ideal for simple and complex automation tasks. It supports an infinite loop and a set number of cycles triggered by high-signal inputs, making it suitable for use in smart home systems, industrial automation, and other automated control projects.
Specifications:
- Operating Voltage: 24V DC
- Timer Range: 0.1 seconds to 270 hours
- Functions: 18 programmable functions
- Load Capacity:
- Normally Open (NO): DC 0-30V/10A, AC 0-250V/10A
- Normally Closed (NC): DC 0-28V/10A, AC 0-125V/10A

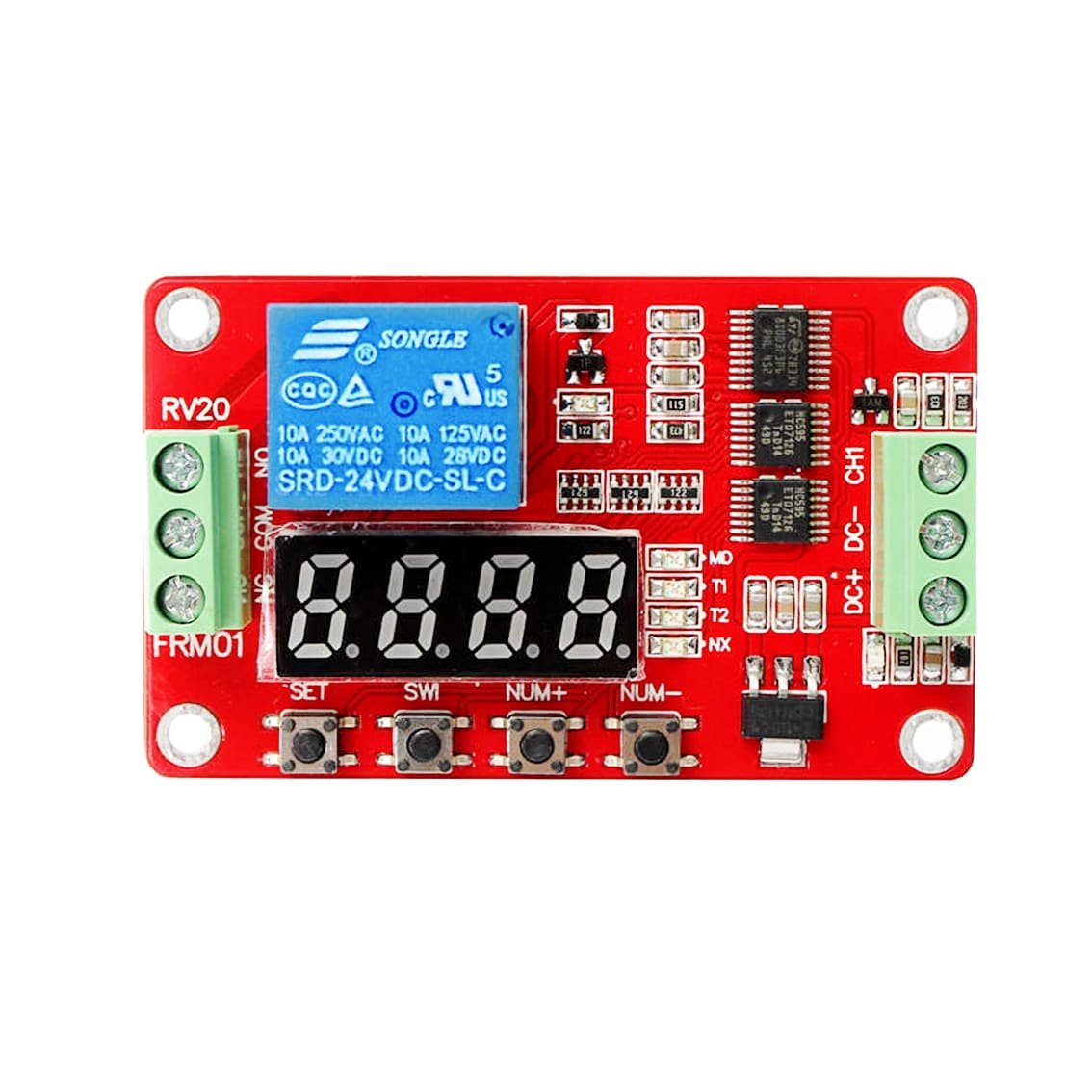

- Control Interface: 3-wire interface (DC+, DC-, CH1)
- Relay Output: 3-wire interface (NO, COM, NC)
Features:
- High-precision timer with adjustable intervals from 0.1 seconds to 270 hours
- 18 programmable functions, including infinite loop, limited cycle timing, self-locking, and trigger modes
- Easy integration with existing control systems via high-signal input on CH1
- Suitable for various applications, including smart home automation, industrial control, and DIY projects
Contents:
- 1 x 24V Programmable Multifunction Digital Relay Module – FRM01
