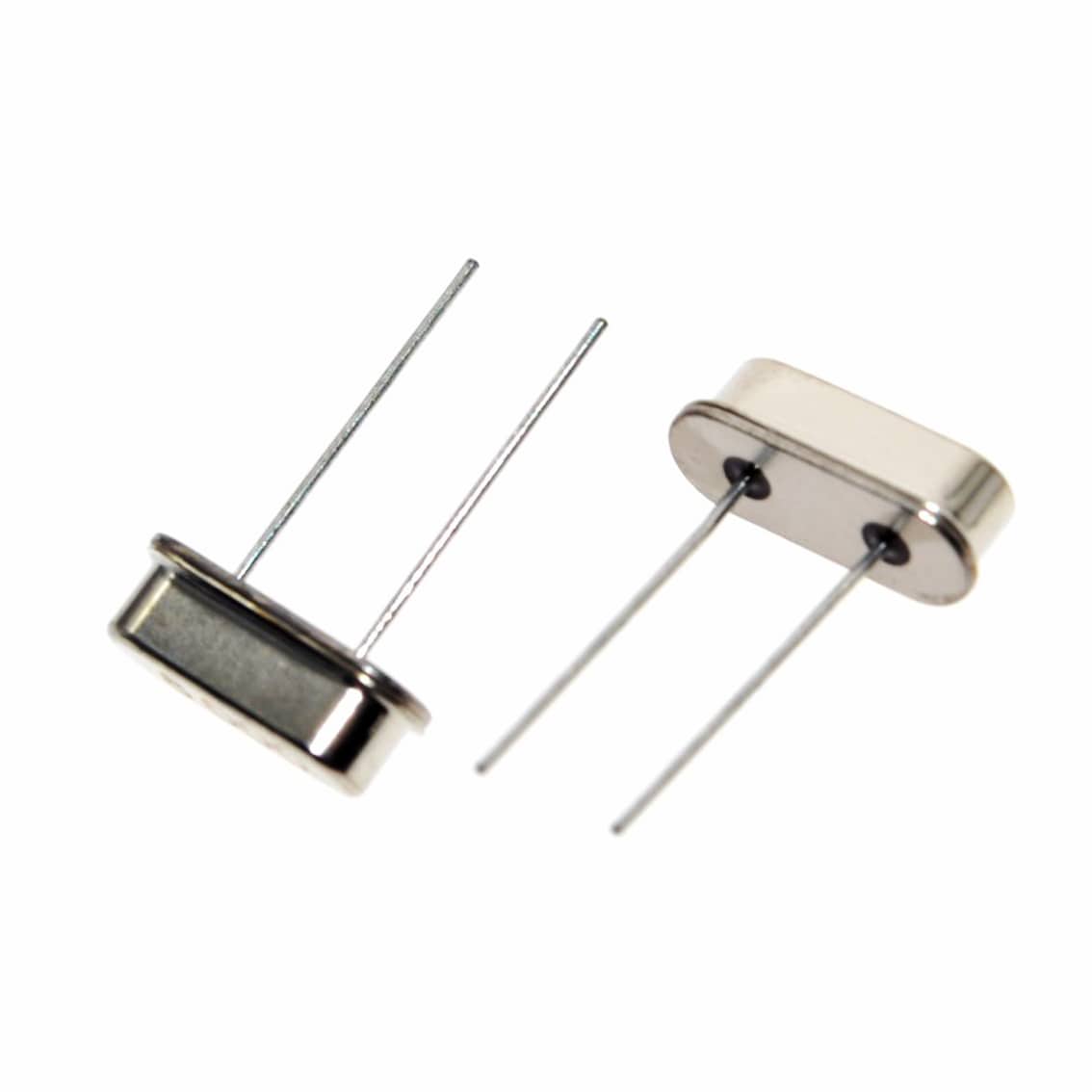

27 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

20 people have recently viewed this product!

27 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

27 MHz HC-49S quartz crystal oscillators with ±30 ppm tolerance, supplied in packs of 10 for RF, wireless, and microcontroller circuit designs.

$14.95

Order Within –

All stock located in Australia.

Availability: 25 in stock

EXPRESS SHIPPING Available.

SKU: PHI1002496

Description:

The 27 MHz Quartz Crystal Oscillator in HC-49S package offers stable and precise frequency generation, widely used in RF circuits, wireless communication, and microcontroller systems. With a tolerance of ±30 ppm, it provides dependable clock signals for both embedded and high-frequency applications.

The crystal is built with a durable HC-49S through-hole package, allowing straightforward integration into PCBs. With low noise, long-term stability, and a typical load capacitance of 20 pF, this component ensures consistent performance. Supplied in a pack of 10, it’s a valuable choice for developers and engineers.

Specifications:

  • Frequency: 27.000 MHz
  • Package: HC-49S (through-hole)
  • Load Capacitance: 20 pF
  • Frequency Tolerance: ±30 ppm
  • Frequency Stability: ±50 ppm
  • Shunt Capacitance: ≤7 pF
  • Drive Level: 100 µW (max 1 mW)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C

Features:

  • 27 MHz frequency with ±30 ppm tolerance
  • HC-49S through-hole package for compatibility with PCBs
  • Low noise and long-term stability
  • Ideal for RF circuits, transmitters, and microcontrollers
  • 10-pack bulk supply for prototyping and builds

Contents:

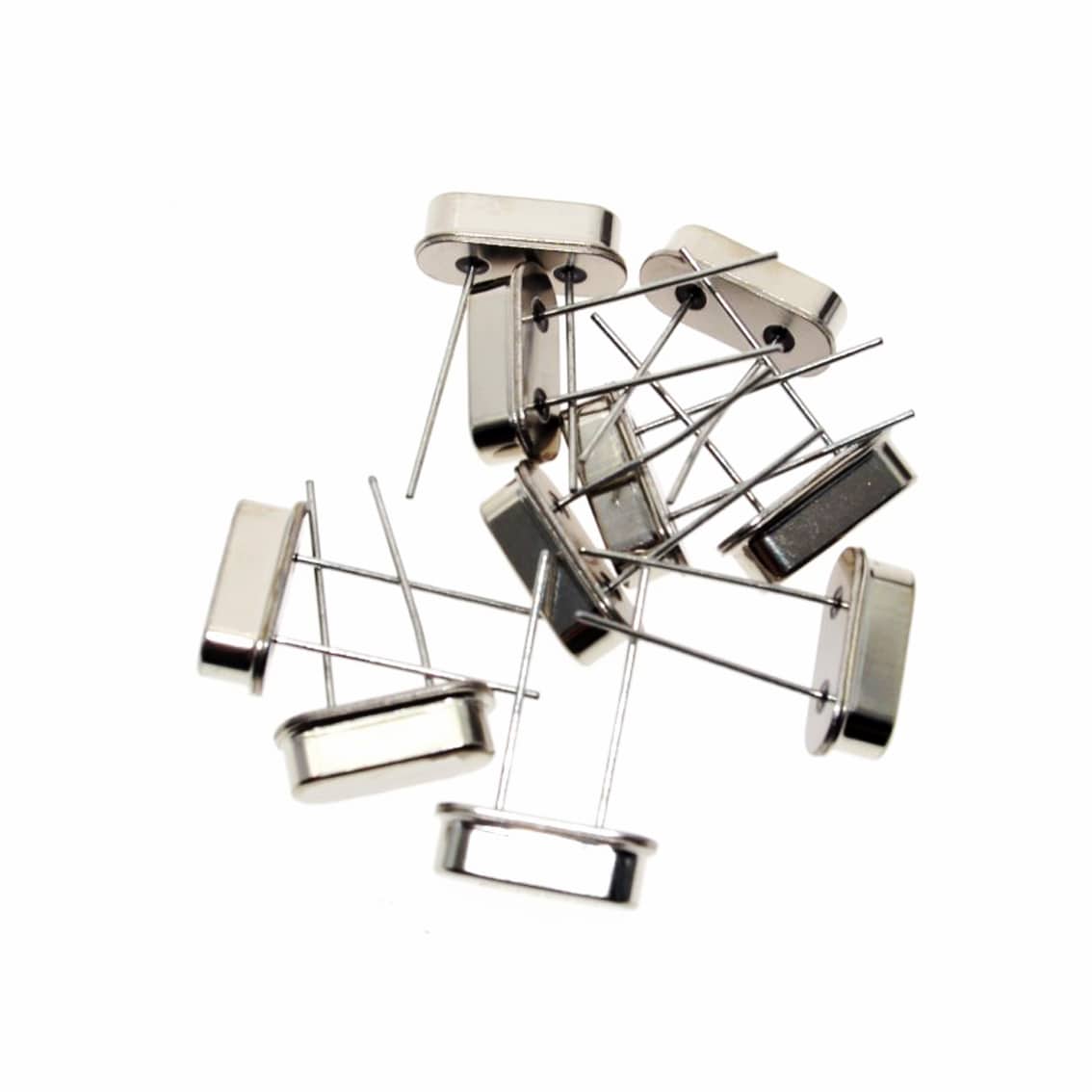

  • 10 x 27 MHz Quartz Crystal Oscillator (HC-49S)
Weight 0.006 kg
Dimensions 70 × 5 × 50 mm
Brand

Type

Frequency

Load Capacitance

Frequency Tolerance

±30 ppm

Frequency Stability

Shunt Capacitance

Maximum Output Power

Operating Temperature

Package / Case

Mounting Type
