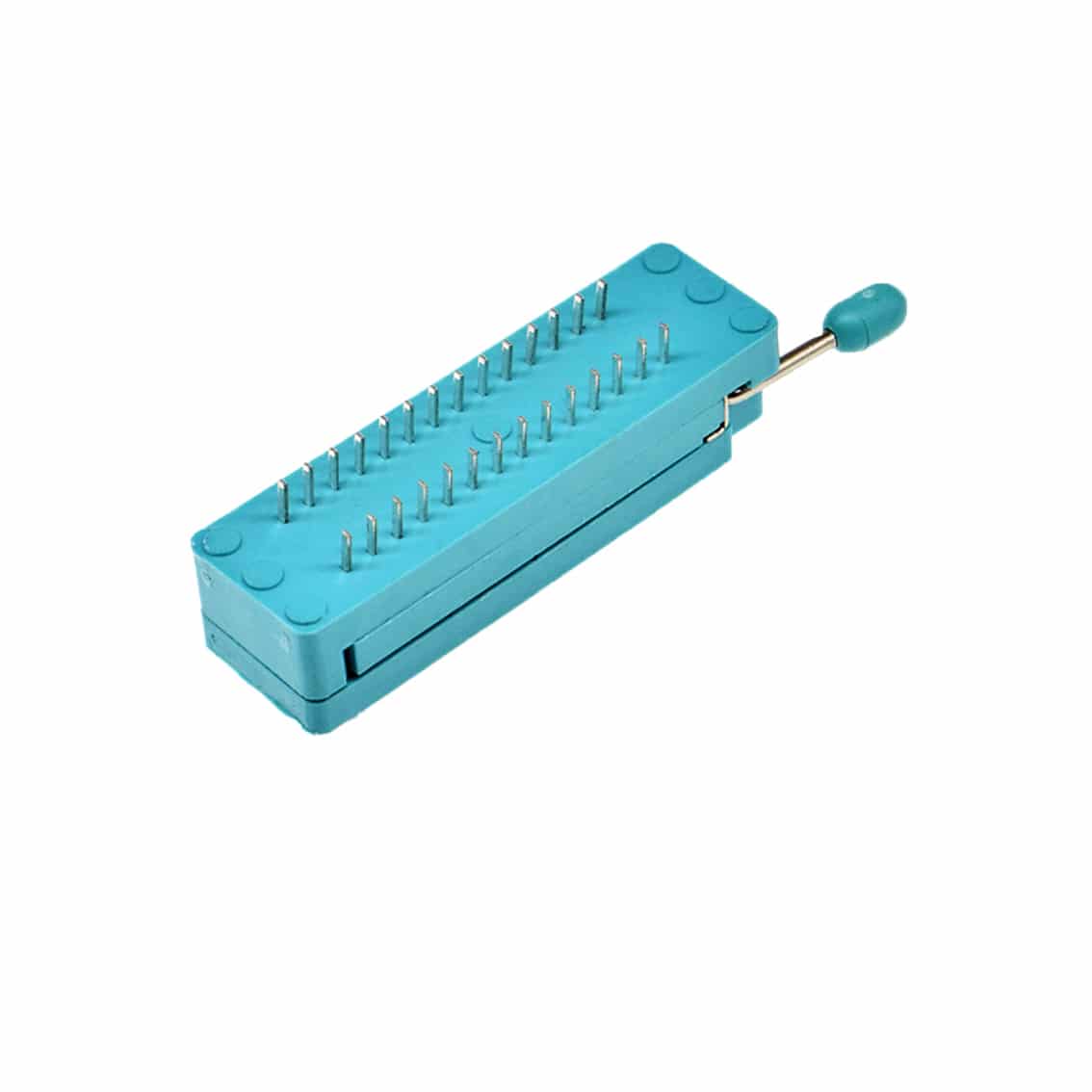

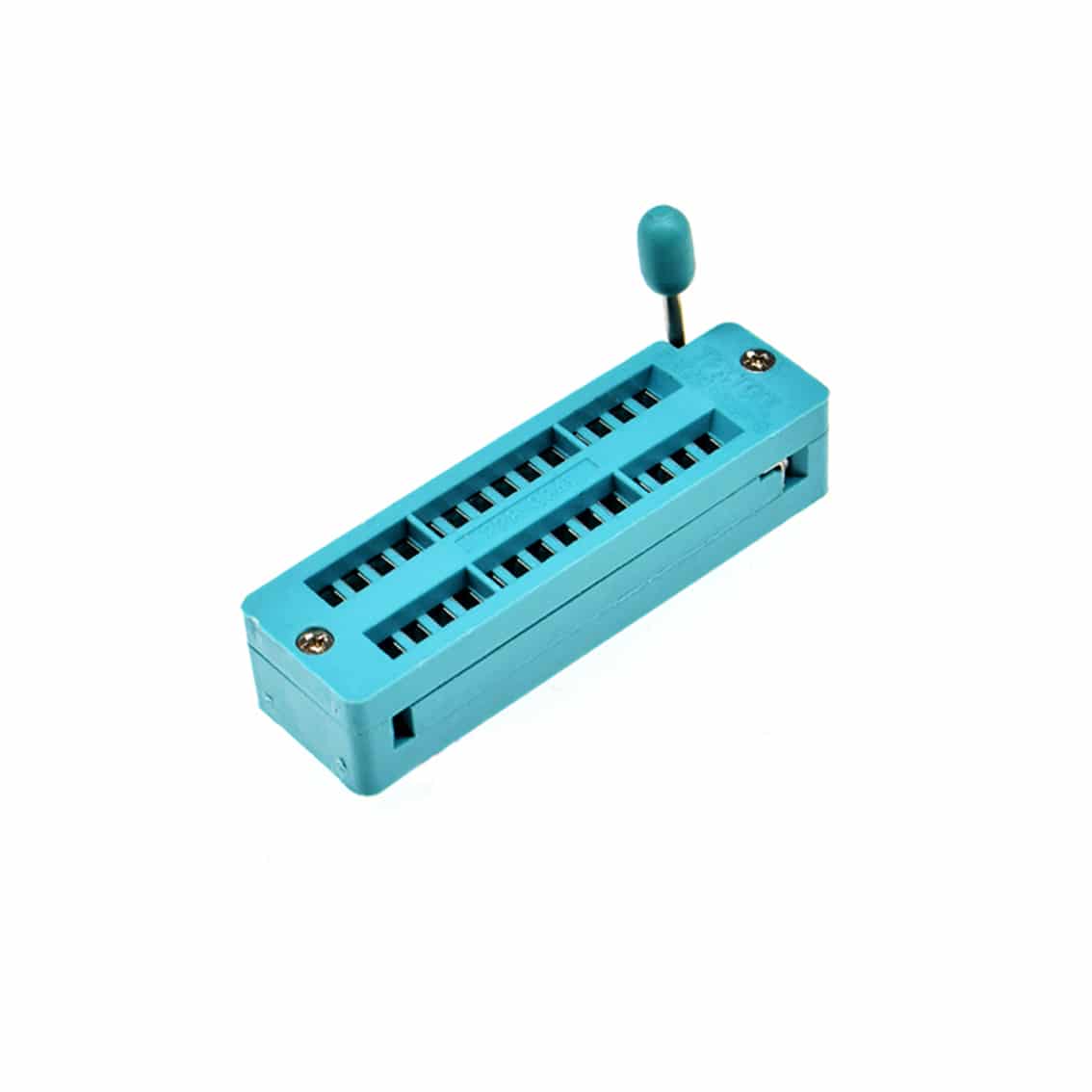

28 Pin Green ZIF Lockable Socket

25 people have recently viewed this product!

28 Pin Green ZIF Lockable Socket

28-pin green ZIF socket with lever lock, ideal for DIP ICs. Perfect for IC programming, prototyping, and testing without damaging delicate pins.

$13.95

Order Within –

All stock located in Australia.

Availability: 50 in stock

- +

EXPRESS SHIPPING Available.

SKU: PHI1001437
[woocommerce_prl_recommendations id='409642']

Description:

The 28 Pin Green ZIF (Zero Insertion Force) Lockable Socket is designed for securely testing and programming 28-pin DIP ICs without risk of pin damage. Featuring a lever-operated locking mechanism, this socket allows effortless insertion and removal of ICs, making it perfect for high-frequency use in prototyping, IC programmers, and test equipment.

Manufactured with durable thermoplastic housing and precision contacts, the socket ensures reliable and consistent electrical connection. The green body provides easy identification in electronics setups. This tool is a must-have for labs, repair technicians, and developers working with EEPROMs, microcontrollers, and other DIP ICs.

Specifications:

  • Type: Zero Insertion Force (ZIF) IC socket
  • Pin Count: 28
  • Package Compatibility: DIP (Dual In-Line Package)
  • Pitch: 2.54mm (0.1″)
  • Lock Mechanism: Lever-actuated clamp
  • Housing Material: Thermoplastic (green)
  • Contact Material: Copper alloy with gold/nickel plating
  • Operating Life: >10,000 insertion cycles
  • Mounting: Through-hole

Features:

  • Zero insertion force design avoids bent or broken pins
  • Lever-operated lock ensures secure IC seating
  • Compatible with 28-pin DIP devices (EEPROMs, MCUs, etc.)
  • Durable construction for long service life
  • Widely used in IC programming, testing, and development

Contents:

  • 1 x 28 Pin Green ZIF Lockable Socket
Weight 0.012 kg
Dimensions 50 × 30 × 15 mm
Brand

Type

Pitch

Current Rating

Package / Case

Mounting Type

Pins

28
