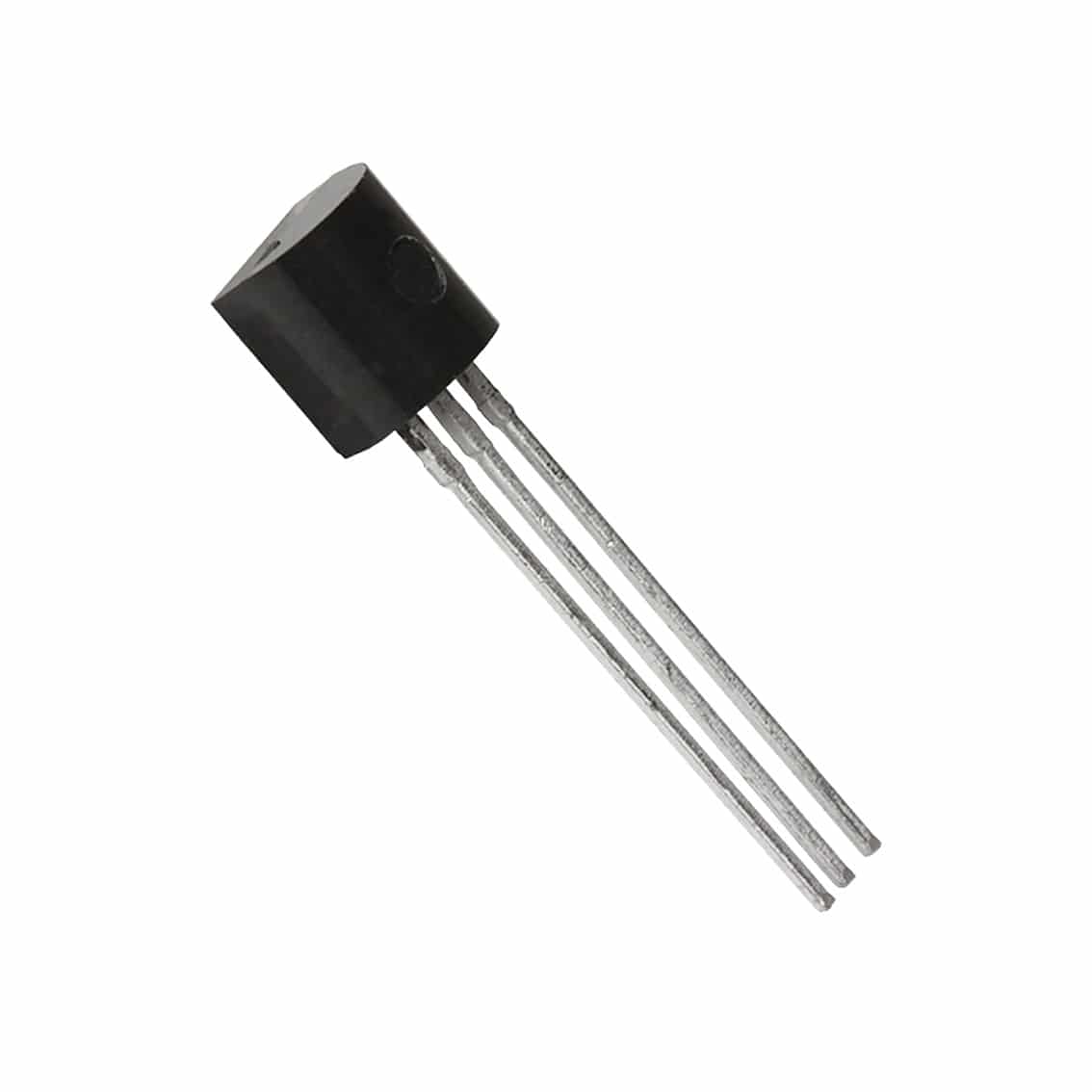

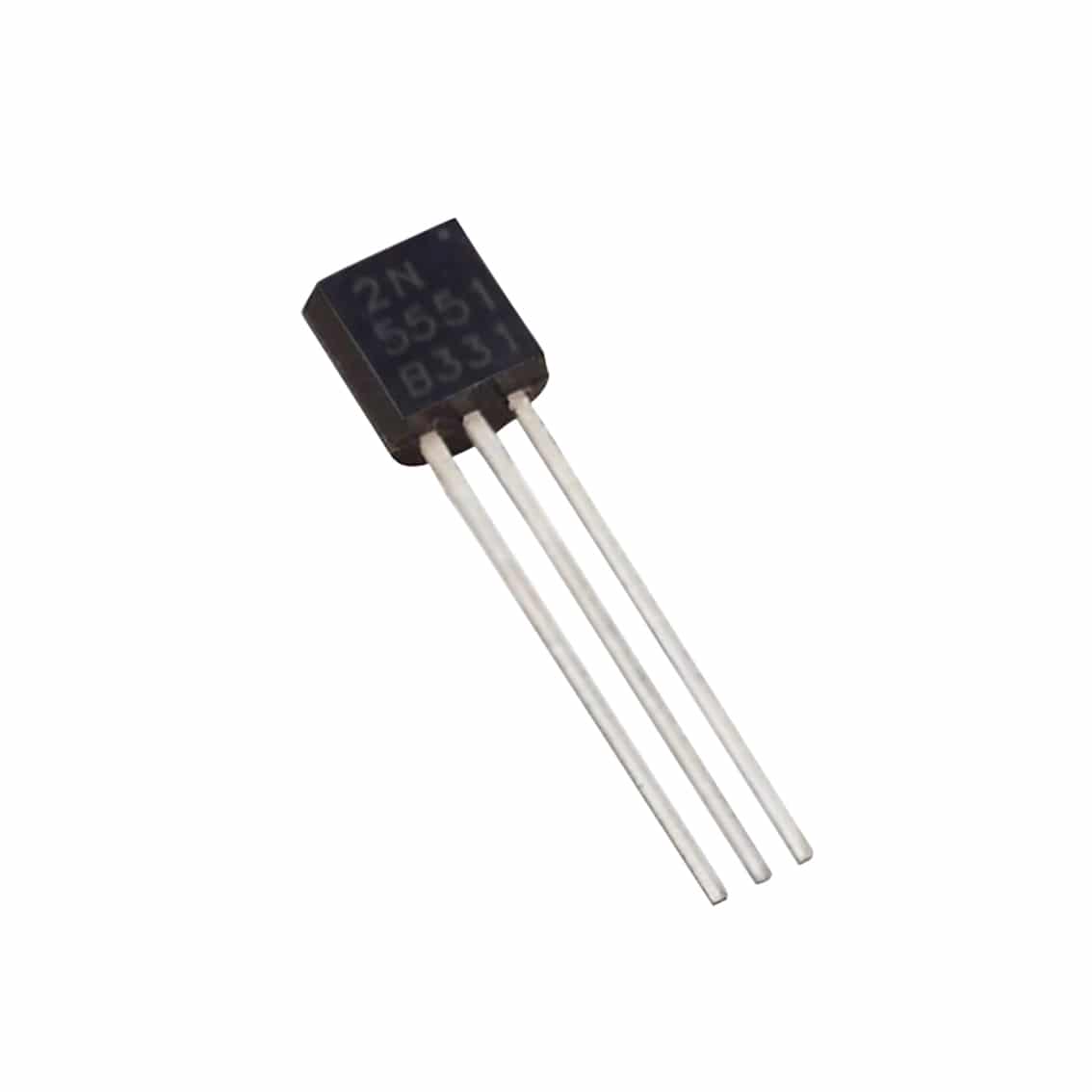

2N5551 160V 600mA NPN Transistor – Pack of 10

  • PHI1052819 – 2N5551 160V 600mA NPN Transistor – Pack of 10 02
  • PHI1052819 – 2N5551 160V 600mA NPN Transistor – Pack of 10 02

Description

The 2N5551 is a bipolar 160V 600mA NPN transistor in a TO-92 case. read more
SKU:
PHI1052819
Category:
Tags:
,
Brand:

Type:

Mounting Type:

Package / Case:

view all details

Price

$8.95

Quantity

- +

Total

$8.95

0 reviews

28 in stock

- +

Description

Description:

The 2N5551 is a bipolar 160V 600mA NPN transistor in a TO-92 case.

When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices.



Specifications:

Collector Emitter Voltage: 160 V
Collector Base Voltage: 180 V
Emitter Base Voltage: 6 V
Collector Current: 600 mA
Collector Dissipation: 310 mW
Transition Frequency: 100 MHz
Mounting Style: Through Hole
Package / Case: TO-92
Transistor Polarity: NPN
Configuration: Single
Operating Temperature: -65 ⁰C – 135 ⁰C
Dimensions: 4.6mm x 4.6mm x 3.9mm x 14.5mm



Contents:

  • 10 x 2N5551 160V 600mA NPN Transistor
