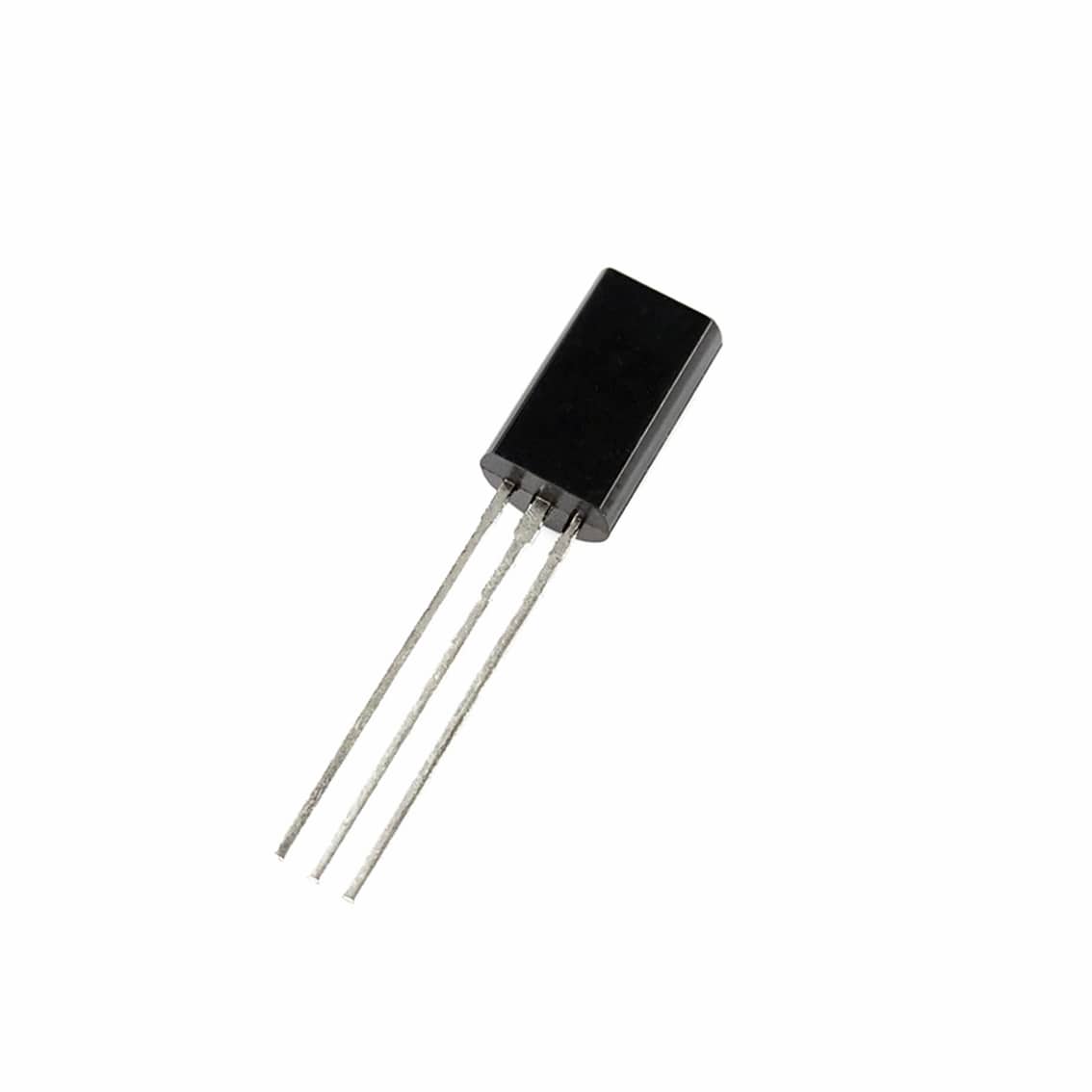

2SC2482 300V 100mA NPN Transistor – Pack of 10

Description

The 2SC2482 is a bipolar 300V 100mA NPN transistor in a TO-92L case. read more
SKU:
PHI1052804
Category:
Tags:
,
Brand:

Type:

Mounting Type:

Package / Case:

view all details

Price

$8.95

Quantity

- +

Total

$8.95

0 reviews

29 in stock

- +

Description

Description:

The 2SC2482 is a bipolar 300V 100mA NPN transistor in a TO-92L case.

When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices.



Specifications:

  • Collector Emitter Voltage: 300 V
  • Collector Base Voltage: 300 V
  • Emitter Base Voltage: 7 V
  • Collector Current: 100 mA
  • Collector Dissipation: 900 mW
  • Transition Frequency: 50 MHz
  • Mounting Style: Through Hole
  • Package / Case: TO-92L
  • Transistor Polarity: NPN
  • Configuration: Single
  • Operating Temperature: -65 ⁰C – 150 ⁰C
  • Dimensions: 8mm x 5mm x 4mm x 14mm



Contents:

  • 10 x 2SC2482 300V 100mA NPN Transistor
