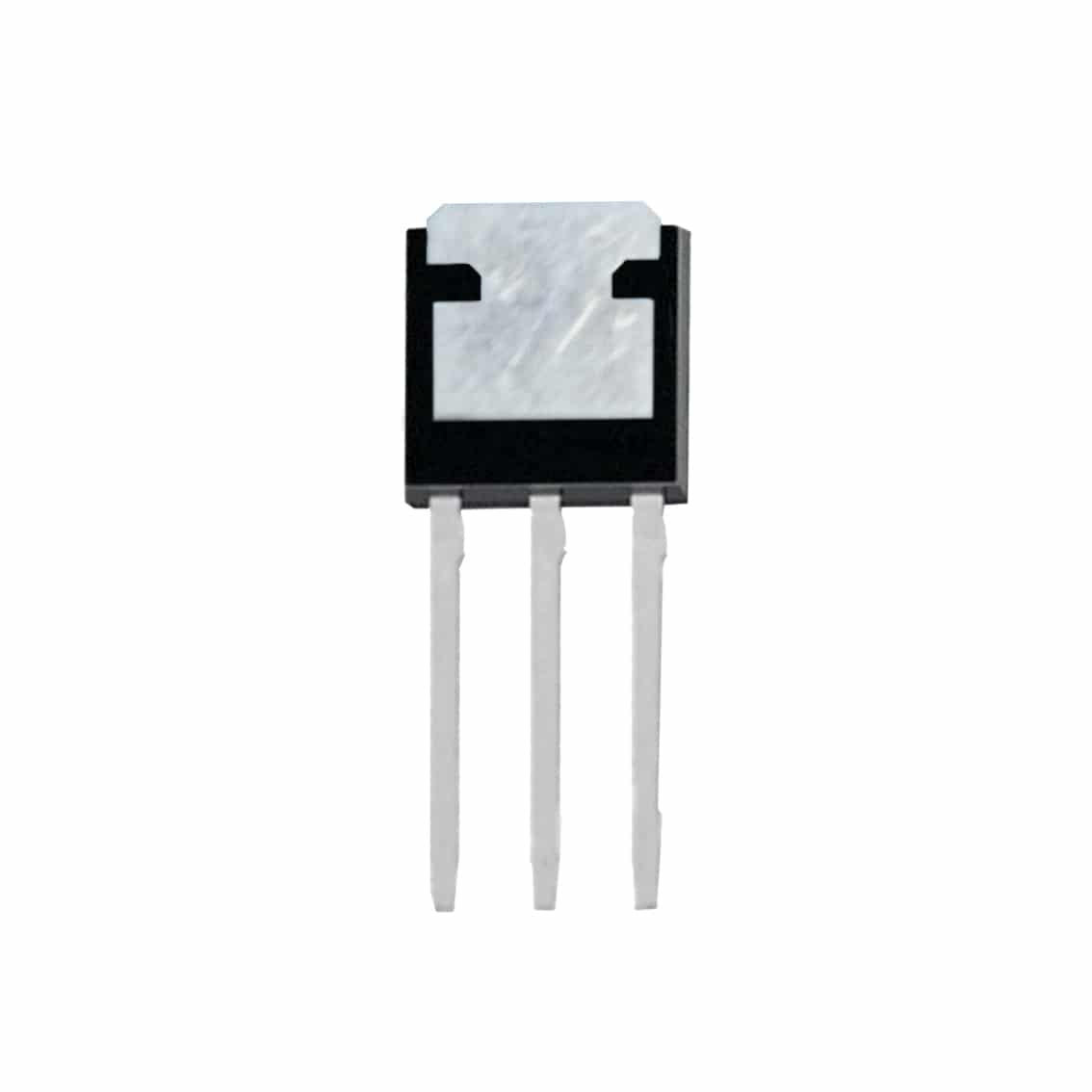

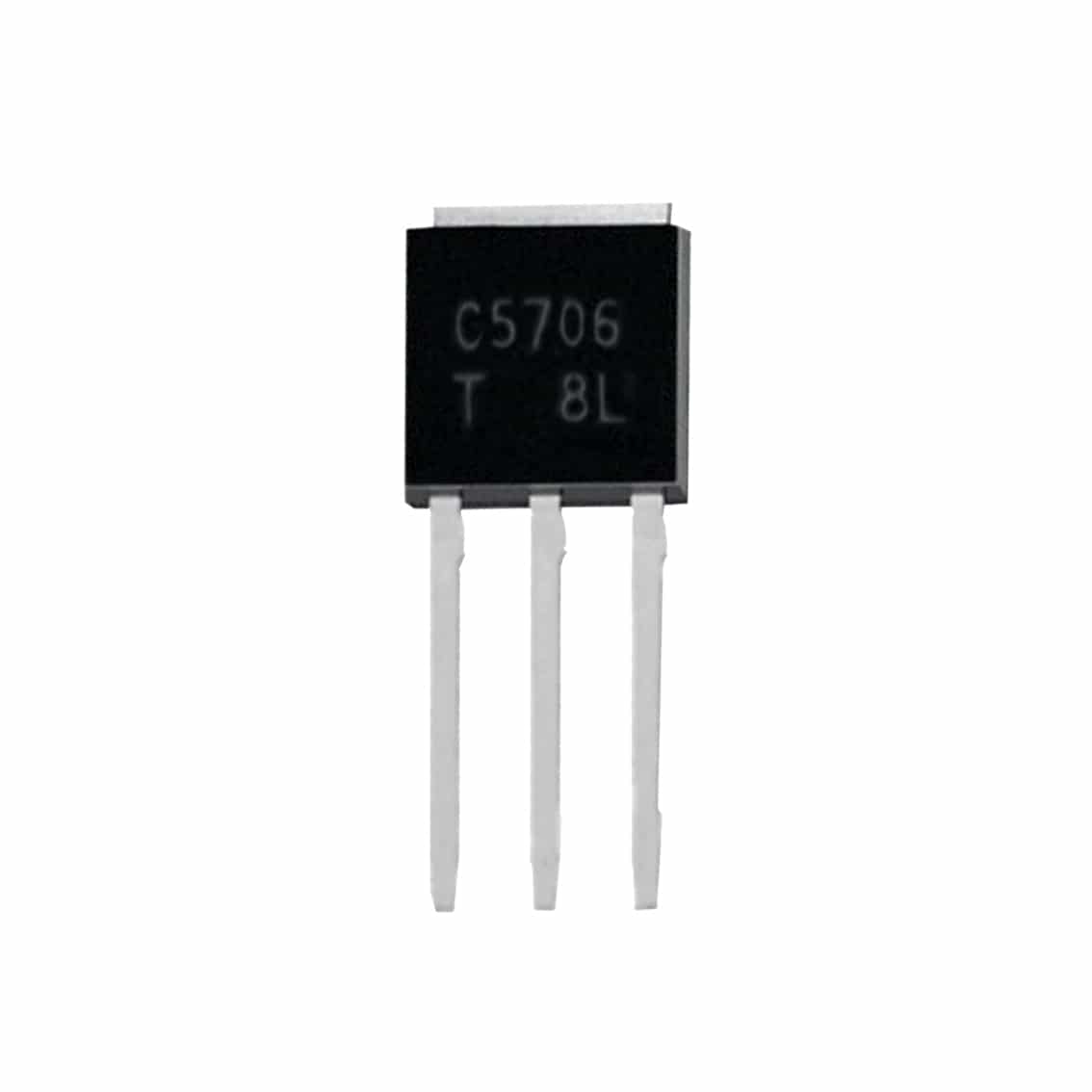

2SC5706 80V 5A NPN Transistor – Pack of 10

45 people have recently viewed this product!

2SC5706 80V 5A NPN Transistor – Pack of 10

The 2SC5706 is a bipolar 50V 5A NPN transistor in a TO-251 case.

$15.95

Order Within –

Availability: 26 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002793

Description:

The 2SC5706 is a bipolar 50V 5A NPN transistor in a TO-251 case.

When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices.



Specifications:

  • Collector Emitter Voltage: 50 V
  • Collector Base Voltage: 80 V
  • Emitter Base Voltage: 6 V
  • Collector Current: 5 A
  • Collector Dissipation: 15 W
  • Transition Frequency: 400 MHz
  • Mounting Style: Through Hole
  • Package / Case: TO-251
  • Transistor Polarity: NPN
  • Configuration: Single
  • Operating Temperature: -65 ⁰C – 135 ⁰C
  • Dimensions: 6.2mm x 6.6mm x 2.3mm x 3.6mm



Contents:

  • 10 x 2SC5706 50V 5A NPN Transistor
Weight 0.004 kg
Dimensions 70 × 5 × 50 mm
Brand

Transistor Type

Transistor Polarity

Max Power Dissipation

15W

Collector Current

Collector Emitter Voltage

Emitter Base Voltage

Collector Base Voltage

Transistor Transition Frequency

Operating Temperature

Mounting Type

Package / Case
