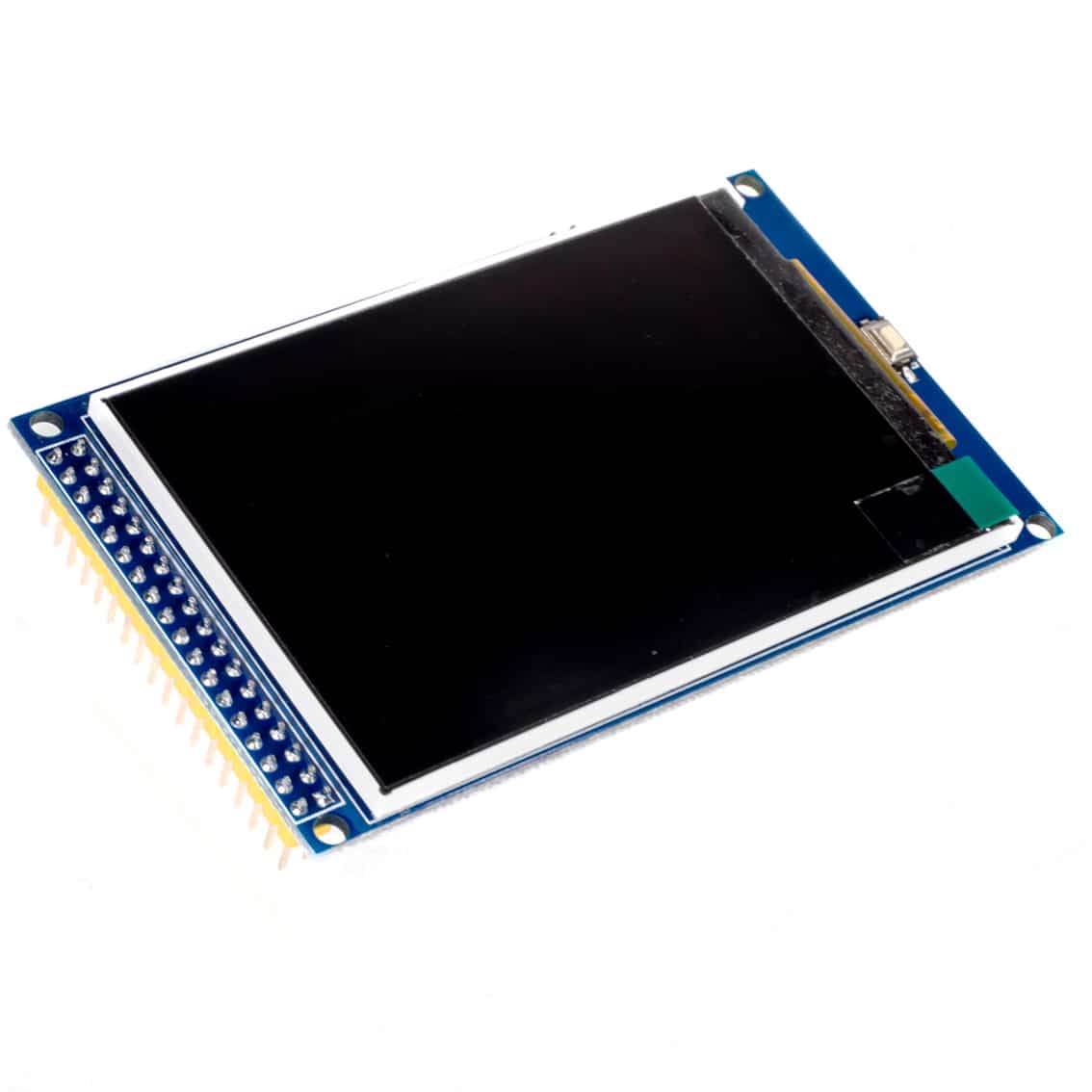

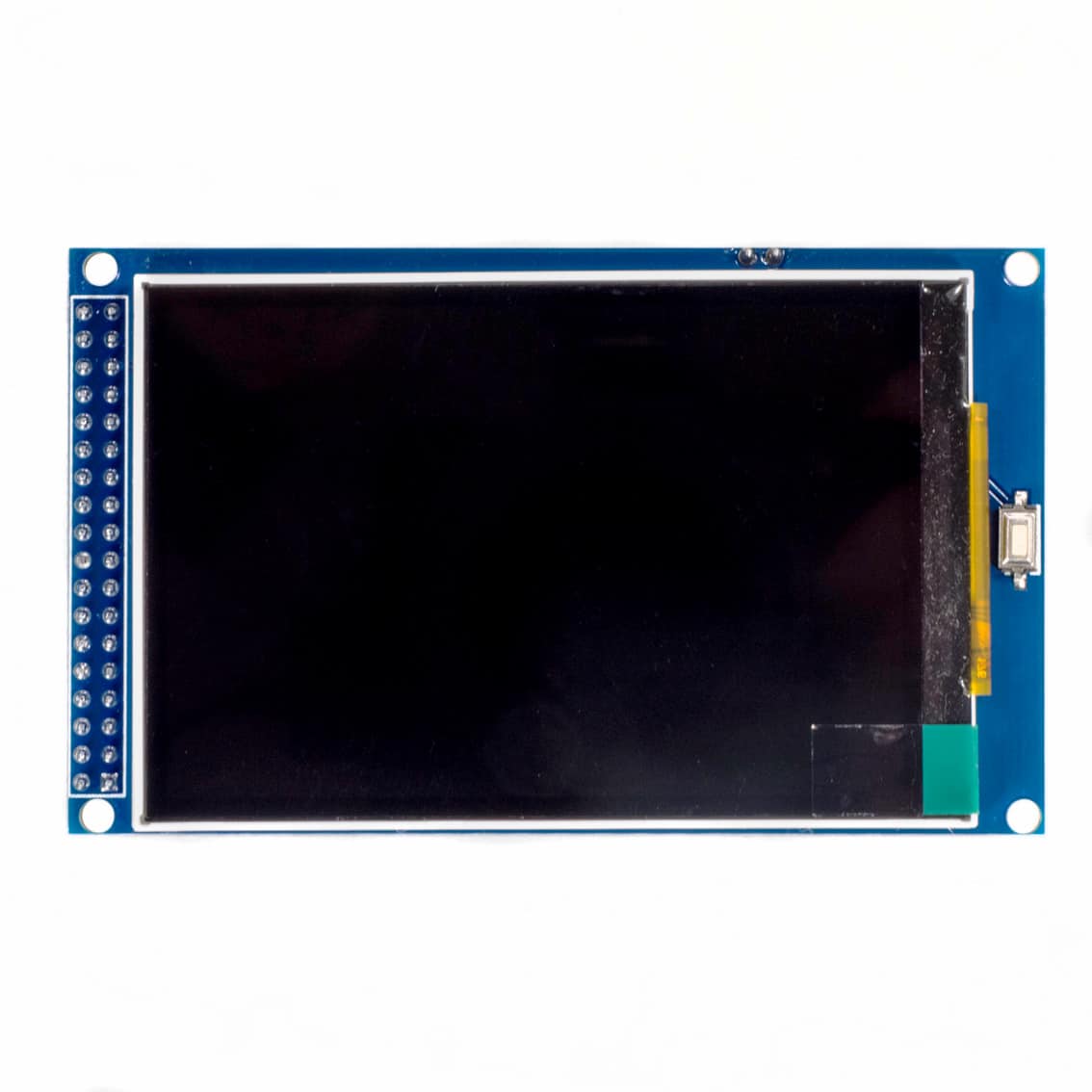

3.2 Inch Arduino Mega2560 LCD HD Display Module – 320 x 480

This 262K color 320 x 480 resolutions LCD module uses a thin-film-transistor liquid-crystal display (TFT LCD) to improve image quality.

$32.95

Availability: 18 in stock

Buy now, pay later available.

SKU PHI1001879 Categories , Tags ,
PHI1001879

Description:

This 262K colour 320 x 480 resolutions LCD module uses a thin-film-transistor liquid-crystal display (TFT LCD) to improve image qualities. With controller HX8357B included in the screen, it supports 16-wires DataBus Interface.

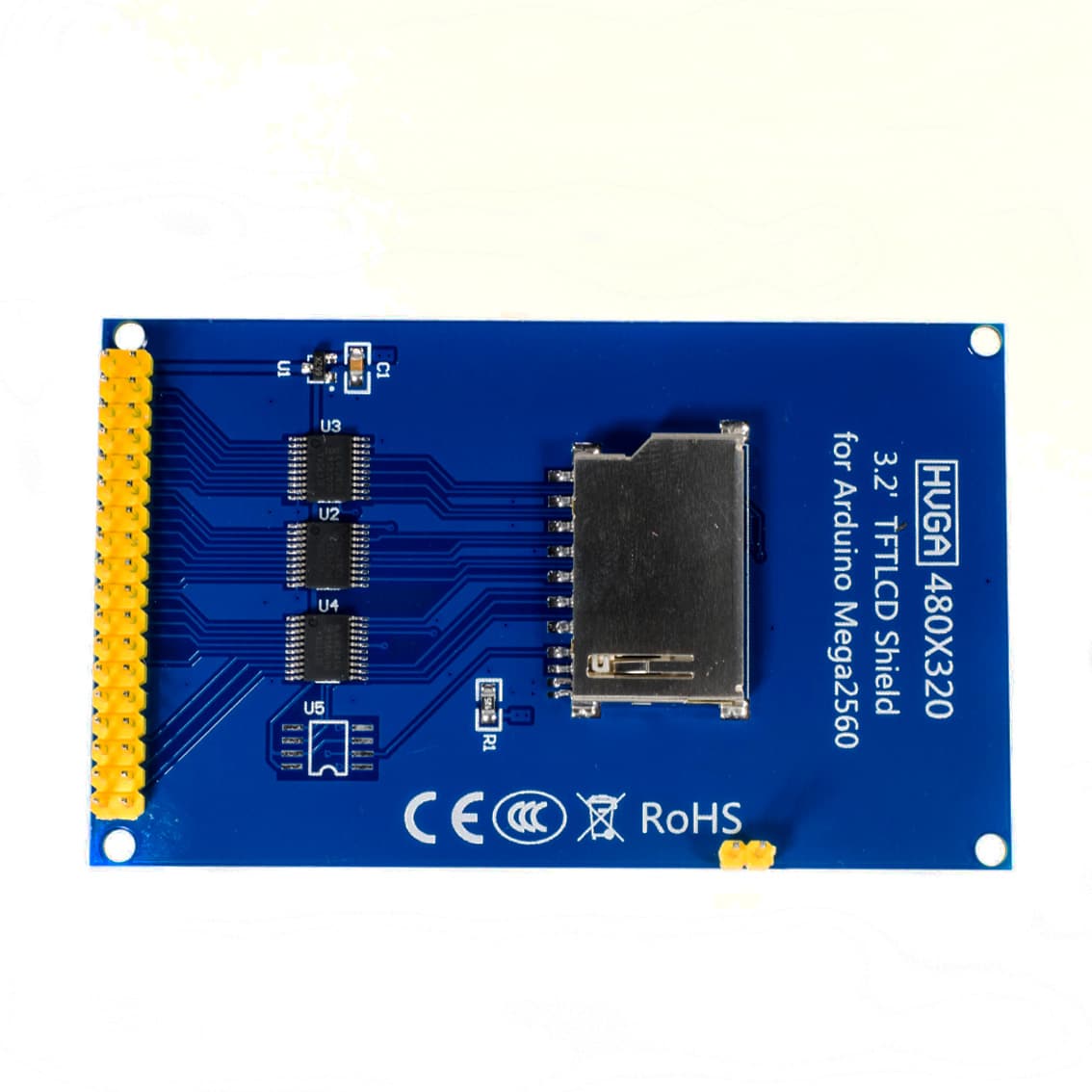

This module also includes 5V-3.3V power conversion circuit and level conversion circuit. 100% compatible with Mega2560, it can be directly inserted into the Mega 2560 Board. Additionally, it comes with SD card socket and SPI flash circuit. Definitely a powerful module for your projects!



Specifications:

  • Display Type: 3.2 inch TFT LCD
  • Glass Type: TFT IPS(Full-Angle)
  • Display Resolution: 480 X 320 Pixels
  • Backlight: 6 chip HighLight white LEDs
  • Control IC: HX8357B
  • Interface: 16Bit Parallel Interface
  • PCB Module size: 89.92mm X 54.25mm
  • Active Area(WxH): 67.68mm X 45.12mm
  • Power Consumption: 80 – 110(mA)
  • Power: 5V/3.3V
  • Touch Function: none
  • Module Interface: 36Pin (Compatible with Arduino Mega2560)



Contents:

  • 1 x 3.2 Inch Arduino Mega2560 LCD HD Display Module
