Description:

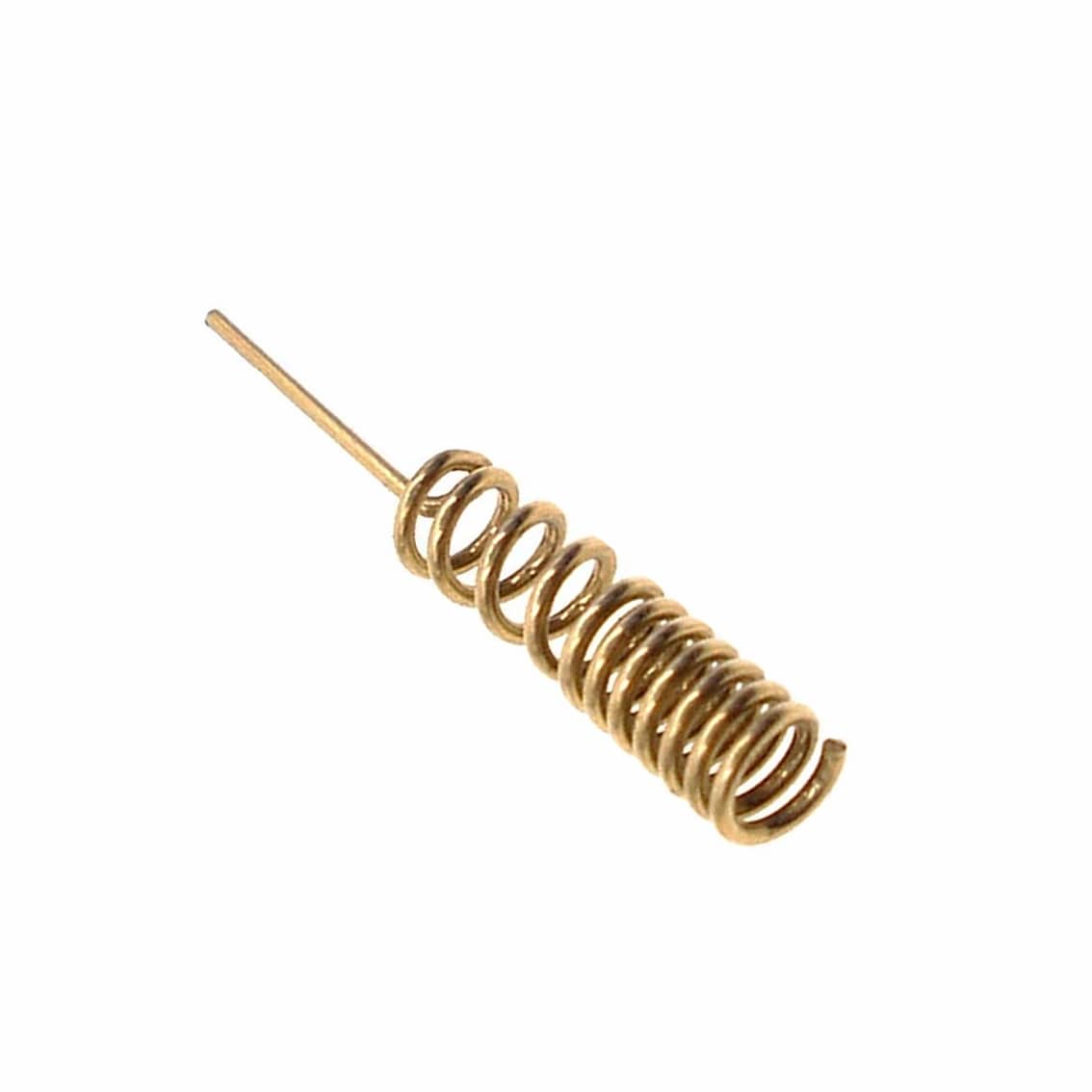

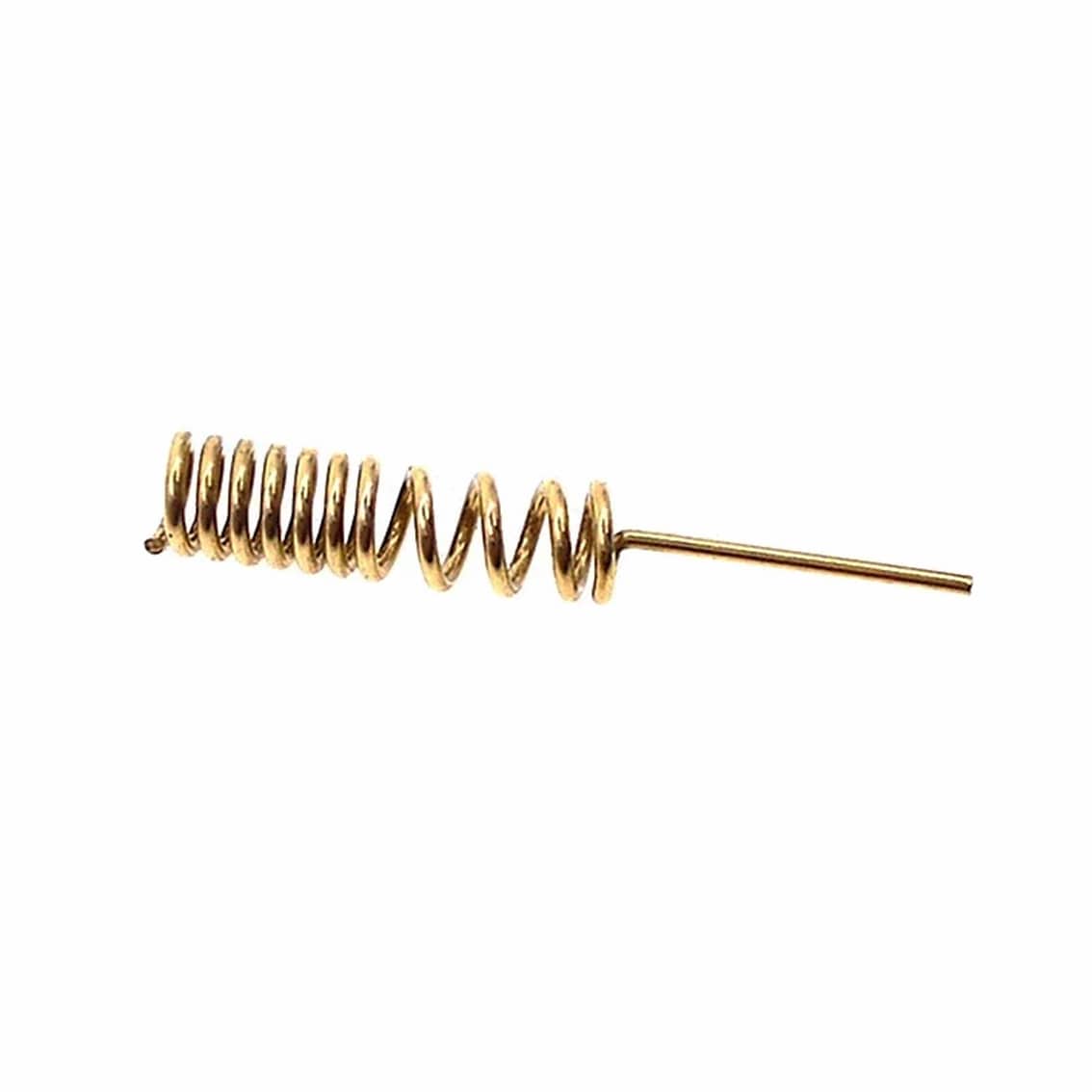

The 315MHz Spring Type Antenna is a compact and efficient antenna designed for seamless integration into wireless communication systems operating at the 315MHz frequency band. Its helical spring structure is optimised for applications such as remote controls, wireless sensors, and IoT devices, providing reliable performance in compact devices. The antenna’s design ensures excellent signal transmission and reception, enhancing the efficiency and reliability of communication systems.
This antenna supports direct soldering for easy installation, making it suitable for a variety of embedded applications. Its low VSWR of ≤1.5 minimises signal loss, while the robust construction ensures long-lasting durability in various environments. Measuring 27mm in height with a wire diameter of 0.5mm, the 315MHz Spring Type Antenna is ideal for space-constrained designs, delivering stable performance across a range of wireless projects.
Specifications:
- Frequency Range: 315MHz
- Gain: 2.15 dBi
- VSWR: ≤1.5
- Impedance: 50 Ω
- Polarization: Vertical
- Maximum Power: 10W
- Dimensions: Height: 27mm; Wire Diameter: 0.5mm
- Material: Helical spring
- Mounting: Direct soldering
Features:
- Compact helical spring design for easy integration
- Optimised for 315MHz frequency band
- Low VSWR ensures minimal signal reflection and loss
- Robust construction for reliable performance
- Suitable for various wireless communication applications
Contents:
- 2 x 315MHz Spring Type Antennas
