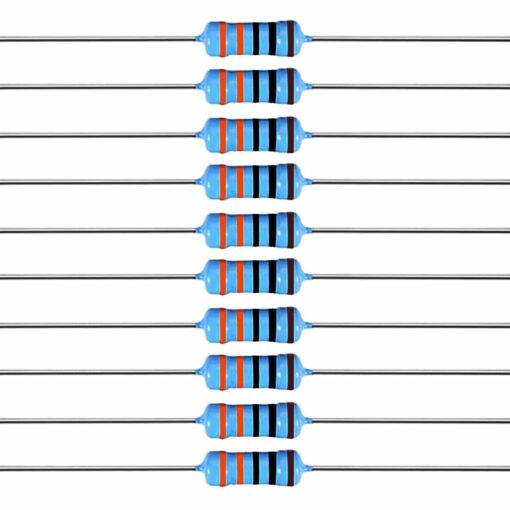

330R Ohm 0.25W 1% Metal Film Resistor – Pack of 100

28 people have recently viewed this product!

330R Ohm 0.25W 1% Metal Film Resistor – Pack of 100

330 Ohm metal film resistors with ±1% tolerance and 0.25W rating, ideal for LED current limiting, transistor biasing, and general electronics. Pack of 100.

$14.95

Order Within –

All stock located in Australia.

Availability: 52 in stock

- +

EXPRESS SHIPPING Available.

SKU: PHI1001499
[woocommerce_prl_recommendations id='409642']

Description:

The 330R Ohm 0.25W 1% Metal Film Resistor is a widely used component in electronic circuits for applications such as LED current limiting, transistor base resistors, and signal conditioning. With a tight ±1% tolerance, this resistor ensures accurate and consistent performance in both analogue and digital circuits.

Its metal film construction provides low noise and high thermal stability, making it ideal for precision work. The axial lead design allows easy insertion into breadboards and through-hole PCBs. This 100-pack is perfect for prototyping, educational use, and volume production.

Specifications:

  • Resistance: 330 Ohm (330R)
  • Power Rating: 0.25W (¼ Watt)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100 ppm/°C
  • Resistor Type: Metal Film
  • Max Working Voltage: 250V
  • Max Overload Voltage: 500V
  • Lead Type: Axial
  • Body Dimensions: ~6.3mm x 2.3mm
  • Operating Temperature: -55°C to +155°C

Features:

  • 330 Ohm value with ±1% tolerance for precision current limiting and signal control
  • Metal film construction provides low noise and long-term stability
  • Axial leads compatible with breadboards and through-hole PCBs
  • Ideal for LEDs, transistor biasing, and audio circuits
  • Bulk pack of 100 for engineers, hobbyists, and educators

Contents:

  • 100 x 330R Ohm 0.25W 1% Metal Film Resistors
Weight 0.012 kg
Dimensions 130 × 5 × 90 mm
Brand

Type

Resistance

330R

Maximum Working Voltage

Max Power Dissipation

250mW

Power Rating

Termination

Tolerance

Operating Temperature

Mounting Type
