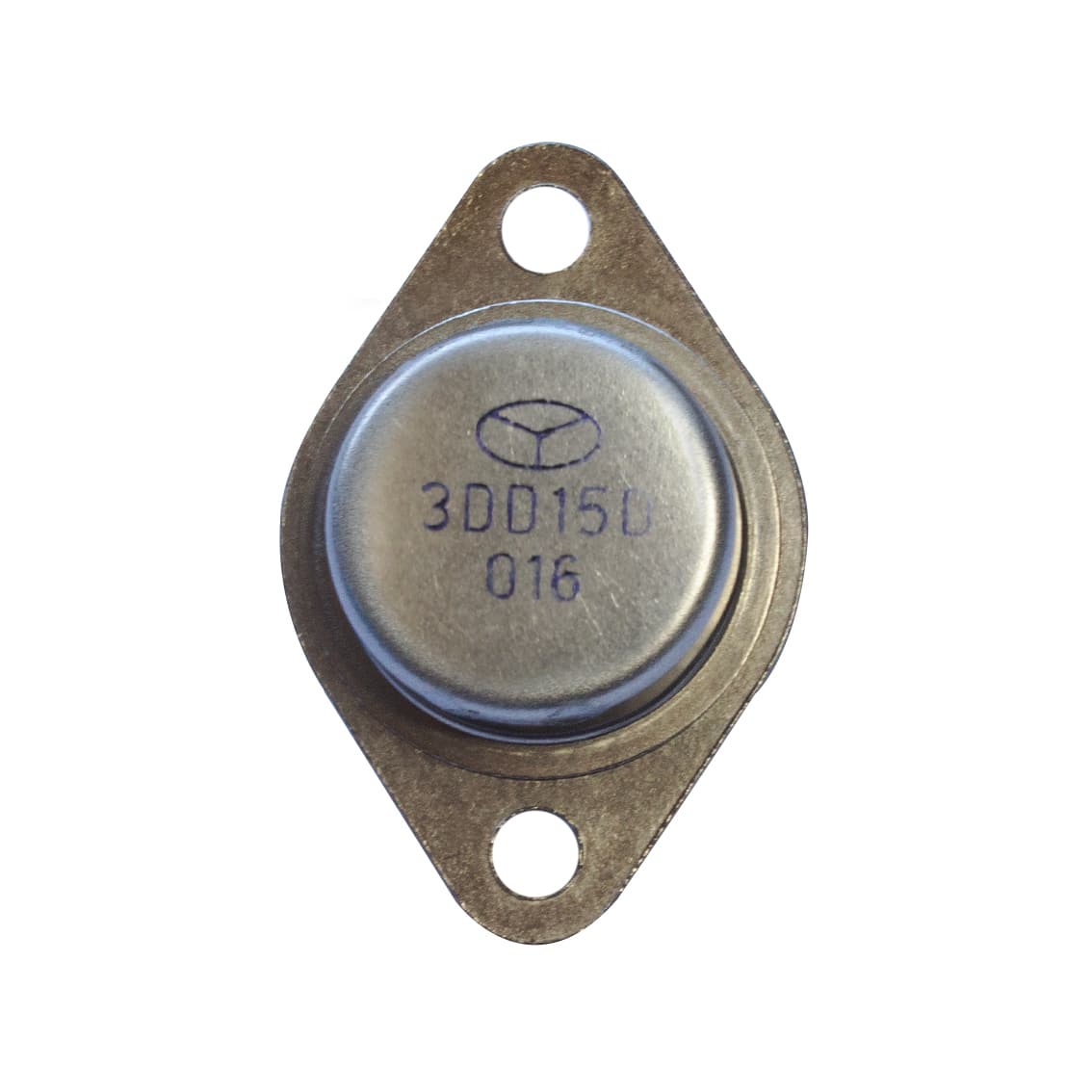

3DD15D 200V 5A NPN Transistor – Pack of 5

Description

The 3DD15D is a bipolar 200V 5A NPN transistor in a TO-3 case. read more

or 4 fortnightly payments of $2.74 with Afterpay More info

SKU:
PHI1052762
Category:
Tags:
,
Brand:

Transistor Polarity:

Type:

Mounting Type:

view all details

Price

$10.95

Quantity

- +

Total

$10.95

0 reviews

30 in stock

- +

Description

Description:

The 3DD15D is a bipolar 200V 5A NPN transistor in a TO-3 case.

When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices



Specifications:

  • Collector Emitter Voltage: 200 V
  • Collector Base Voltage: 300 V
  • Emitter Base Voltage: 5 V
  • Collector Current: 5 A
  • Collector Dissipation: 50 W
  • Mounting Style: Through Hole
  • Package / Case: TO-3
  • Transistor Polarity: NPN
  • Configuration: Single
  • Operating Temperature: -65 ⁰C – 175 ⁰C
  • Dimensions: 39.5mm x 26.2mm x 8.7mm



Contents:

  • 5 x 3DD15D 200V 5A NPN Transistor
