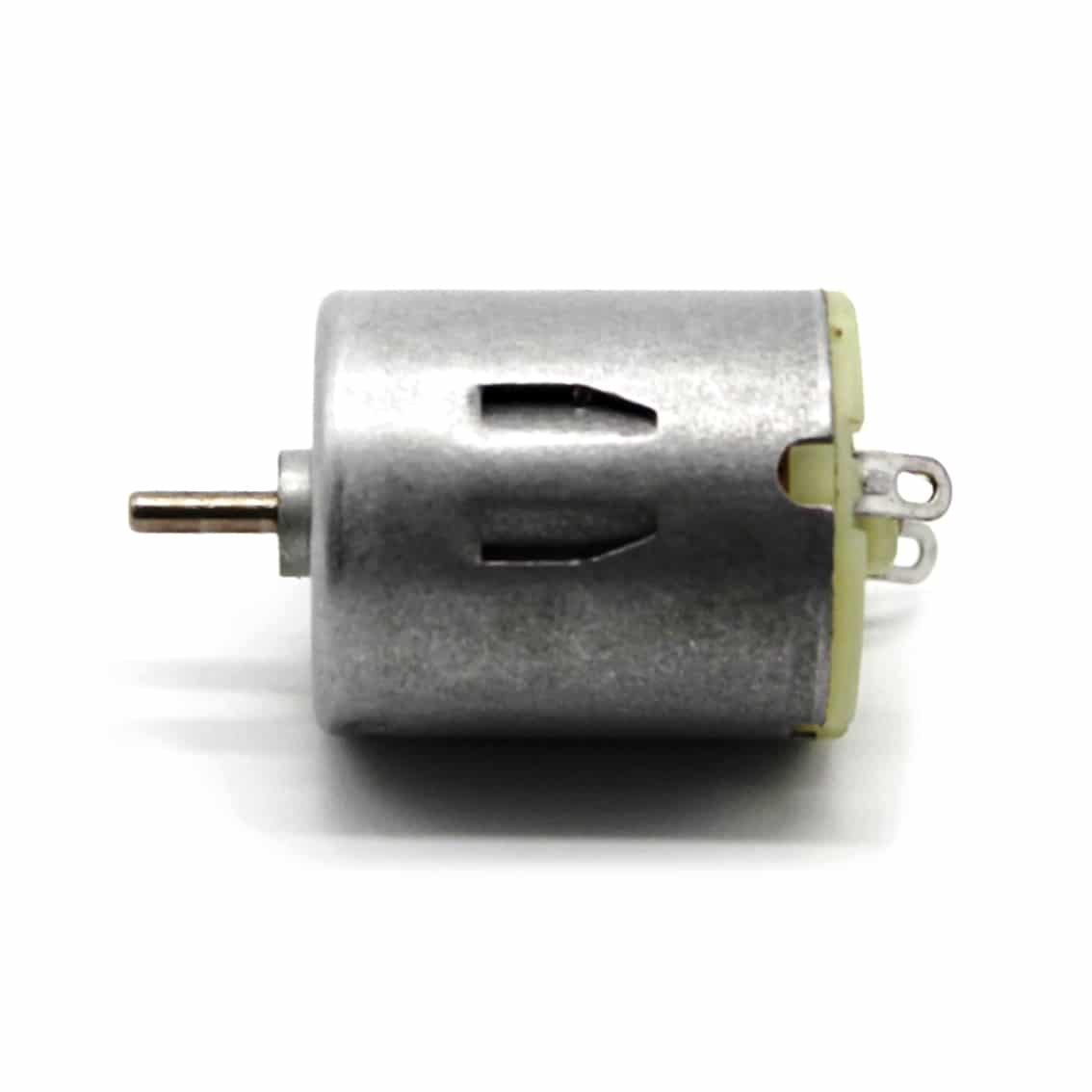

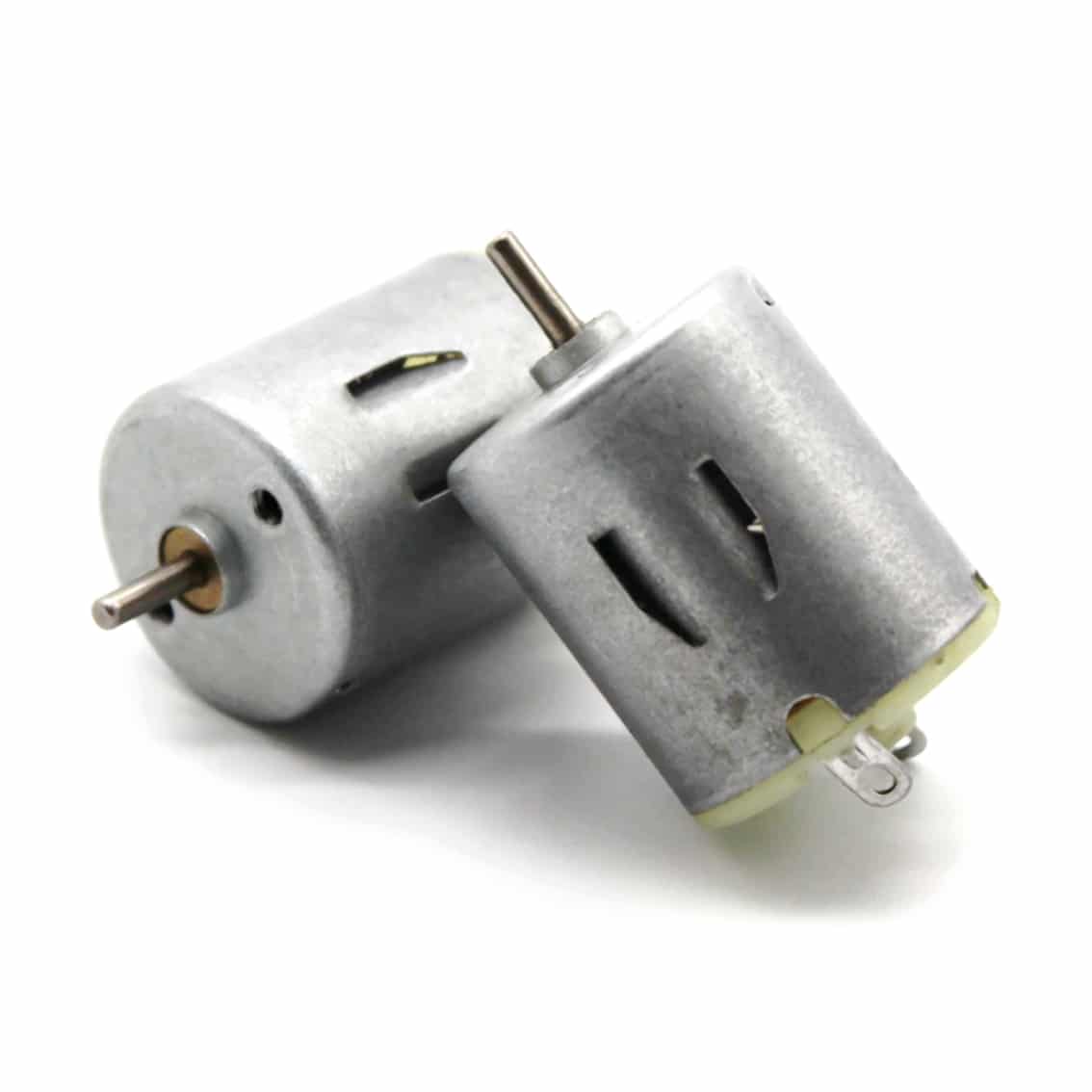

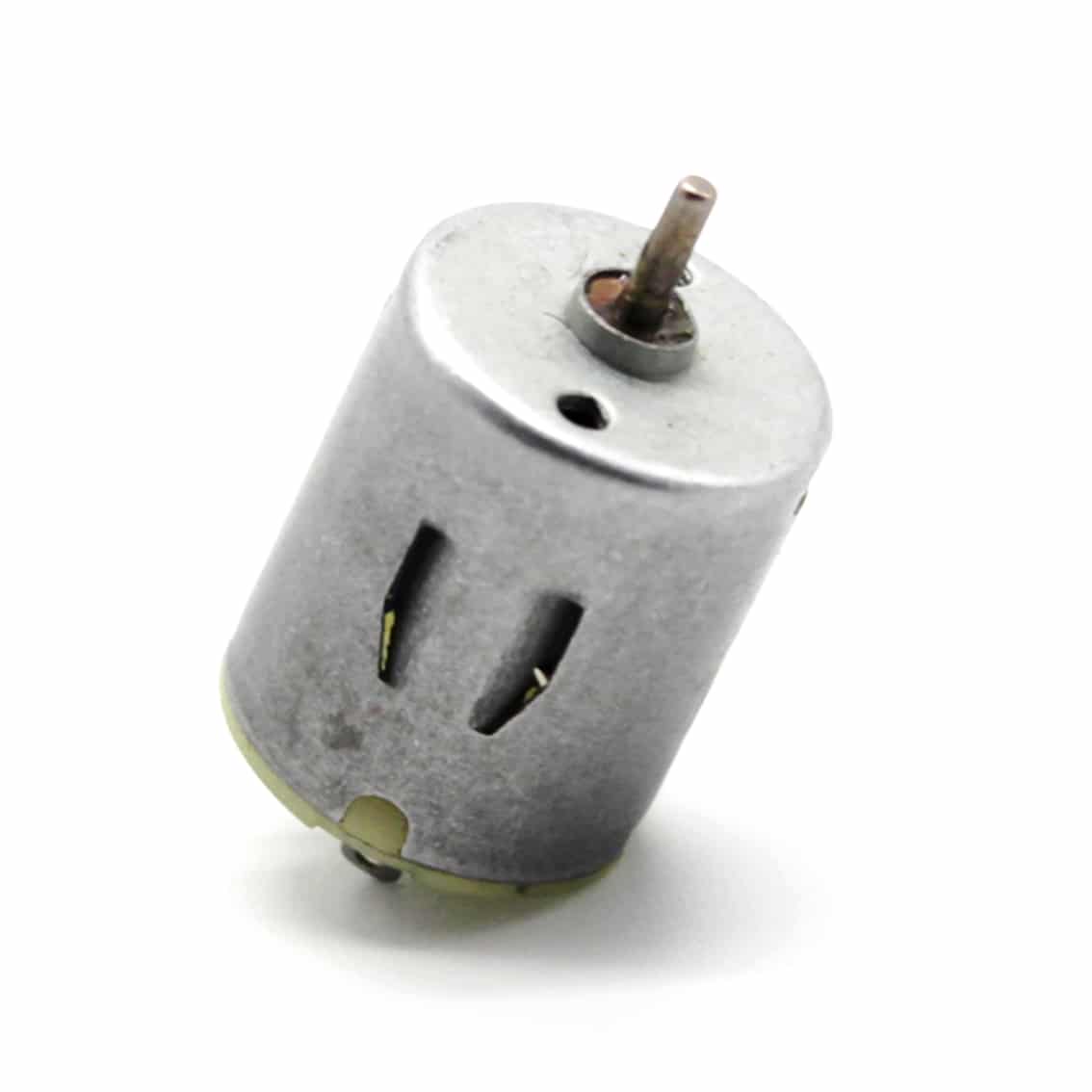

3V - 6V 270 Mini Round DC Motor - Pack of 2

The 270 DC Motor is a high-speed motor with an input voltage range of 3V – 6V and a maximum speed of 18,000rpm @ 6V / no load.

$10.95

Availability: 30 in stock

Buy now, pay later available.

SKU PHI1072562 Category Tags ,

Description:

The 270 DC Motor is a high-speed motor with an input voltage range of 3V – 6V and a maximum speed of 18,000rpm @ 6V / no load.



Specifications:

  • Input Voltage: 3V – 6V
  • Speed: 10,000rpm @ 3V / 18,000rpm @ 6V
  • Current: 110mA (no load @ 3V) / 1A (load @ 3V) / 190mA (no load @ 6V) / 900mA (load @ 6V)
  • Step Diameter: 6 mm
  • Step Height: 2 mm
  • Shaft Length: 6.6 mm
  • Fixed Aperture: 2.5 mm
  • Fixed Hole Distance: ~ 14 mm
  • Weight: ~ 20 g
  • Dimensions: 20.7 mm x 25 mm (Body)



Contents:

  • 2 x 3V – 6V 270 Mini Round DC Motor
