433MHz RF Wireless Transmitter and Receiver Module Kit

2 people have recently viewed this product!

433MHz RF Wireless Transmitter and Receiver Module Kit

The 433Mhz RF transmitter with receiver kit will create a wireless RF connection that can be used for remote control switch, receiver module, or other similar wireless applications/projects.

$14.95

Order Within –

Availability: Out of stock

Notify me via email when this product is back in stock.

All stock located in Australia.

Notify me via email when this product is back in stock.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002291

You May Also Like...

Description:

The 433Mhz RF transmitter with receiver kit will create a wireless RF connection that can be used for remote control switch, receiver module, or other similar wireless applications/projects.

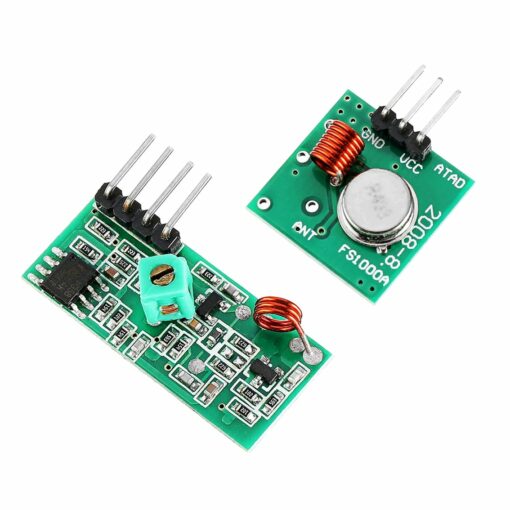

The kit consists of an XD-RF-5V 433MHz receiver and XD-FST 433MHz transmitter.



Specifications:

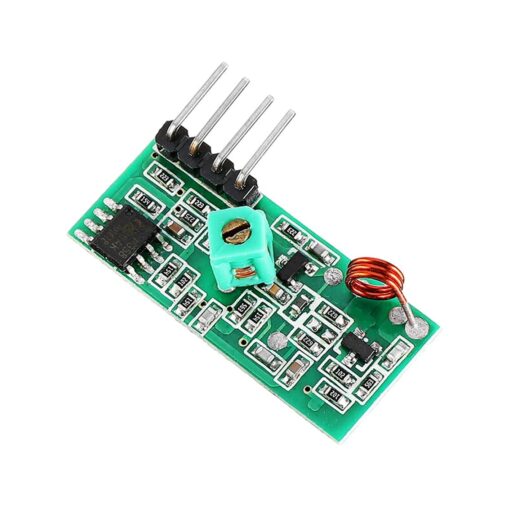

  • Receiver:
    • Model: XD-RF-5V
    • Operating voltage: 5VDC
    • Quiescent current: 4MA
    • Receiving frequency: 433.92 MHz
    • Receiver sensitivity: -105 dB
    • Dimensions: 30mm x 14mm x 7mm

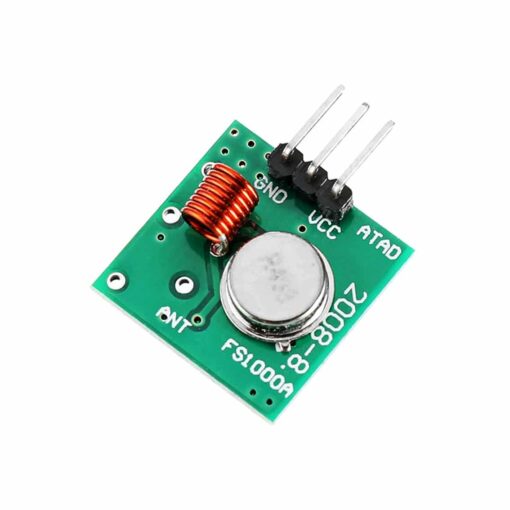

  • Transmitter:
    • Model: XD-FST
    • Transmit distance: 20 – 200 meters (varies by input power and line of sight)
    • Operating voltage: 3.5VDC – 12VDC
    • Transfer rate: 4KB/s
    • Transmitting power: 10mW
    • Transmitting frequency: 433 MHz
    • Dimensions: 19mm x 19mm



Contents:

  • 1 x XD-RF-5V 433MHz RF Receiver
  • 1 x XD-FST 433MHz RF Transmitter
Weight 0.004 kg
Dimensions 90 × 5 × 60 mm
