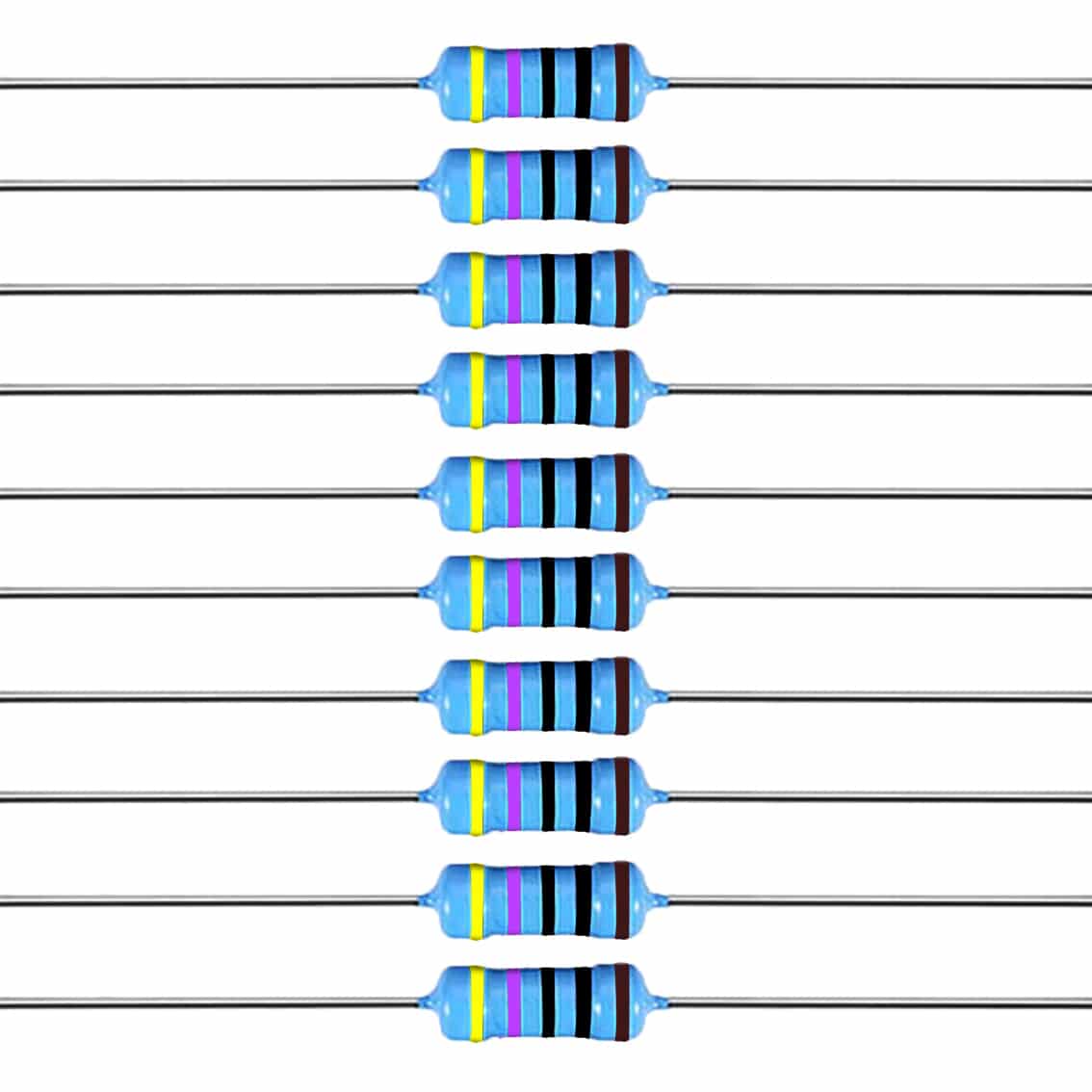

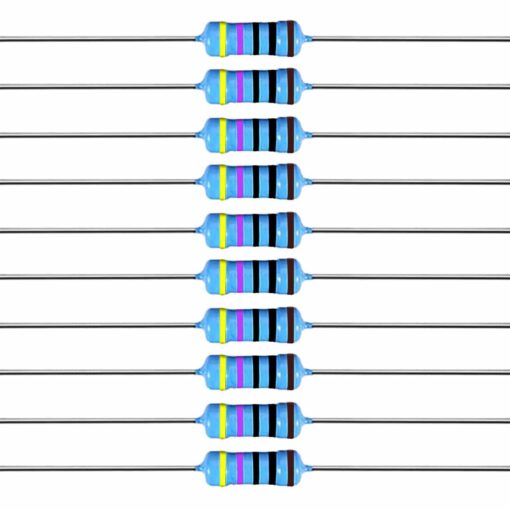

470R Ohm 0.25W 1% Metal Film Resistor – Pack of 100

44 people have recently viewed this product!

470R Ohm 0.25W 1% Metal Film Resistor – Pack of 100

470 Ohm metal film resistors with 1% tolerance in a 100-pack. Ideal for current limiting, signal damping, and input protection in electronic circuits.

$14.95

Order Within –

All stock located in Australia.

Availability: 57 in stock

EXPRESS SHIPPING Available.

SKU: PHI1001500

Description:

The 470R Ohm 0.25W 1% Metal Film Resistor is a reliable and accurate component suited for general-purpose electronics, especially in current-limiting, signal damping, and input protection circuits. With its low noise and stable resistance, it ensures consistent operation in audio and digital designs.

Its ±1% tolerance and robust metal film construction offer high reliability, while the axial lead design ensures ease of use on breadboards and through-hole PCBs. This resistor is widely used in commercial, educational, and DIY electronics. Sold in a 100-piece pack, it’s ideal for stocking up or mass production.

Specifications:

  • Resistance: 470 Ohm (470R)
  • Power Rating: 0.25W (¼ Watt)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100 ppm/°C
  • Resistor Type: Metal Film
  • Max Working Voltage: 250V
  • Max Overload Voltage: 500V
  • Lead Type: Axial
  • Operating Temperature: -55°C to +155°C

Features:

  • 470 Ohm resistance with 1% tolerance for precision current control
  • Low noise and high thermal stability with metal film construction
  • Axial leads make it easy to install in breadboards and PCBs
  • Used in LED control, signal damping, and pull-up/down circuits
  • 100-piece bulk pack offers value for projects and repairs

Contents:

  • 100 x 470R Ohm 0.25W 1% Metal Film Resistors
Weight 0.012 kg
Dimensions 130 × 10 × 90 mm
Brand

Type

Resistance

470R

Maximum Working Voltage

Max Power Dissipation

250mW

Power Rating

Tolerance

Operating Temperature

Termination

Mounting Type
