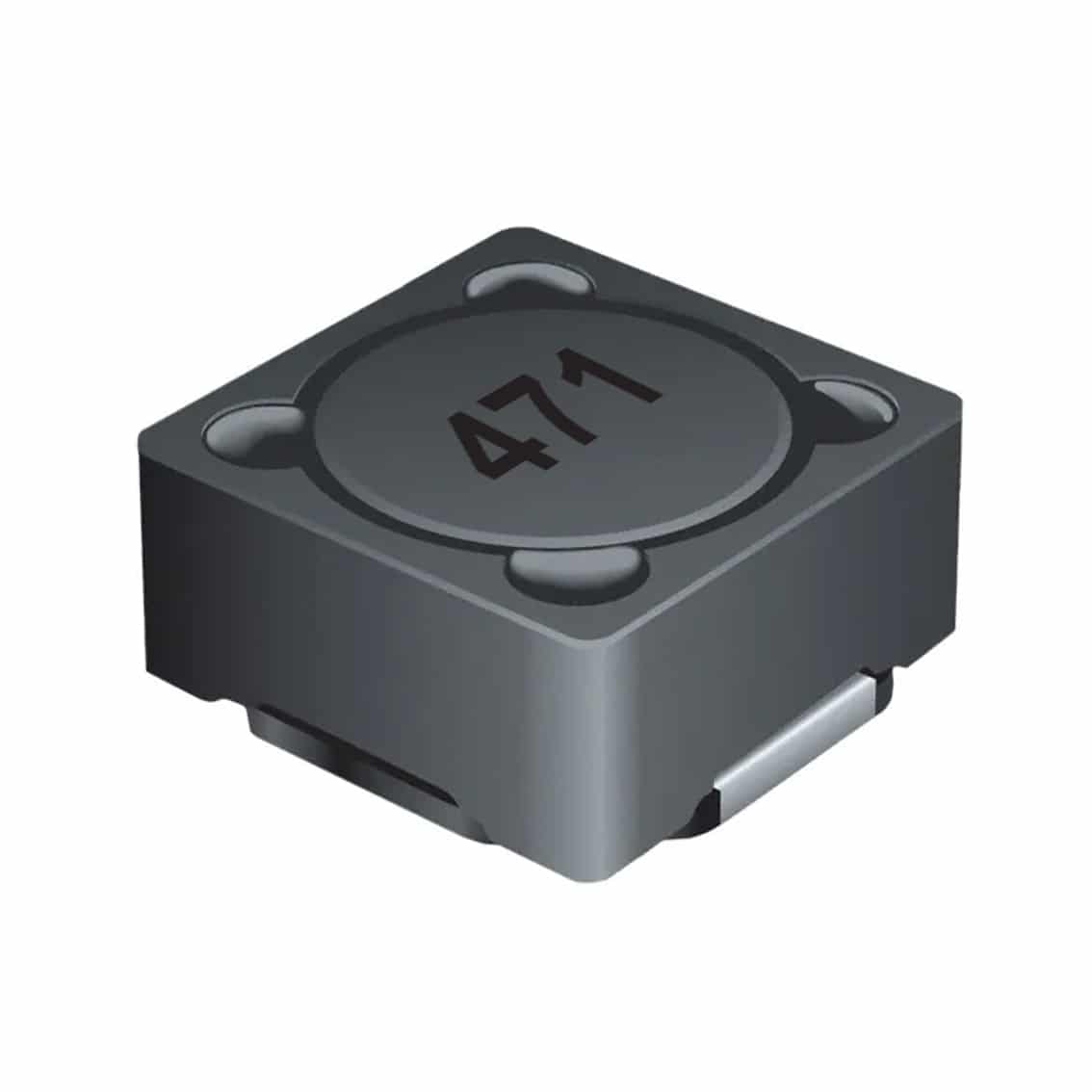

470uH SMD Power Inductor 471 - Pack of 10

This SMD Power Inductor has an inductance of 470uH with a maximum DC current of 950mA and maximum resistance of 820mΩ.

$12.95

Availability: 30 in stock

Buy now, pay later available.

SKU PHI1052549 Category Tags , ,

Description:

This SMD Power Inductor has an inductance of 470uH with a maximum DC current of 950mA and maximum resistance of 820mΩ.

It comes in a pack of 10 and has a tolerance of + / – 10%.

An SMD Power Inductor is used to store energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.



Specifications:

  • Inductance: 470 uH
  • Max DC Current: 950mA
  • Max DC Resistance: 820 mΩ
  • Self-Resonant Frequency: 40 MHz
  • Tolerance: ± 10 %
  • Package / Case: 1260
  • Shielded: Yes
  • Core Material: Ferrite
  • Inductor Type: Fixed Power Inductor
  • Type: Power Choke
  • Mounting Type: SMD / SMT
  • Operating Temperature: -55 to +125 degrees Celsius
  • Weight: 4.6g
  • Dimensions: 12.5mm x 12.5mm x 6mm



Contents:

  • 10 x 470uH SMD Power Inductor
