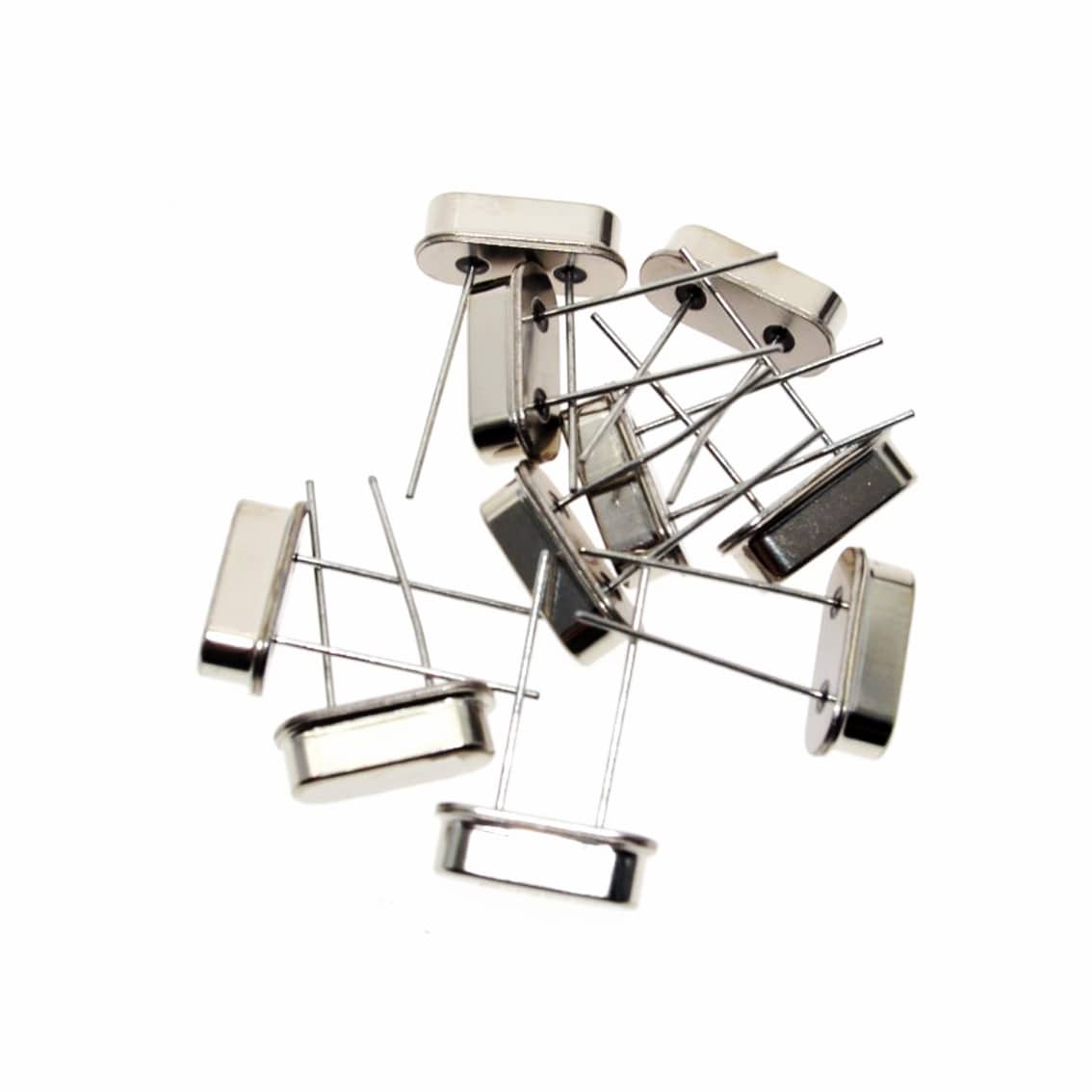

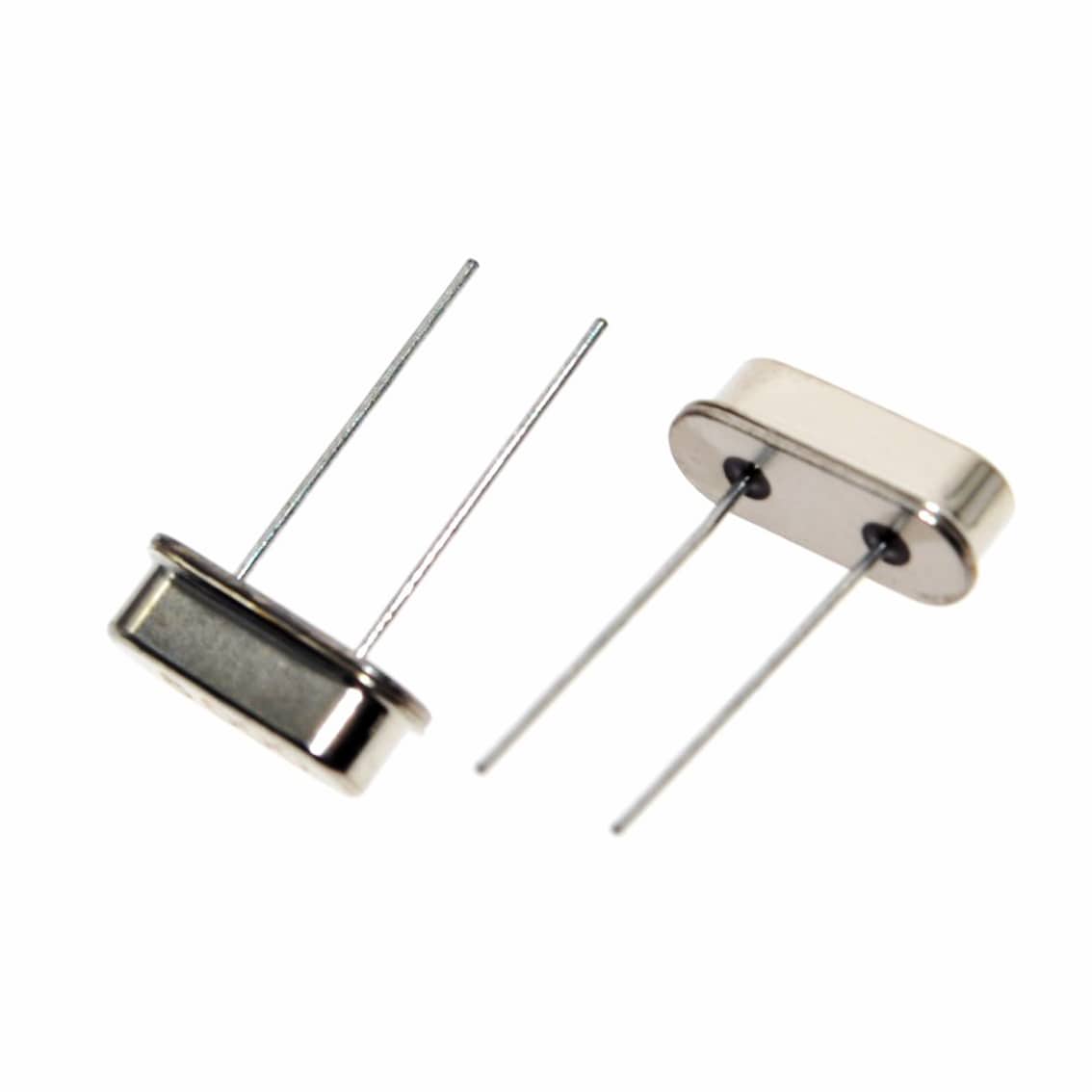

50 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

38 people have recently viewed this product!

50 MHz Quartz Crystal Oscillator HC-49S – Pack of 10

50 MHz HC-49S quartz crystal oscillators with ±30 ppm tolerance. Supplied in 10-pack, perfect for RF, communication, and high-speed microcontroller circuits.

$14.95

Order Within –

All stock located in Australia.

Availability: 42 in stock

EXPRESS SHIPPING Available.

SKU: PHI1002500

Description:

The 50 MHz Quartz Crystal Oscillator in HC-49S package delivers precise and stable frequency generation, making it a key component in high-speed communication systems, RF circuits, and microcontroller-based devices. With a tolerance of ±30 ppm, it ensures accurate clocking performance over a wide temperature range.

Built in the standard HC-49S through-hole package, it is easy to integrate into breadboards and PCBs. With low noise and excellent long-term stability, it is suitable for demanding timing applications. Delivered in a 10-pack, it provides great value for engineers, technicians, and hobbyists.

Specifications:

  • Frequency: 50.000 MHz
  • Package: HC-49S (through-hole)
  • Load Capacitance: 20 pF
  • Frequency Tolerance: ±30 ppm
  • Frequency Stability: ±50 ppm
  • Shunt Capacitance: ≤7 pF
  • Drive Level: 100 µW (max 1 mW)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C

Features:

  • 50 MHz oscillation with ±30 ppm accuracy
  • HC-49S standard through-hole package
  • Low noise and excellent stability
  • Perfect for RF, digital, and high-speed communication systems
  • 10-pack bulk set for efficient stocking

Contents:

  • 10 x 50 MHz Quartz Crystal Oscillator (HC-49S)
Weight 0.006 kg
Dimensions 70 × 5 × 50 mm
Brand

Type

Frequency

Load Capacitance

Frequency Tolerance

±30 ppm

Frequency Stability

Shunt Capacitance

Maximum Output Power

Operating Temperature

Storage Temperature

Package / Case

Mounting Type
