Description:

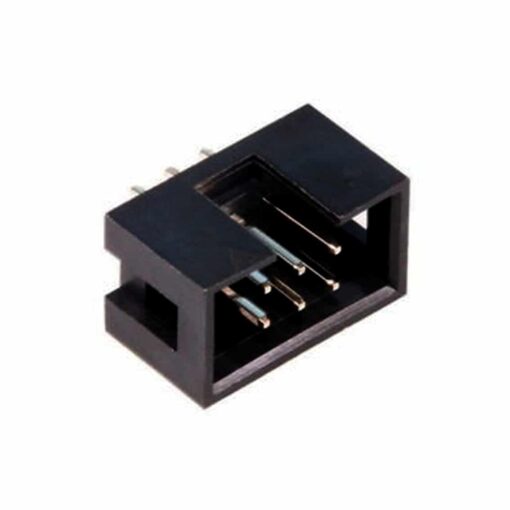

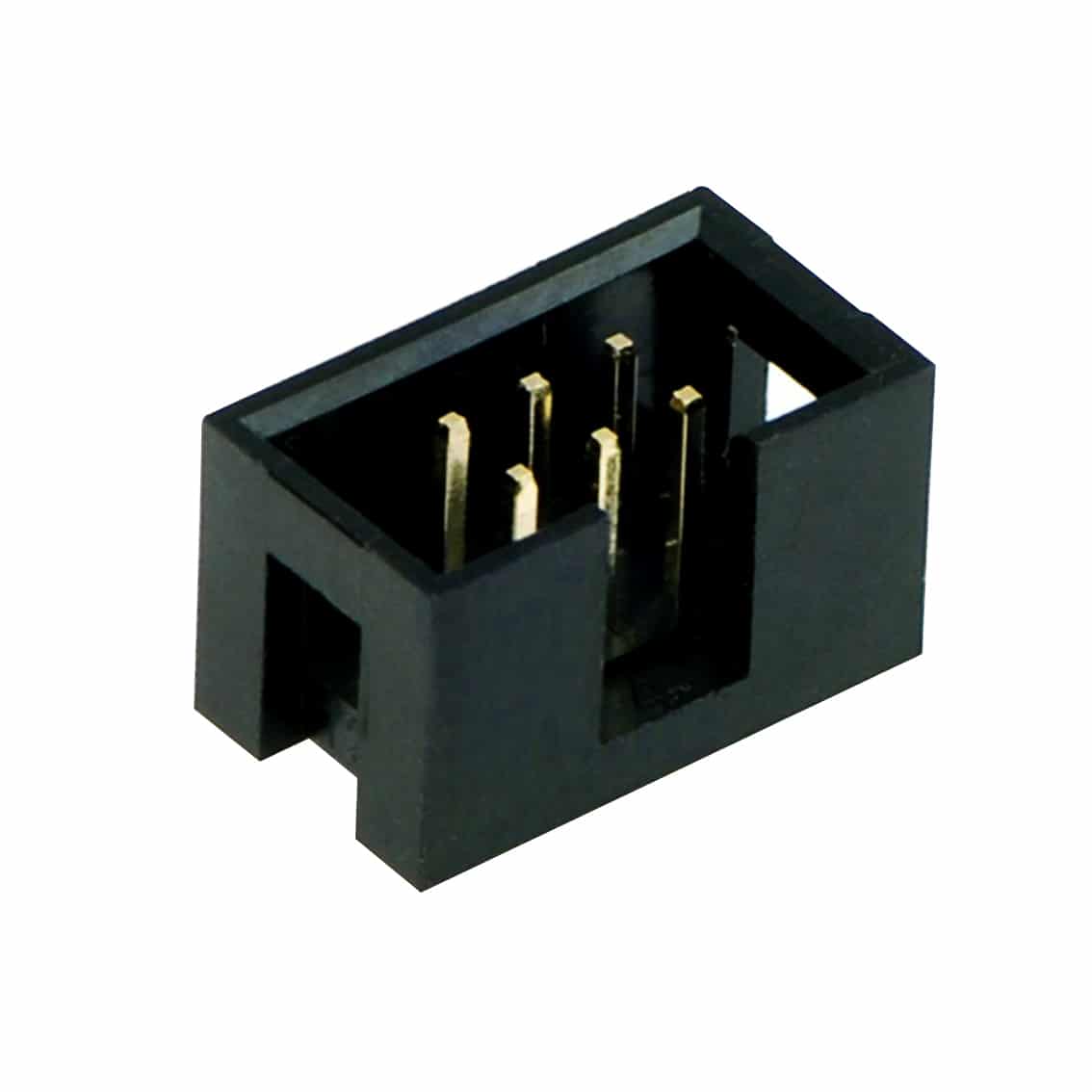

The 6 Way IDC Polarised Male Header Connector – Pack of 5 is an essential component for establishing robust and secure ribbon cable connections in digital, embedded, and industrial electronic systems. Designed for use with 1.27mm pitch ribbon cables and 2.54mm standard grid PCBs, these IDC connectors ensure proper alignment and prevent reverse insertion through their keyed polarisation notch.
Each connector features a dual-row, 3×2 pin configuration compatible with 6-way IDC female sockets. The through-hole mount design allows for strong mechanical retention on PCBs, while the polarised design ensures correct cable orientation. These connectors are widely used in applications such as microcontroller interfaces, ISP programming headers, and signal routing between PCBs. Supplied in a convenient 5-pack, they are ideal for prototyping, production, or repair work where reliable and repeatable cable connectivity is required.
Specifications:
- Connector Type: IDC Polarised Male Header
- Number of Positions: 6 (2 x 3 configuration)
- Pitch: 2.54mm (0.1 inch)
- Mounting Type: Through-Hole
- Orientation: Vertical
- Keying: Polarised with central notch to prevent incorrect insertion
- Contact Material: Phosphor bronze or brass (tin or gold plated)
- Housing Material: Thermoplastic UL94V-0 rated
- Rated Current: Up to 3A per contact
- Operating Voltage: Up to 250V
- Operating Temperature Range: -40°C to +105°C
- Compatibility: Standard IDC ribbon cable sockets, 6-way cables, ISP headers
- Pack Size: 5 connectors
Features:
- Polarised design ensures correct cable orientation and insertion
- Compatible with standard 6-way IDC ribbon cable sockets
- 2.54mm pitch for standard PCB grid layouts
- Through-hole mounting offers strong mechanical durability
- Widely used in ISP programming, microcontroller headers, and PCB interconnects
Contents:
- 5 x 6 Way IDC Polarised Male Header Connectors
