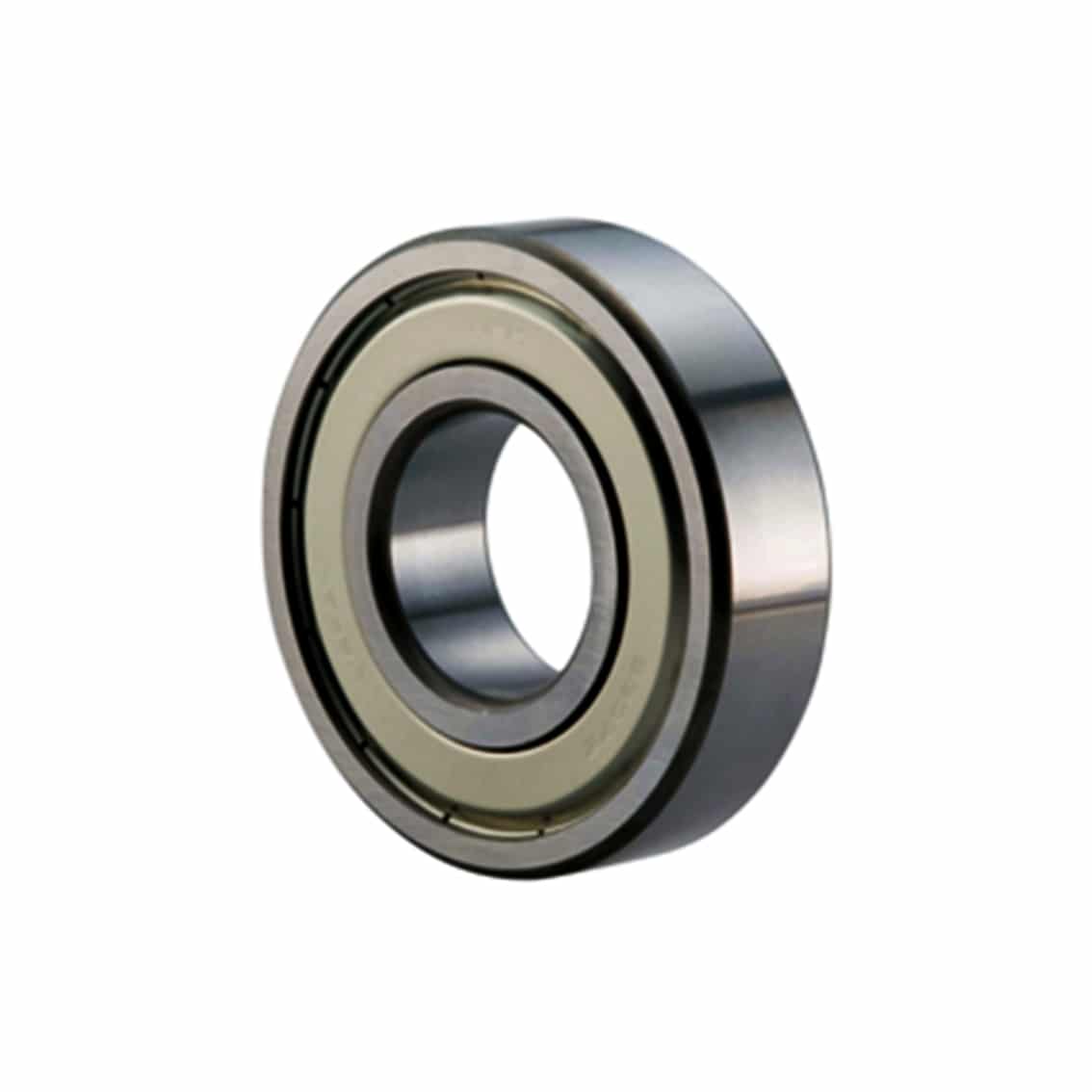

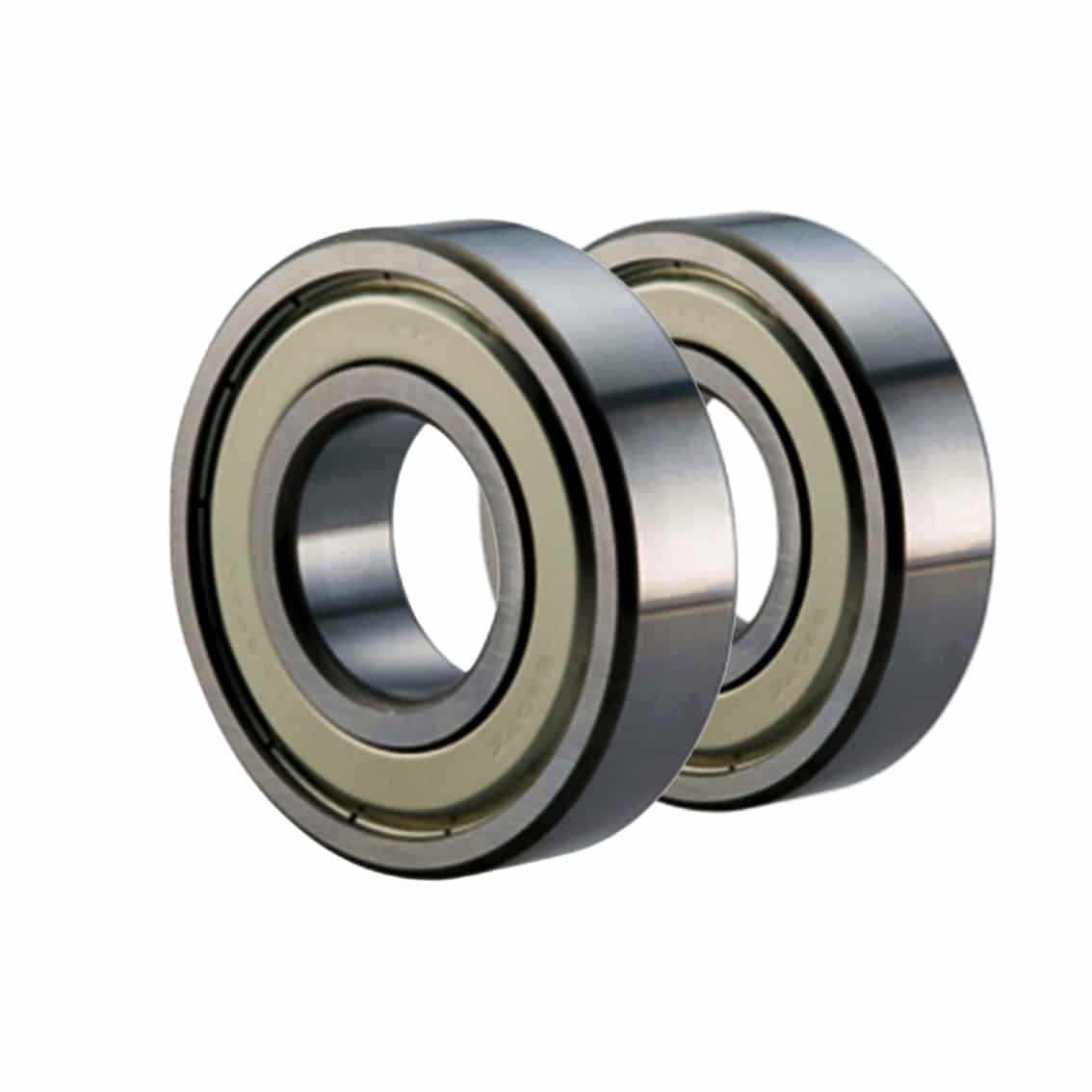

609ZZ Deep Groove Ball Bearing - Pack of 5

The 609ZZ Deep Groove Ball Bearing is a single row deep groove radial ball bearing.


Availability: 47 in stock

Buy now, pay later available.

SKU PHI1062655 Category Tag


The 609ZZ Deep Groove Ball Bearing is a single row deep groove radial ball bearing.

Coming in a pack of 5, the 609ZZ is double shielded with normal clearance and is 9mm x 24mm x 7mm (Bore x Diameter x Width).

Suitable for installations with limited space and on thin shafts with the ability to handle very high speeds.



  • Model: 609ZZ
  • Tolerance for inside-Ø (mm): 0/-0,008
  • Tolerance for outside-Ø (mm): 0/-0,009
  • Tolerance for width (mm): 0/-0,12
  • Rows Of Balls: Single Row
  • Seal: ZZ
  • Internal Clearance: CN (Standard)
  • Flange: No
  • Slot & Snap Ring: No
  • Ring Material: Chrome Steel
  • Rolling Element Material: Chrome Steel
  • Cage Material: Sheet Steel
  • Full Complement Ball Set: No
  • Magnetic: Yes
  • Type of lubrication: Greased
  • Lifetime lubricated: Yes
  • Product weight: 15g
  • Dimensions: 9mm x 24mm x 7mm (Bore x Diameter x Width)



  • 5 x 609ZZ Deep Groove Ball Bearings
