Description:

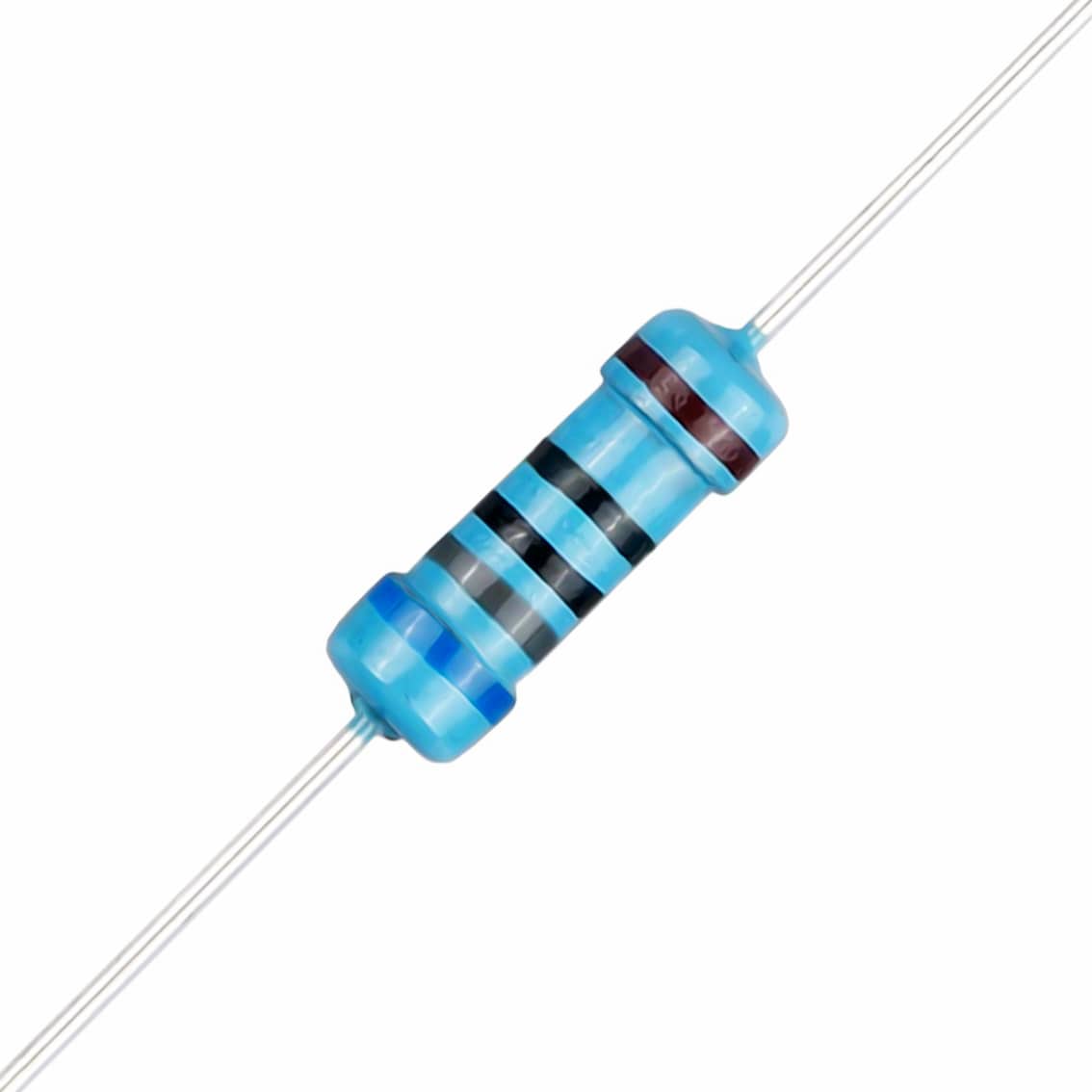

The 680 Ohm Metal Film Resistor offers precise resistance with excellent thermal stability, making it a trusted choice in analogue signal processing, LED circuits, and timing applications. With a 0.50W power rating and 1% tolerance, this resistor delivers consistent performance and low noise, ideal for applications where accuracy and reliability are essential. The 680 Ohm Metal Film Resistor is especially effective in circuits requiring well-defined resistance values without significant drift.
This pack of 100 resistors provides a cost-effective solution for prototyping, repairs, and volume assembly. The standard axial lead configuration allows easy integration into breadboards and PCBs. Whether you’re building audio systems, voltage-controlled circuits, or microcontroller-based designs, these resistors are a dependable and easy-to-use component.
Specifications:
- Resistance: 680 Ohm (680R)
- Power Rating: 0.50W (1/2 Watt)
- Tolerance: ±1%
- Technology: Metal Film
- Temperature Coefficient: ±50 ppm/°C (typical)
- Maximum Working Voltage: 250V
- Maximum Overload Voltage: 500V
- Body Size: Approx. 3.2 mm x 9 mm
- Lead Type: Axial
- Operating Temperature Range: -55°C to +155°C
Features:
- 680 Ohm resistance with 1% tolerance for high accuracy
- Low noise, stable performance from metal film technology
- Suitable for signal conditioning, audio filtering, and LED control
- Axial leads for quick setup in PCBs or breadboards
- Bulk pack ideal for repairs, education, or batch production
Contents:
- 100 x 680R Ohm 0.50W 1% Metal Film Resistors
