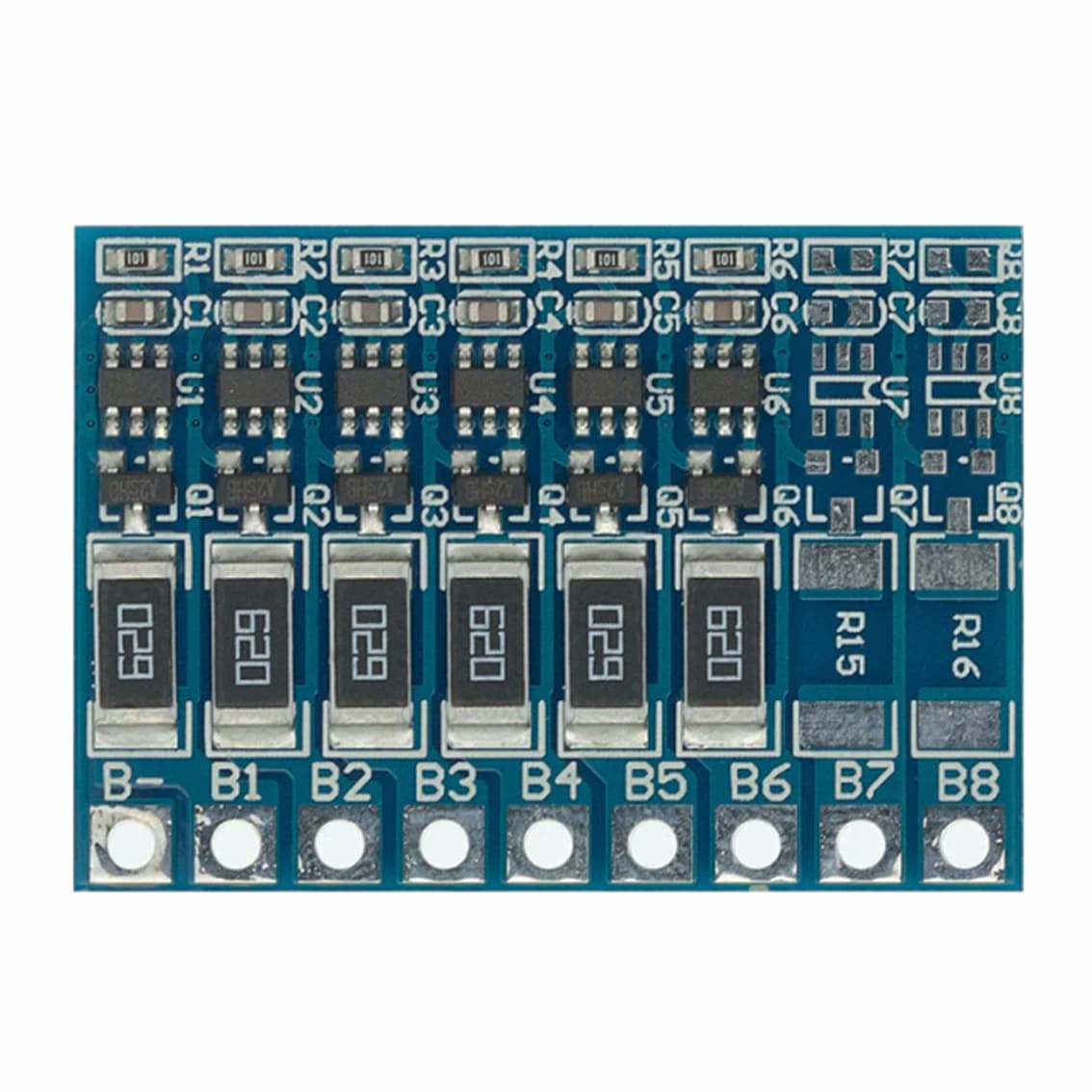

Description:
The 6S 4.2V 18650 Equalisation Balance Board is a protection module designed for 6-series lithium-ion battery packs, typically utilising 18650 cells. Operating at a nominal voltage of 25.2V, this board safeguards battery packs from overcharging, over-discharging, and excessive current drain, thereby preventing potential hazards such as explosions, fires, and cell damage. It ensures each cell within the battery pack is balanced, promoting uniform charging and discharging cycles, which extends the overall lifespan and efficiency of the battery pack.
The board features a balance voltage of 4.2V per cell and an equalising current of 66mA, effectively maintaining cell voltage consistency. Its compact dimensions of 38mm x 26mm x 3mm allow for easy integration into various battery configurations. This equalisation balance board is an essential component for maintaining the safety and performance of lithium-ion battery systems in applications such as electric vehicles, energy storage systems, and portable electronic devices.
Specifications:
- Supply Voltage: 25.2V DC
- Balance Voltage: 4.2V DC per cell
- Equalising Current: 66mA
- Dimensions: 38mm x 26mm x 3mm
Features:
- Protects 6-series lithium-ion battery packs from overcharging, over-discharging, and over-drain
- Balances each cell to ensure uniform charging and discharging
- Compact size for easy integration into various battery configurations
- Enhances battery pack safety and extends overall lifespan
Contents:
- 1 x 6S 4.2V 18650 Equalisation Balance Board – 25.2V
