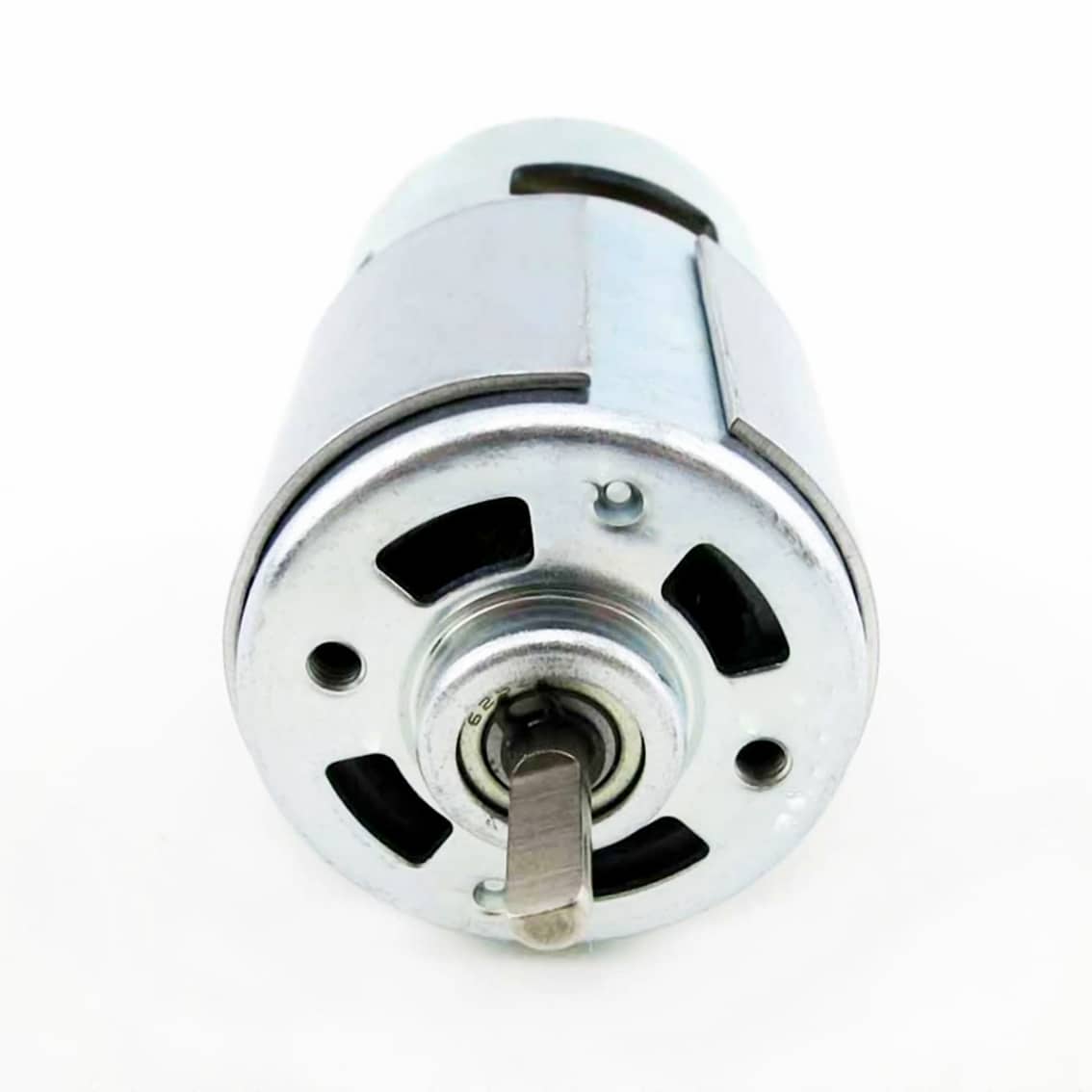

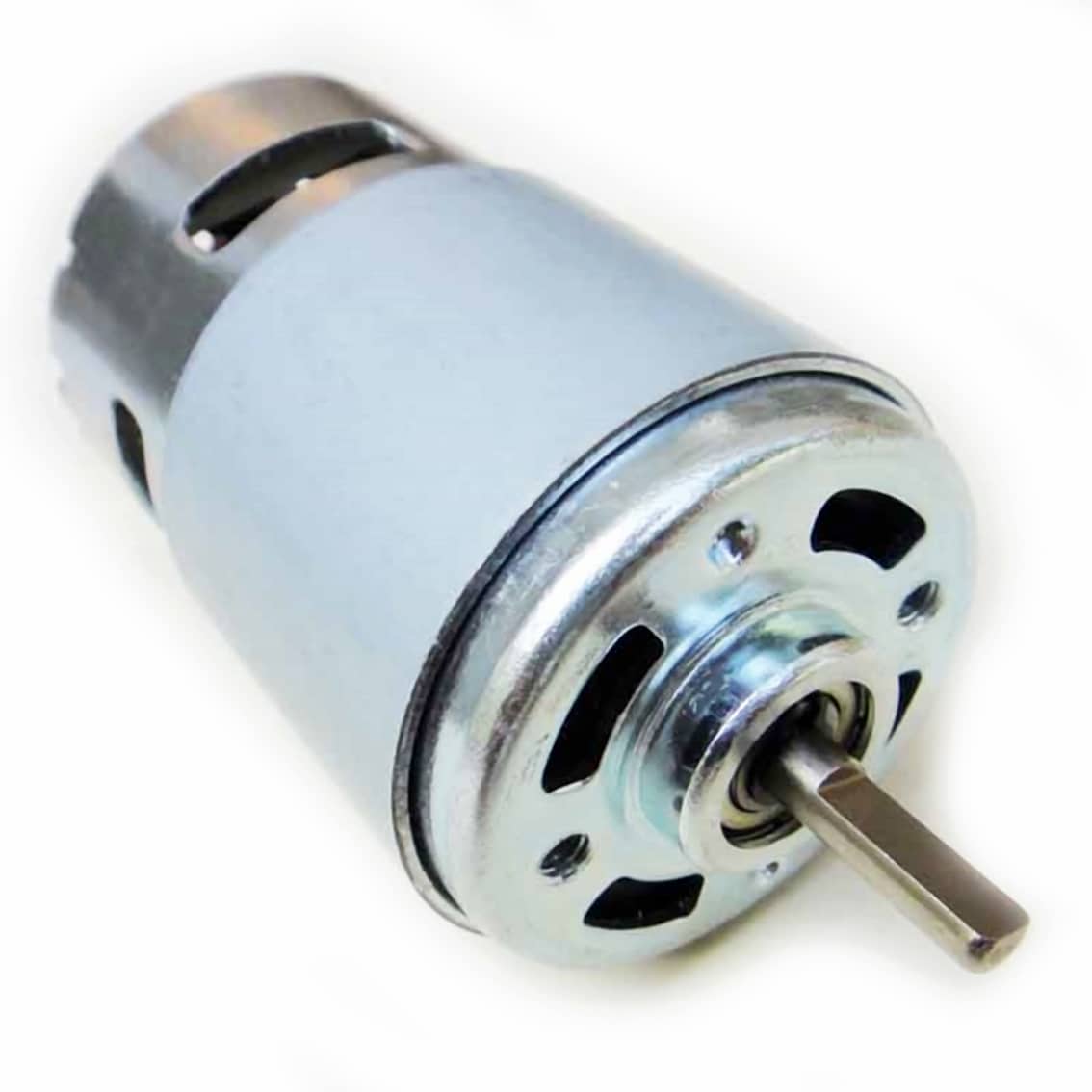

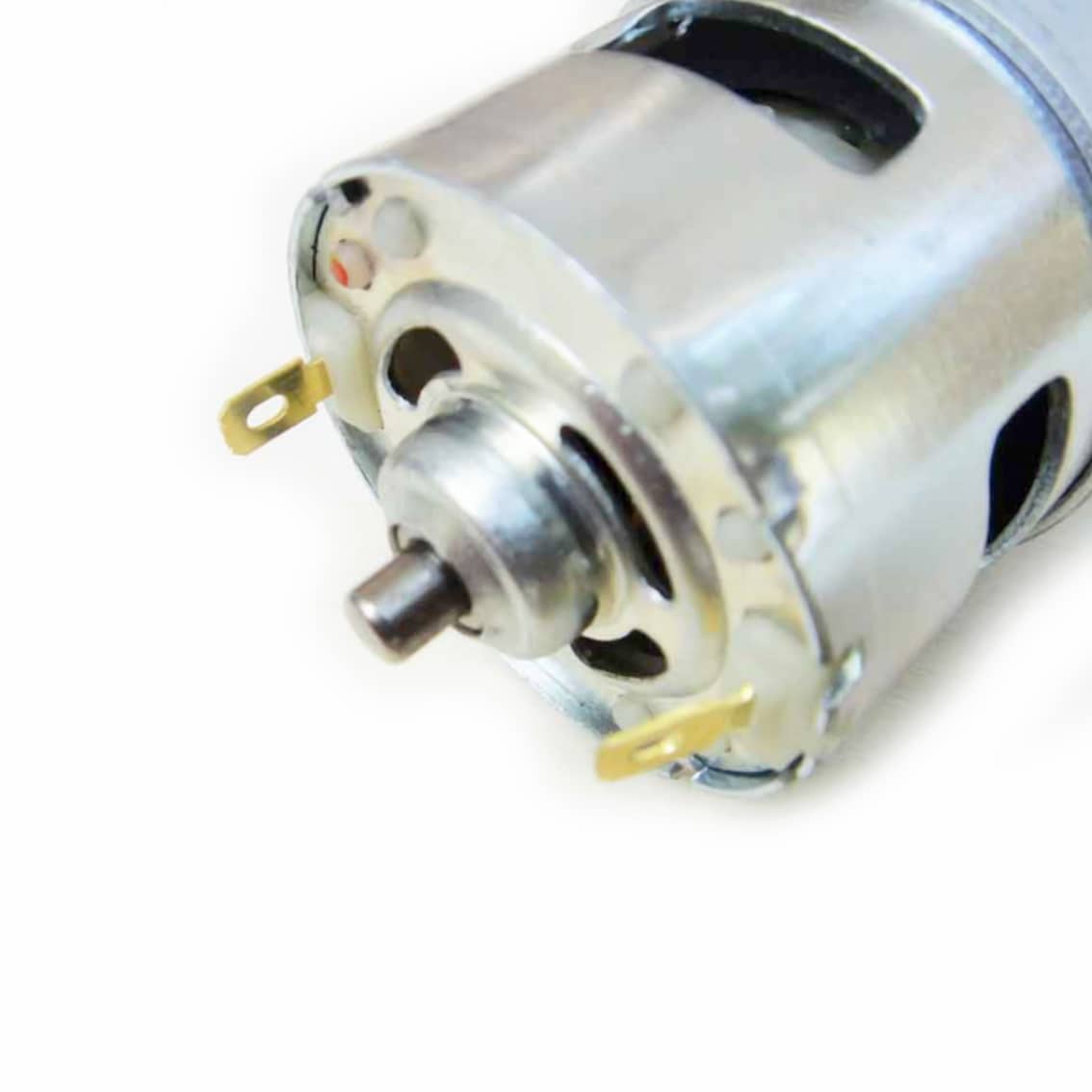

775 12V – 24V D-Axis High Speed DC Motor

27 people have recently viewed this product!

775 12V – 24V D-Axis High Speed DC Motor

The 775 12V – 24V D-Axis High-Speed DC Motor is a DC motor classified as a 775 DC Motor and works with 12 to 24 VDC. It is mainly used as a powerful motor for power tools and equipment.

$37.95

Order Within –

Availability: 23 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002578

Description:

The 775 12V – 24V D-Axis High-Speed DC Motor is a DC motor classified as a 775 DC Motor and works with 12 to 24 VDC. It is mainly used as a powerful motor for power tools and equipment.



Specifications:

  • Operating Voltage: 12V to 24V DC
  • Operating Current: 0.27A to 3.25A
  • Speed: 10000RPM @ 12V / 20000RPM @ 24V
  • Shaft Length: 16mm
  • Shaft Diameter: 5mm shaft (cutting edge 1.5mm, cutting edge length 13mm)
  • Motor Diameter: 42mm
  • Motor Length: 66.5mm



Contents:

  • 1 x 775 12V – 24V D-Axis High-Speed DC Motor
Weight 0.354 kg
Dimensions 140 × 40 × 100 mm
