Description:

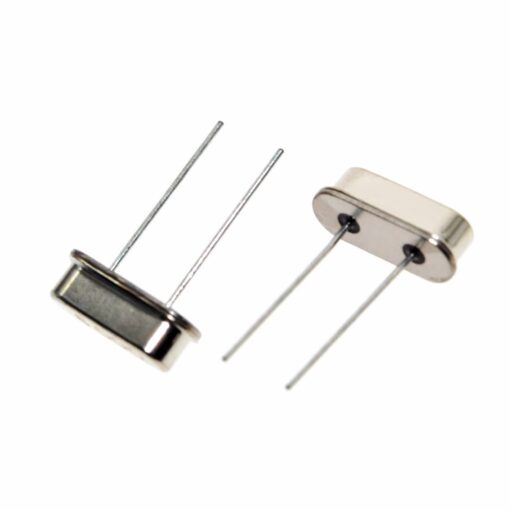

The 8 MHz Quartz Crystal Oscillator in HC-49S package is a dependable and accurate timing component used in a wide range of microcontroller-based systems. With its stable 8 MHz frequency, it is a popular choice for lower-speed timing applications where power efficiency and reliable performance are critical. The 8 MHz Quartz Crystal Oscillator is often employed in Arduino projects, embedded controllers, and timing circuits requiring consistent clock signals.
Each oscillator in this 10-piece pack features a compact through-hole HC-49S form, ideal for prototyping and integration into final PCB designs. Thanks to its ±30 ppm frequency tolerance and standard 18 pF load capacitance, it delivers consistent results in both commercial and educational electronics environments. Additionally, its wide operating temperature range ensures stable operation under varying conditions.
Specifications:
- Frequency: 8 MHz
- Package: HC-49S (through-hole)
- Load Capacitance: 18 pF (typical)
- Frequency Tolerance: ±30 ppm at 25°C
- Temperature Stability: ±50 ppm (-20°C to +70°C)
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Equivalent Series Resistance (ESR): Typically 60 Ω
- Dimensions: Approx. 11.5 mm x 4.6 mm x 3.5 mm
- Lead Type: 2-pin through-hole
- RoHS Compliant: Yes
Features:
- Stable 8 MHz clock source for microcontroller and digital circuits
- Ideal for low-power and low-speed embedded applications
- Standard HC-49S housing offers durability and ease of use
- Consistent performance over a broad temperature range
- Perfect for Arduino, AVR, PIC, and educational development boards
Contents:

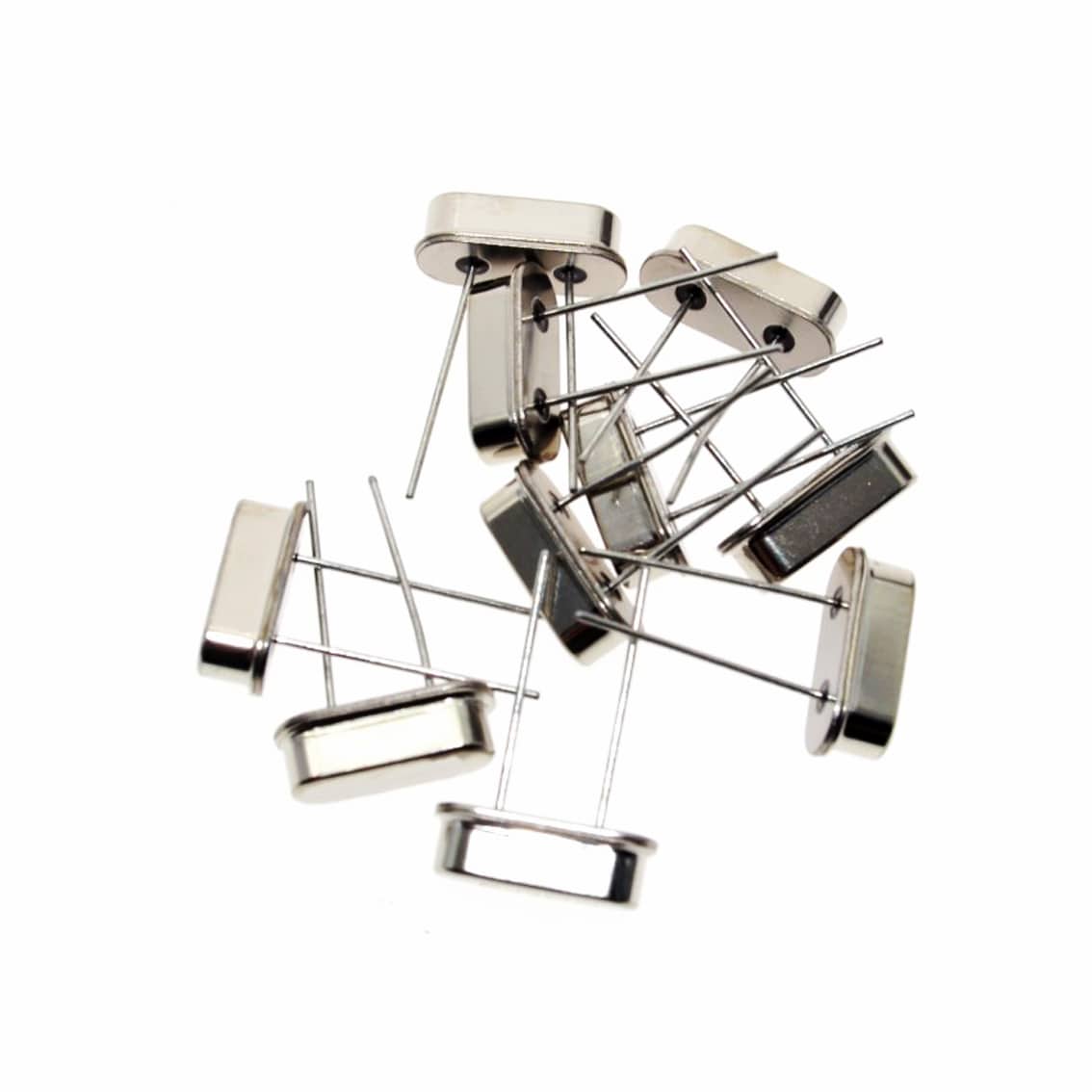

- 10 x 8 MHz Quartz Crystal Oscillator (HC-49S)
