Description:

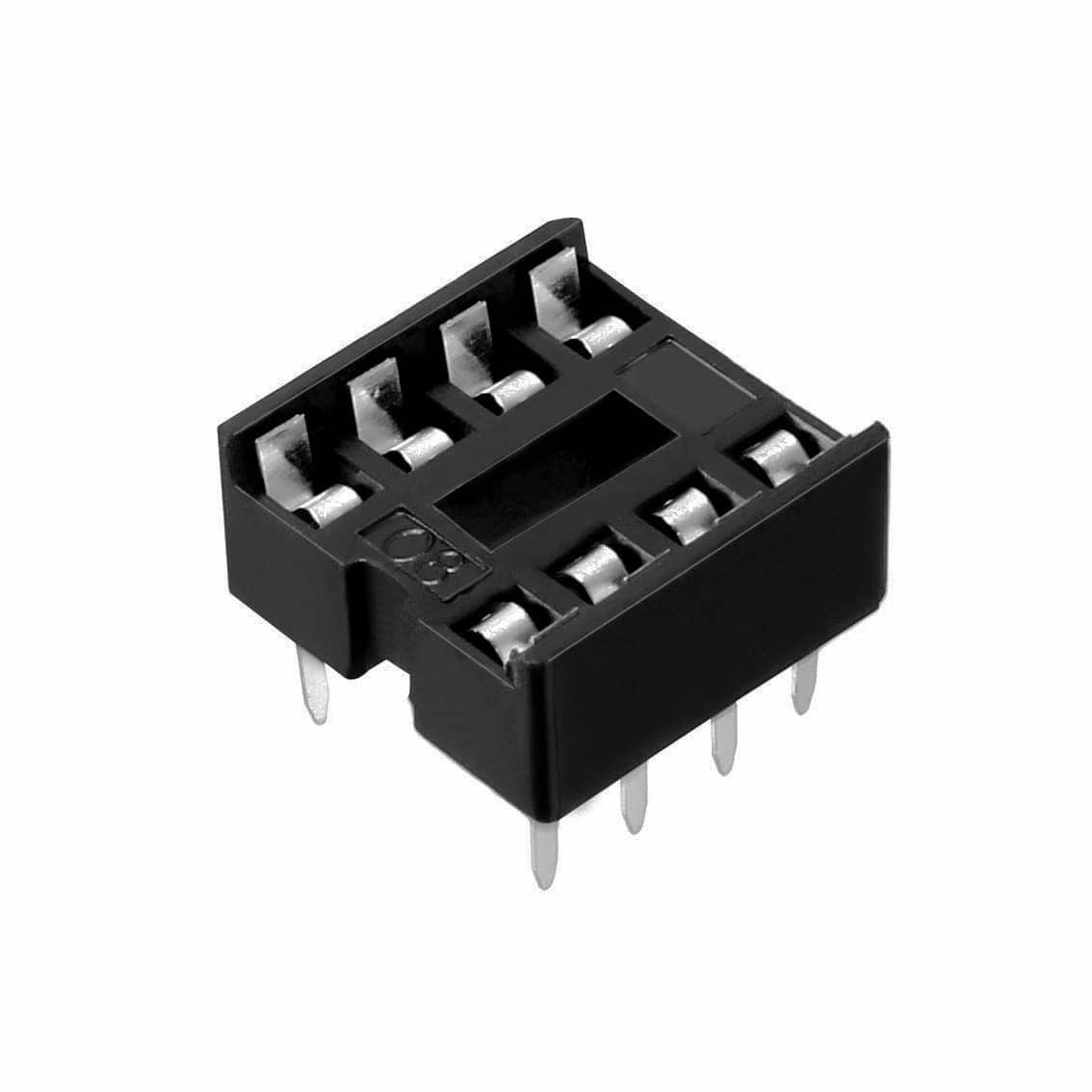

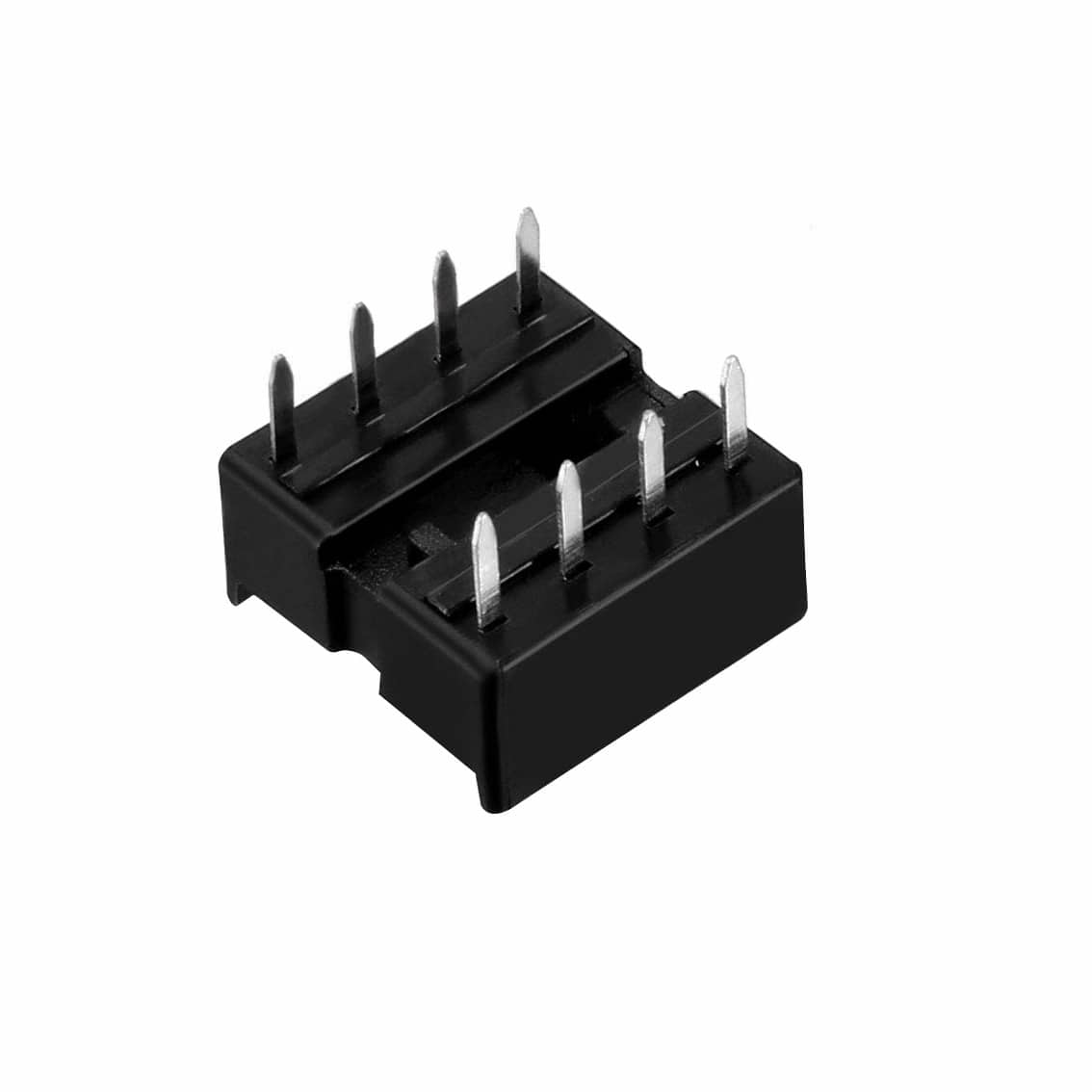

The 8 Pin 0.3 Inch DIL IC Socket – Pack of 5 is a compact and reliable solution for mounting 8-pin DIP integrated circuits. With a standard 7.62 mm (0.3 inch) row spacing and 2.54 mm pin pitch, it is perfectly suited for components such as the NE555 timer, ATtiny85, and various small op-amps or logic ICs. These sockets allow for safe, removable IC placement, protecting components from thermal stress during soldering and enabling easy replacement.
Each socket is made from flame-retardant thermoplastic and features high-quality phosphor bronze contacts with tin or gold plating for excellent conductivity and corrosion resistance. Designed for through-hole mounting, they are compatible with standard breadboards and PCBs. Whether you’re prototyping, assembling educational kits, or repairing circuits, this 5-pack of sockets ensures durable and serviceable IC installation.
Specifications:
- Pin Count: 8 pins
- Socket Type: Dual In-Line (DIL)
- Row Spacing: 7.62 mm (0.3 inch)
- Pin Pitch: 2.54 mm
- Mounting Type: Through-Hole
- Contact Material: Phosphor Bronze
- Contact Plating: Tin or Gold
- Housing Material: Thermoplastic or PBT UL94V-0
- Insertion Force: Low or standard
- Operating Temperature Range: -40°C to +105°C
- Pack Size: 5 sockets
Features:
- Protects 8-pin DIP ICs from heat damage during soldering
- Allows for easy removal and replacement of ICs
- Standard spacing for compatibility with most breadboards and PCBs
- Corrosion-resistant plated contacts ensure reliable electrical connection
- Perfect for NE555 timers, ATtiny85 microcontrollers, and small op-amps
Contents:
- 5 x 8 Pin 0.3 Inch DIL IC Sockets
